cast stretch film machine/stretch film making machine in asia

Specifications

stretch film making machine in asia
1,double layers co-extrusion
2,500mmX3 rolls
3,Capacity 220kgs/h
4,Auto winder

cast stretch film machine /Stretch Film Making Machine/ stretch film making machine in asia

1,Introduction of Stretch Film Machine

1) This machine uses LLDPE and LDPE as main material to make one side or two sides self-sticky stretch film,recycled LLDPE is available
2) This machine can make machine use film and hand use film,widely used in packing cargos
3) Stretch film has good shrinking memory and self-sticky function,prevent goods from loosening and collapsing during transportation
4) Perfect transparency and tensile strength of this film keep cargos clean and safe
2,Main Configuration of Stretch Film Machine
1) Extruders: 3 screws with diameter 90/55/55mm,L/D 30:1,screw and barel material 38CrMoAl
2) Loading: 3 sets automatic vacuum loaders
3) T Die: width 1800mm,5 layers extrusion A/C/B/C/A
4) Cooling: 2 pieces recycling water chiller
5) Control system: Delta PLC,touch screen

3,Performance of Stretch Film
1)Good tensile strength
2)Superior anti-pricking ability
3)High transparency
4)Good ductility and anti-impact strength
5)Stable sticky effect
4,Main Technical Parameters of Stretch Film Machine

1500mm Stretch Film Machine
MODEL	MS-90/70-1500	MS-90/55x2-1500
Screw diameter	70/90mm	55x55x90mm
L/D ratio of screw	30:1	30:1
Width of T-Die	1750mm	1750mm
Width of film	1500(500X3)mm	1500(500X3)mm
Thichness of film	0.01-0.05mm	0.01-0.05mm
Structure of film layers	A/B/A	A/B/C,A/C/B/C/A
Max output	200kg/h	220kg/h
Linear speed of machinery	150m/min	150m/min
Total power	125kw	140kw
Dimension(LxWxH)	12x2.5x3m	12x2.5x3m
Weight	9T	10T
1000mm Stretch Film Machine
MODEL	MS-70-1000	MS-70/55-1000
Screw diameter	70mm	55/70mm
L/D ratio of screw	30:1	30:1
Width of T-Die	1250mm	1250mm
Width of film	1000(500X2)mm	1000(500X2)mm
Thichness of film	0.01-0.05mm	0.01-0.05mm
Structure of film layers	A	A/B,A/B/A
Max output	90kg/h	110kg/h
Linear speed of machinery	50-100m/min	50-100m/min
Total power	50kw	80kw
Dimension(LxWxH)	8x4x3m	8x4x3m
Weight(about)	6T	7T
500mm Stretch Film Machine
MODEL	MS-55-500	MS-55/55-500
Screw diameter	55mm	55x2mm
L/D ratio of screw	30:1	30:1
Width of T-Die	650mm	650mm
Width of film	500mm	500mm
Thichness of film	0.01-0.05mm	0.01-0.05mm
Structure of film layers	A	A/B
Max output	25-40 kg/h	35-55kg/h
Linear speed of machinery	50-100m/min	50-100m/min
Total power	40kw	65kw
Dimension(LxWxH)	7x4x3m	7x4x3m
Weight(about)	3T	4T



5, Delivery Time of Stretch Film Machine
30 days after deposit

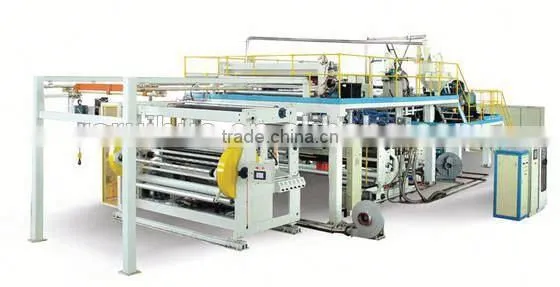

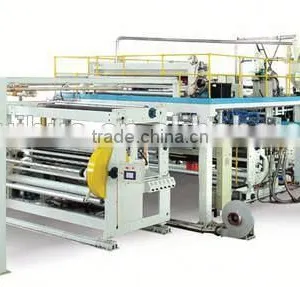

6,Detailed photos of Stretch Film Machine
