Home > Products > Stretch Film Machine > Single Layer Cling Stretch Film Blowing Machinery, PE Film Making Machine
Single Layer Cling Stretch Film Blowing Machinery, PE Film Making Machine
- NINGBO OR SHANGHAI
- T/T
You May Like
-
Cast Stretch Film Machine/plastic Film Machine
-
Cast Stretch Film Machine/extrusion Machine
-
Cast Stretch Film Machine/mini Plastic Extruder Machinery
-
Cast Stretch Film Machine/plastic Double Screw Extruder
-
Cast Stretch Film Machine/ldpe Film Blowing Machine
-
Cast Stretch Film Machine/waste Pp/pe Plastic Film Recycling Machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | Other, LLDPE.LDPE.PE etc | Screw Design | Other, single/double layer | |
| Automatic Grade | Automatic | Place of Origin | Zhejiang, China | |
| Brand Name | JINGDIANRUIHUA | Model Number | DFA-600 | |
| Voltage | 220V/50Hz | Power(W) | 11kw | |
| Dimension(L*W*H) | 6000*1500*2500mm | Weight | 3000KG, 2200kgs | |
| Certification | CE&ISO for Stretch Film Blowing Machinery | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Stretch Film Blowing Machinery
Use:
1. Stretch Film Blowing Machinery is usde for LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film.
2. The film has good tensile strength,anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.
3. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation
Main Technical Variables:
Model: | DF-55 | DF-65 |
Screw Diameter | 55mm | 65mm |
L/D ratio | 28:1 | 28:1 |
Rationl speed of screw stem | 10-120rpm | 10-120rpm |
Screw Barrel Material | 38CRMOLA | 38CRMOLA |
Die width | 750mm | 1250mm |
Film Width | 600mm | 1000mm |
Thickness | 0.015-0.04mm | 0.015-0.04mm |
Rollout Diameter | 300mm | 300mm |
Output | 30kg/h | 50kg/h |
Main Motor Power | 11kw | 15kw |
Heating Power | 15kw | 25kw |
Overall dimension: | 6000x1500 x2500mm | 6000x2000 x2500mm |
Total Weight | 3000kg | 4000kg |

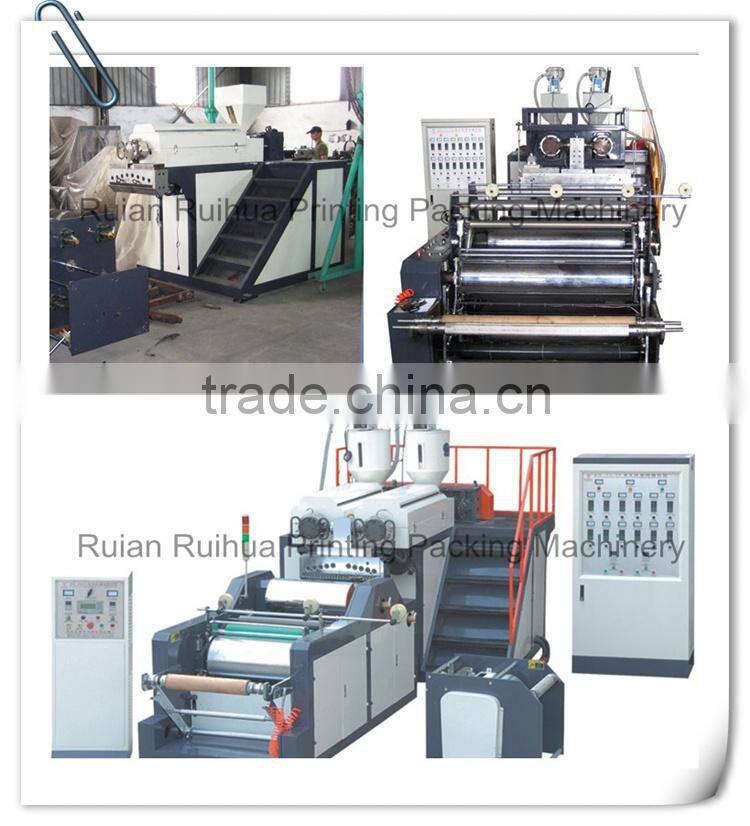

Machine:
Our factory:
More information needed, pls feel free to contact.
Contact Us
- Ruian Ruihua Printing Packing Machinery Co., Ltd.
- Contact nameFern Chen Chat Now
- Phone86-577-65165355
- AddressNanyu Crossing, Beiyu Industrial Zone, Shangwang Street
