cast stretch film machine /Stretch Film Making Machine/ packaging film machine
1,Introduction of packaging film machine
1) This machine uses LLDPE and LDPE as main material to make one side or two sides self-sticky stretch film,recycled LLDPE is available
2) This machine can make machine use film and hand use film,widely used in packing cargos
3) Stretch film has good shrinking memory and self-sticky function,prevent goods from loosening and collapsing during transportation
4) Perfect transparency and tensile strength of this film keep cargos clean and safe
2,Main Configuration of packaging film machine
1) Extruders: 3 screws with diameter 90/55/55mm,L/D 30:1,screw and barel material 38CrMoAl
2) Loading: 3 sets automatic vacuum loaders
3) T Die: width 1800mm,5 layers extrusion A/C/B/C/A
4) Cooling: 2 pieces recycling water chiller
5) Control system: Delta PLC,touch screen
3,Performance of packaging film machine
1)Good tensile strength
2)Superior anti-pricking ability
3)High transparency
4)Good ductility and anti-impact strength
5)Stable sticky effect
4,Main Technical Parameters of packaging film machine
| 1500mm packaging film machine | ||
| MODEL | MS-90/70-1500 | MS-90/55x2-1500 |
| Screw diameter | 70/90mm | 55x55x90mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 1750mm | 1750mm |
| Width of film | 1500(500X3)mm | 1500(500X3)mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A/B/A | A/B/C,A/C/B/C/A |
| Max output | 200kg/h | 220kg/h |
| Linear speed of machinery | 150m/min | 150m/min |
| Total power | 125kw | 140kw |
| Dimension(LxWxH) | 12x2.5x3m | 12x2.5x3m |
| Weight | 9T | 10T |
| 1000mm packaging film machine | ||
| MODEL | MS-70-1000 | MS-70/55-1000 |
| Screw diameter | 70mm | 55/70mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 1250mm | 1250mm |
| Width of film | 1000(500X2)mm | 1000(500X2)mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A | A/B,A/B/A |
| Max output | 90kg/h | 110kg/h |
| Linear speed of machinery | 50-100m/min | 50-100m/min |
| Total power | 50kw | 80kw |
| Dimension(LxWxH) | 8x4x3m | 8x4x3m |
| Weight(about) | 6T | 7T |
| 500mm packaging film machine | ||
| MODEL | MS-55-500 | MS-55/55-500 |
| Screw diameter | 55mm | 55x2mm |
| L/D ratio of screw | 30:1 | 30:1 |
| Width of T-Die | 650mm | 650mm |
| Width of film | 500mm | 500mm |
| Thichness of film | 0.01-0.05mm | 0.01-0.05mm |
| Structure of film layers | A | A/B |
| Max output | 25-40 kg/h | 35-55kg/h |
| Linear speed of machinery | 50-100m/min | 50-100m/min |
| Total power | 40kw | 65kw |
| Dimension(LxWxH) | 7x4x3m | 7x4x3m |
| Weight(about) | 3T | 4T |
5, Delivery Time of packaging film machine
30 days after deposit

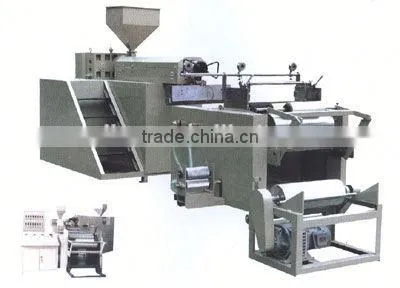

6,Detailed photos of packaging film machine
- Understand your needs
- Individual machine is designed upon user’s need
- In-time service
- On-line / overseas technical support
- Fast delivery
- Always here for your service
