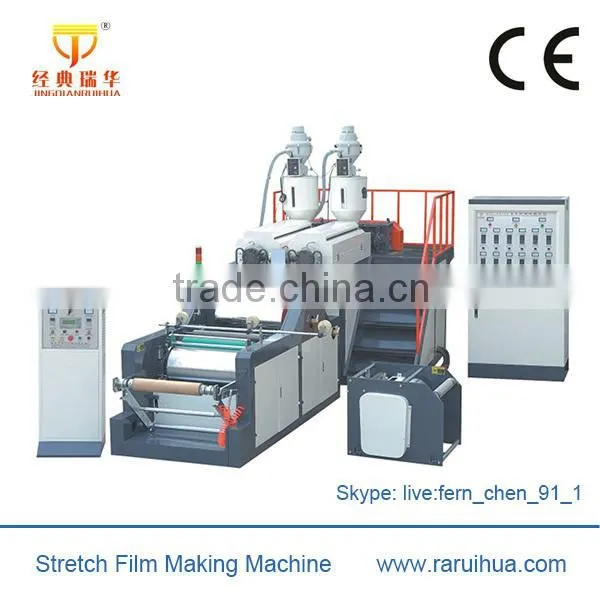

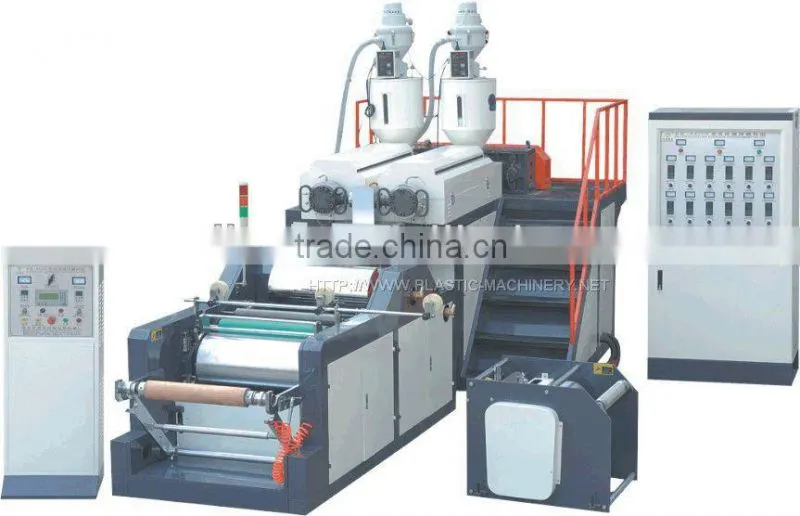

Double Layer Stretch Film Extruder Machine
Use:
1.This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film.
2.The film has good tensile strength,anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust.
3.The transparency and tensile strength of this product can make the packaging beautiful, economical and practical.
4.The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.
Main Technical Parameter: | ||
Model: |
DF-500 Stretch Film Machine |
DF-1000 Stretch Film Machine |
Screw Diameter |
50mm x2 |
55mm x2 |
L/D ratio |
28:1 |
28:1 |
Rational Speed of Screw Stem |
10-120rpm |
10-120rpm |
Screw Barrel Material |
38CRMOLA |
38CRMOLA |
Die width |
750mm |
1250mm |
Film Width |
500mm |
500-1000mm |
Thickness |
0.015-0.05mm |
0.015-0.05mm |
Rollout Diameter |
300mm |
300mm |
Output |
20-40kg/h |
50-70kg/h |
Main Motor Power |
7.5kwx2 |
11kwx2 |
Heating Power |
30kw |
45kw |
Overall dimension: |
6000x2000 x2600mm |
6000x2600 x2600mm |
Total Weight |
3500kg |
4500kg |
