Home > Products > Slitting Rewinding Machine > Slitting Machine for PVC/PE/OPP/BOPP/Paper

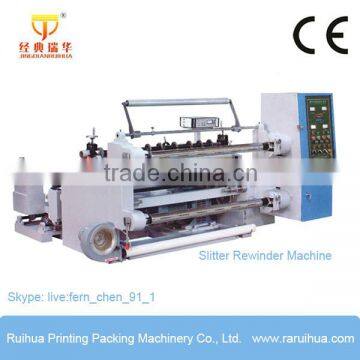

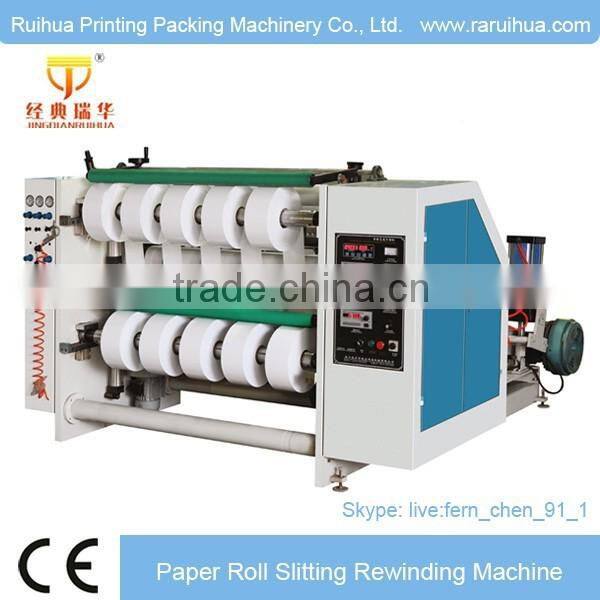

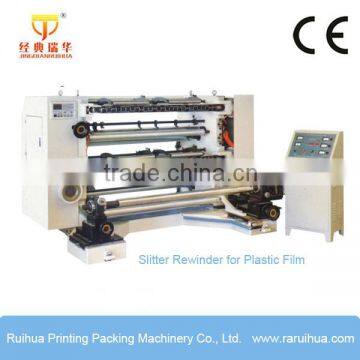

Slitting Machine for PVC/PE/OPP/BOPP/Paper
US$ 8,000 - 15,000
/ Set
1 Set(Min. Order)
- Ningbo/Shanghai port
- T/T Credit Card PayPal
You May Like
-
PLC Control Big Roll to Small Roll Thermal Paper Cutting Machine
-
Surface Rewinding Aluminum Foil Baking Paper Cutter Rewinder Machine
-
Machine for Thermal Paper Roll Making From Europe
-
Paper Roll Used Slitter Rewinder Machine
-
CE Certificate Automatic Used Paper Slitter Rewinder Machine
-
High Precision Thin Paper Coils Surface Slitter Rewinder Machine
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | JINGDIANRUIHUA | Model Number | LFQ-1100 | |
| Voltage | 220V/50Hz | Power(W) | 2.2kw | |
| Dimension(L*W*H) | 2000*1110*1400mm | Weight | 1200kg | |
| Certification | CE&ISO for Slitting Machine for PVC/PE/OPP/BOPP/Paper | Warranty | One year guarantee time | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

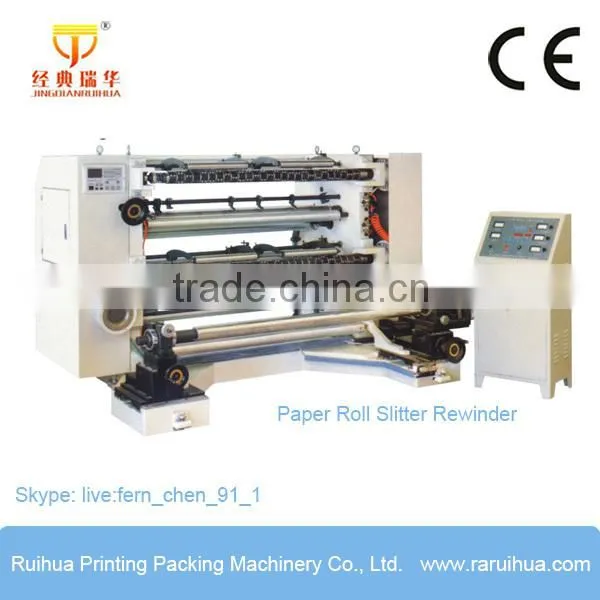

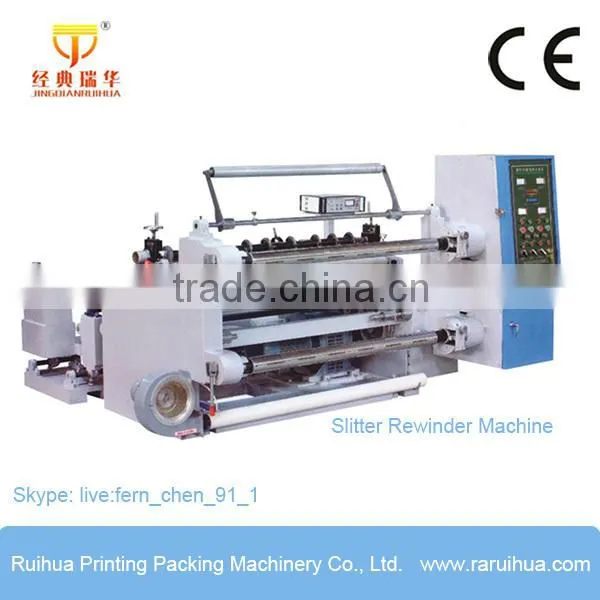

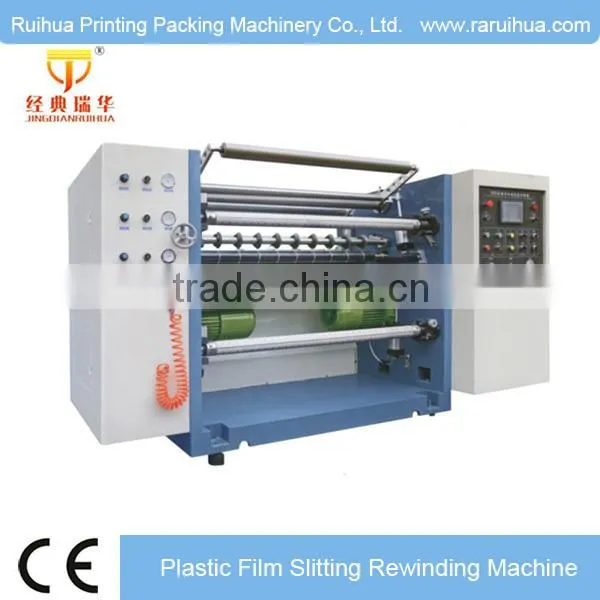

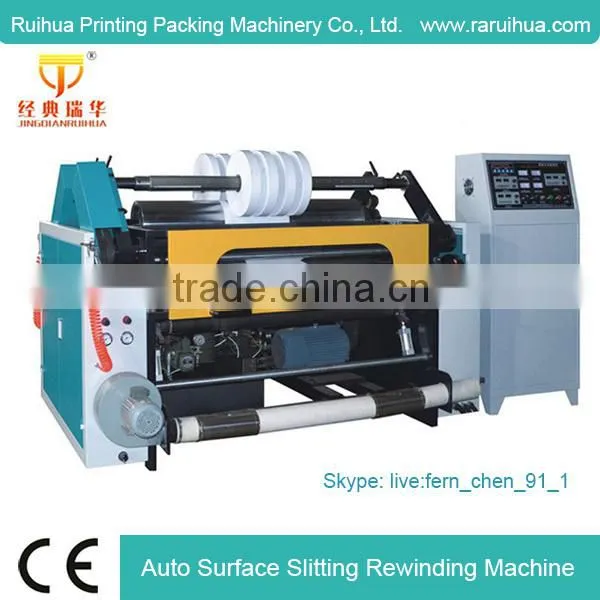

Slitting Machine for PVC/PE/OPP/BOPP/Paper
Use:
Slitting Machine for PVC/PE/OPP/BOPP/Paper is suitable for various roll materials slitting rewinding, such as various film(BOPP, PET, CPP, PE, PVC), non woven cloth, regular paper, kraft paper, self adhesive labels, band paper, and other kinds of paper, etc.
Characteristics:
1. Slitting Machine for PVC/PE/OPP/BOPP/Paper is a kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of the machine.
2. Independent master control screen, more flex ible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable fortracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Slitting Machine for PVC/PE/OPP/BOPP/Paper adopts magnetic clutch for rewinding tension control.
6. Slitting Machine for PVC/PE/OPP/BOPP/Paper is with waste edge trimming device for waste roll edge to trim.
7. Slitting Machine for PVC/PE/OPP/BOPP/Paper is with automatic meter counter for working length tracking. When reached the preset length, machine will stop and alarm automatically.
1. Slitting Machine for PVC/PE/OPP/BOPP/Paper is a kind of vertical separating and cutting machine. Rolling and releasing can be in front of or at the back of the machine.
2. Independent master control screen, more flex ible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable fortracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Slitting Machine for PVC/PE/OPP/BOPP/Paper adopts magnetic clutch for rewinding tension control.
6. Slitting Machine for PVC/PE/OPP/BOPP/Paper is with waste edge trimming device for waste roll edge to trim.
7. Slitting Machine for PVC/PE/OPP/BOPP/Paper is with automatic meter counter for working length tracking. When reached the preset length, machine will stop and alarm automatically.
Type | LFQ-1100 |
Max. Width of Mother Roll | 1000mm |
Max. Diameter of Mother Roll | Φ1400mm |
Width of final Roll | 30~1000mm |
Slitting and Rewinding Speed | 5~160m/min |
Tolerance of EPC | <±0.5mm |
Total Power | 3.5kw |
Weight of Machine | 1500kg |
Overall Dimension | 2400*1110*1400mm |
Company Information

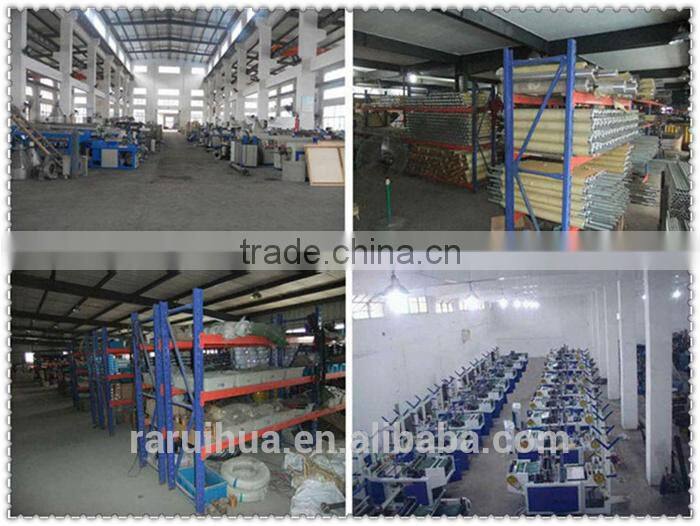

Our working factory:
Certificate:

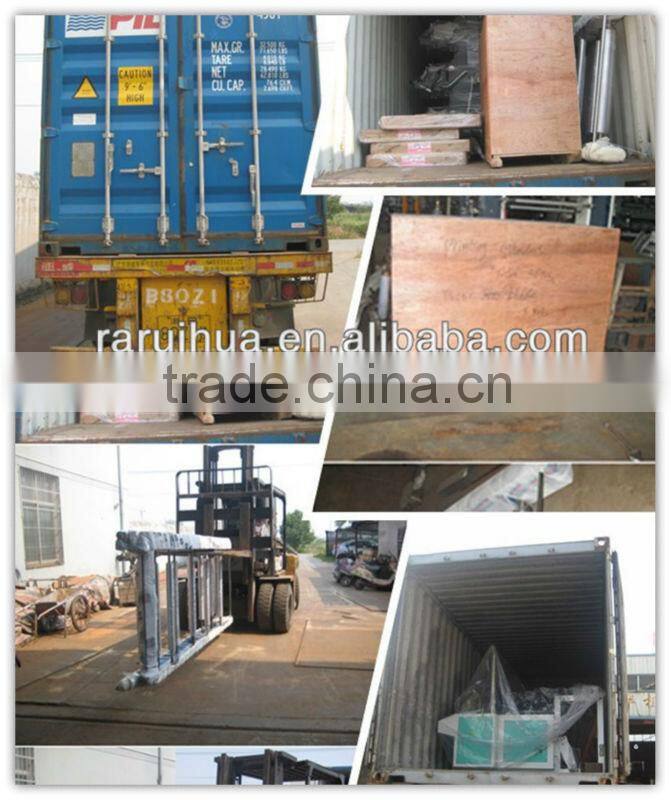

Packaging & Shipping

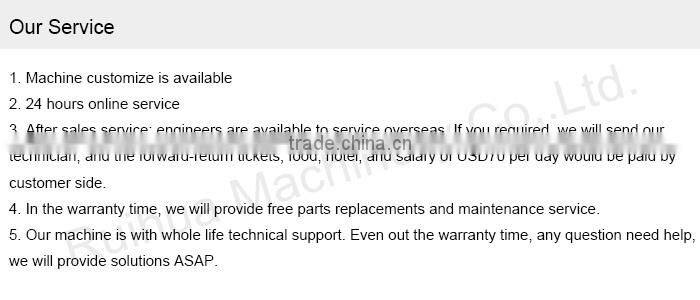

Our Services

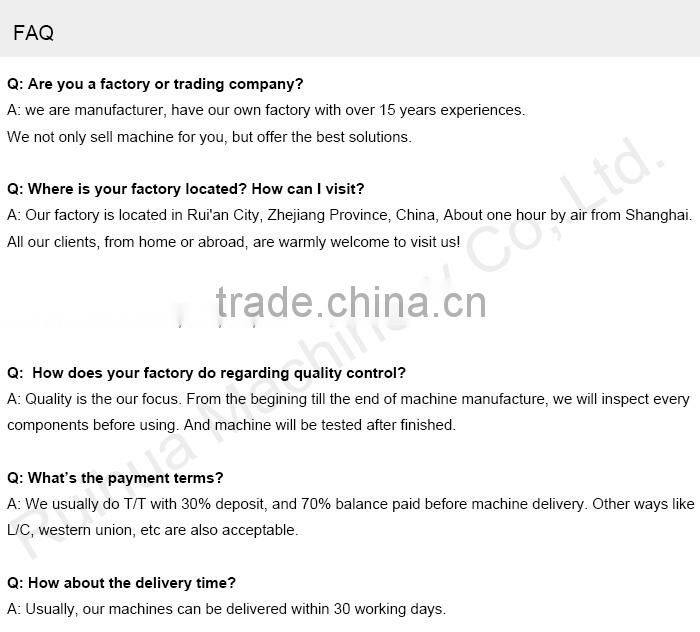

FAQ
More details, pls contact freely.
Contact Us
- Ruian Ruihua Printing Packing Machinery Co., Ltd.
- Contact nameFern Chen Chat Now
- Phone86-577-65165355
- AddressNanyu Crossing, Beiyu Industrial Zone, Shangwang Street
