Specifications

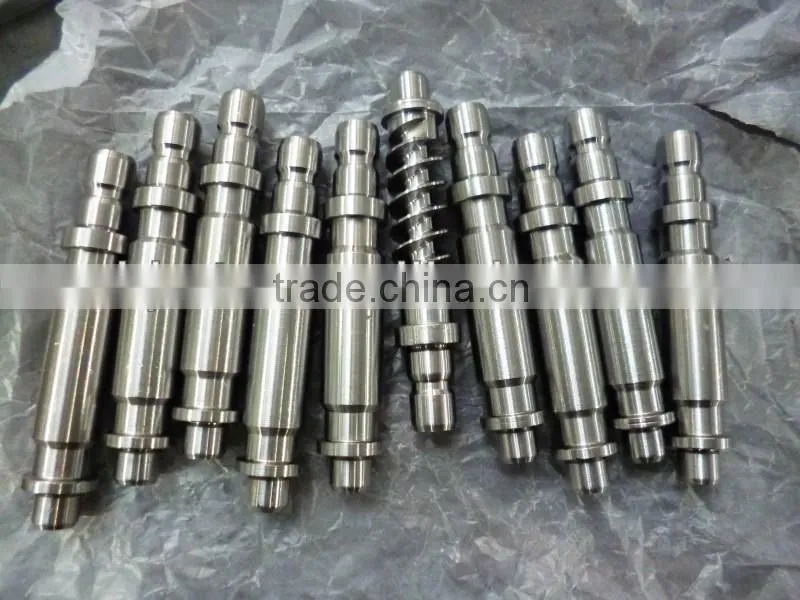

It is especially developed for efficient production of small worms used in automobile, reducer, etc.for types of ZA, ZN, ZI,ZK.This machine is especially developed for efficient production of small worms used in automobile, reducer, medical,
apparatus & instrument industries, for worm types of ZA, ZA, ZI and ZK, worm dimensions of 50mm in diameter, 250mm in
length.

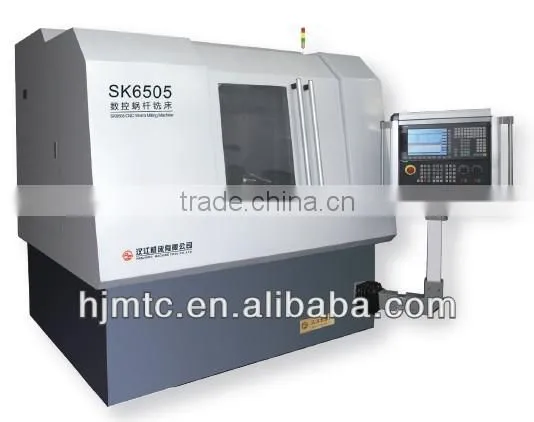

SK6505 CNC worm shaft milling machine

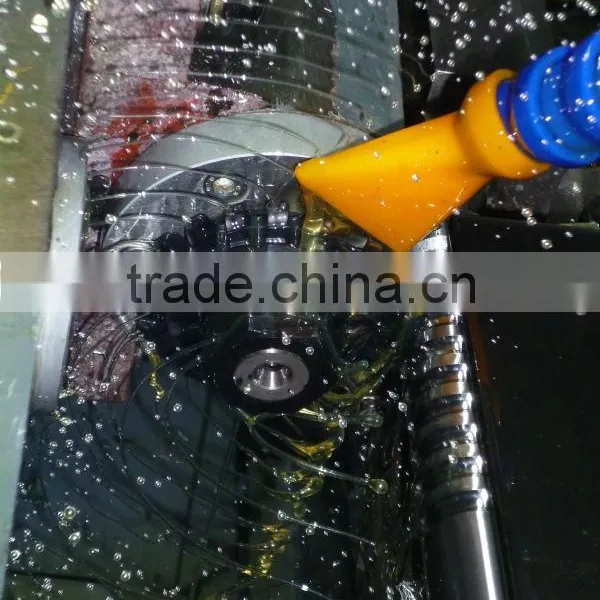

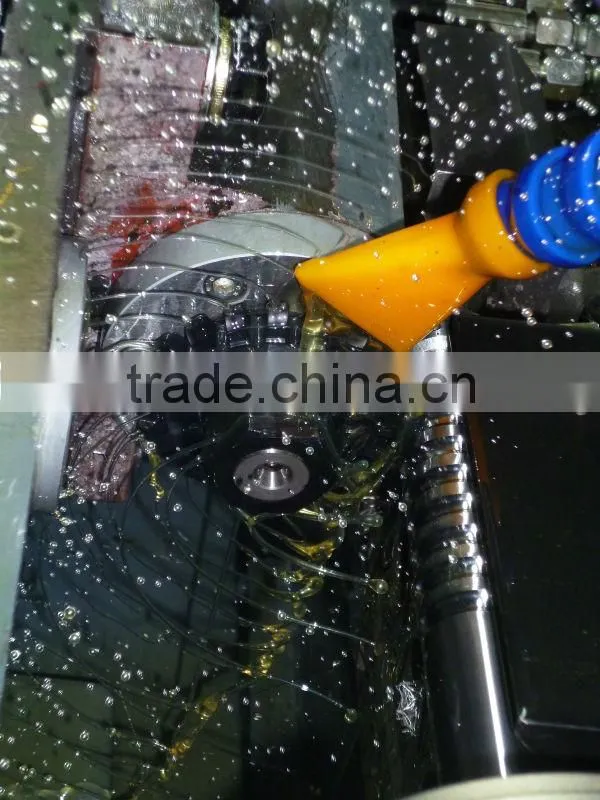

cutting a workpiece

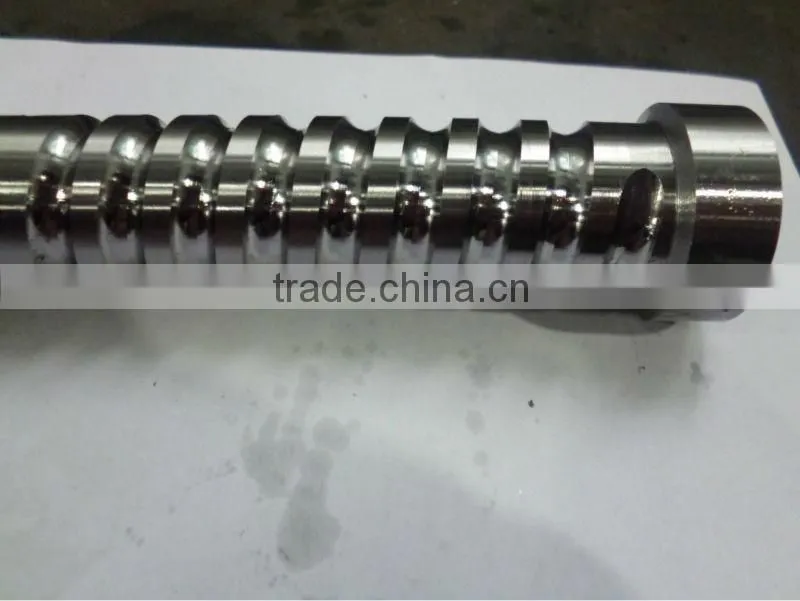

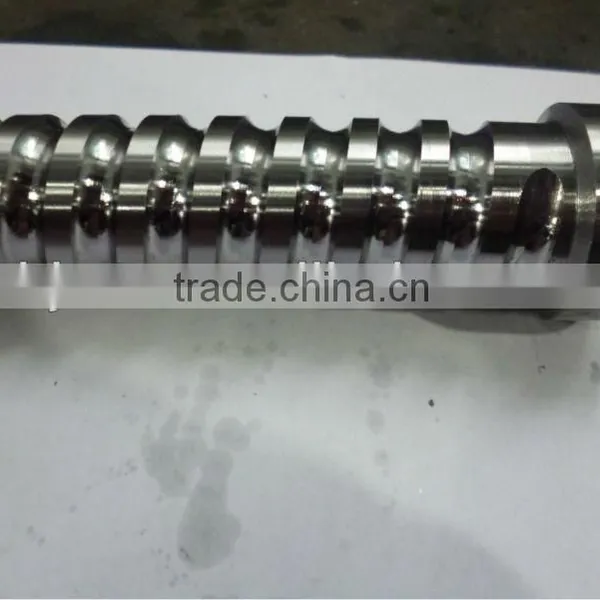

Fine surface cut on SK6505

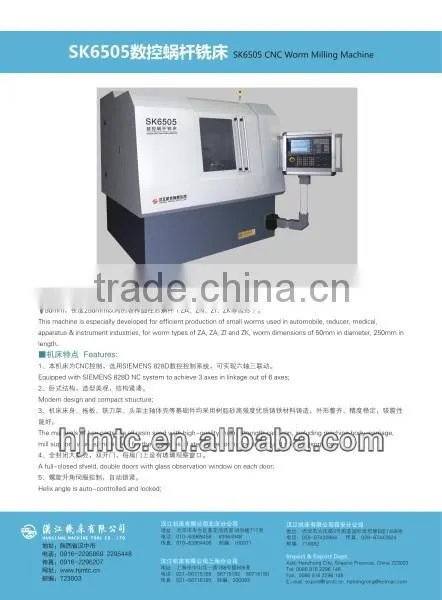

Features:
1. Equipped with SIEMENS 828D NC system to achieve 3 axes in linkage out of 6 axes;
(Quoted from Siemens AG)
2. Modern design and compact structure;
3.The materials of key parts are all resin sand with high-quality, high-strength cast iron, including machine body, carriage,
mill support, work spindle shell for the purposes of steady performance and sound shock absorption;
4.A full-closed shield, double doors with glass observation window on each door;
5. Helix angle is auto-controlled and locked;

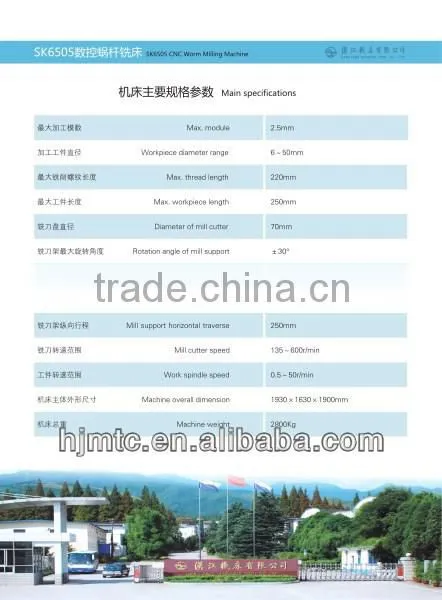

Main Specificaitions:
Max. module |
2.5mm |
Workpiece diameter range |
6~50mm |
Max. thread length |
220mm |
Max. workpiece length |
250mm |
Diameter of mill cutter |
70mm |
Rotation angle of mill support |
±30° |
Tailstock traverse |
220mm |
Mill support cross traverse |
100mm |
Mill support horizontal traverse |
250mm |
Mill cutter speed |
135~600r/min |
Work spindle speed |
0.5~50r/min |
Machine overall dimension |
1930×1630×1900mm |
Machine weight |
2800Kg |
Seaworthy pakcage & Shipping from Shanghai
Engineers are avialable to service the machine. Techinical support before sale, in sale and after sale.
