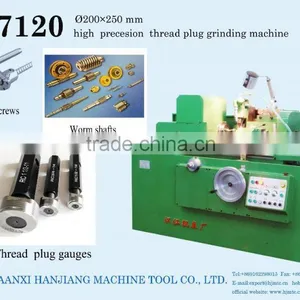

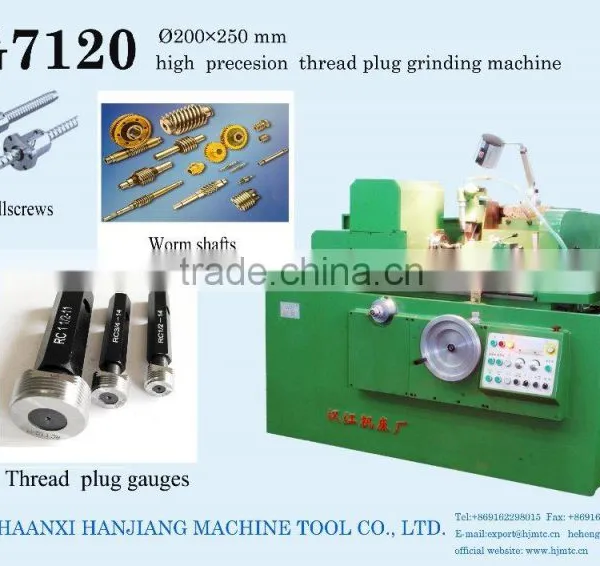

HJMTC SG7120 Plug Gauge Grinding Machine

Name: HJMTC SG7120 Plug Gauge Grinding Machine
Brand: HJMT
SKU: 112369053
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

CNC

Shaanxi Hanjiang Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 200 mm

Max. Grinding Length 250 mm

Place of Origin Shaanxi, China

Brand Name HJMT

Model Number SG7120

Voltage Customer's Requirement

Power(W) 15KW(app.)

Dimension(L*W*H) 1850*2090*1435 mm

Weight 4000kg

Certification ISO9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications				Model	SG7120
Specifications				Type	Φ200x250
Max. workpiece diameter				mm	Φ200
Max. Center distance				mm	250
Center height				mm	120
Thread diameter ground				mm	Φ1-Φ120
Max. thread length ground				mm	200
Thread pitch ground			Metric	mm	0.2-6
Thread pitch ground			British	Teeth/inch	102~4
Max. helix angle ground					±12°
Work spindle speed			For grinding (stepless)	r/min	5~50
Work spindle speed			For rapid rotation	r/min	200
Center taper of headstock & tailstock					Morse No.4
Cross traverse of wheel stock				mm	110
Rapid approach & withdrawal of wheel stock				mm	15
Wheel spindle speed				r/min	2150~2860
Wheel periphery speed				m/s	45~60
Wheel size			O.D	mm	Φ300~Φ400
			I.D	mm	Φ203
			Width	mm	10
Overall dimension (LxWxH)				mm	1850x2090x1435
Machine Weight		KG		3000	4500
Working accuracies	Helix accuracies	On one revolution		mm	0.0025
		On 25mm		mm	0.0035
		On 100mm		mm	0.0045
		Roundness on effective diameter		mm	0.003
		Surface roughness			Ra0.2
		Half angle accuracy on profile section			±10’
