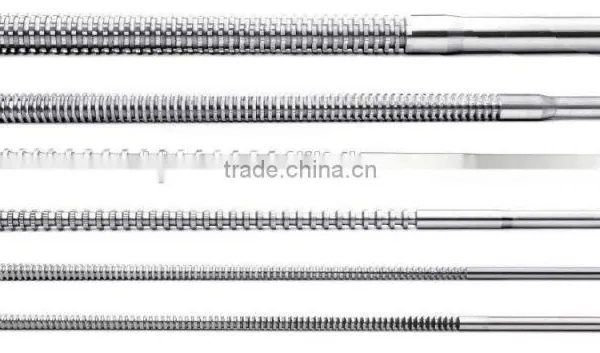

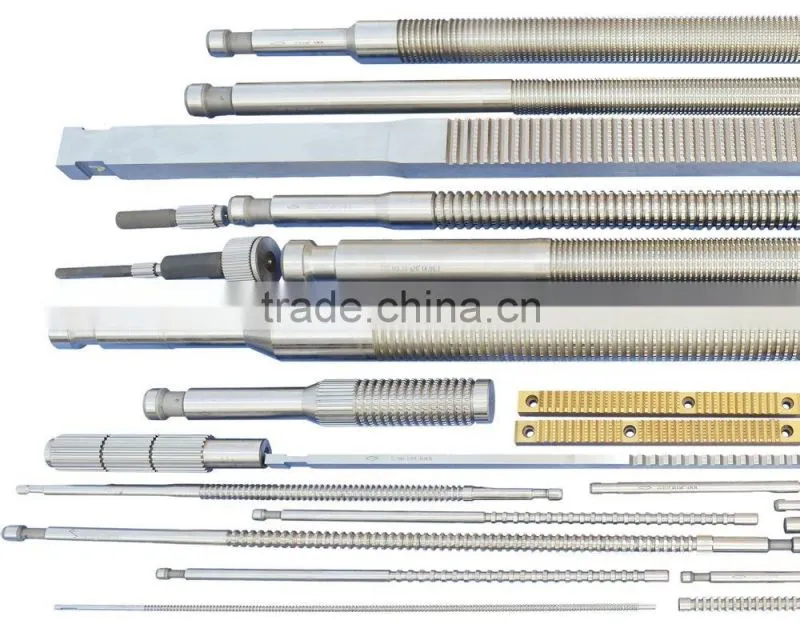

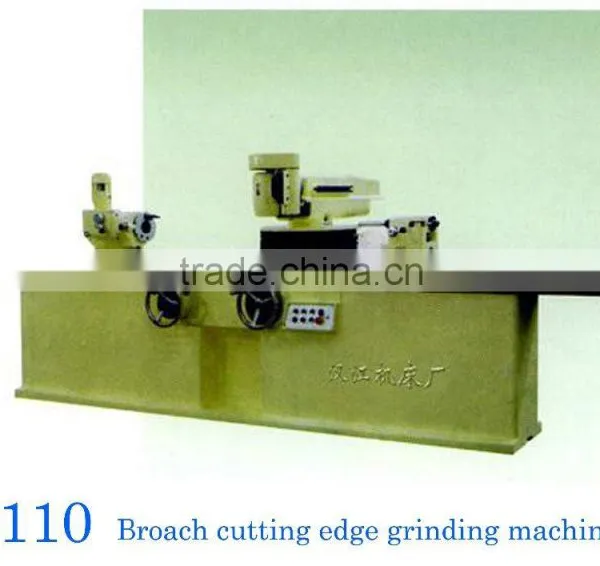

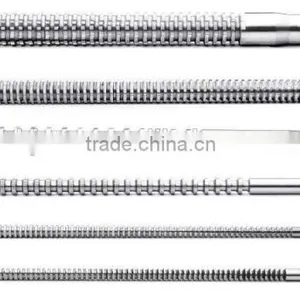

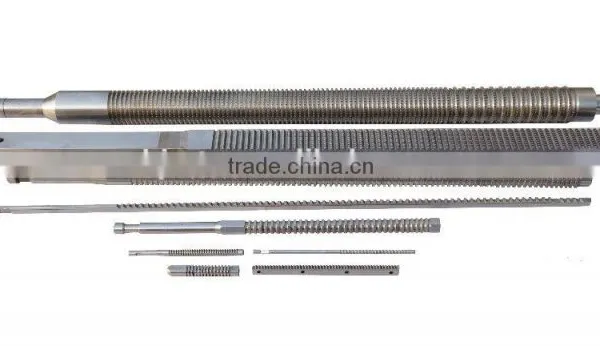

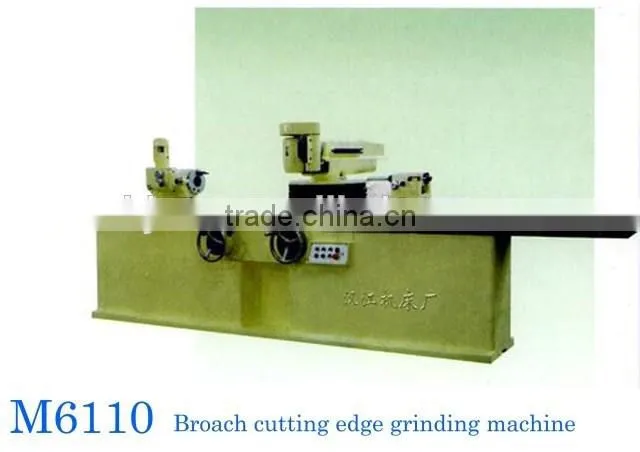

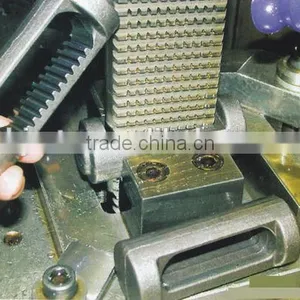

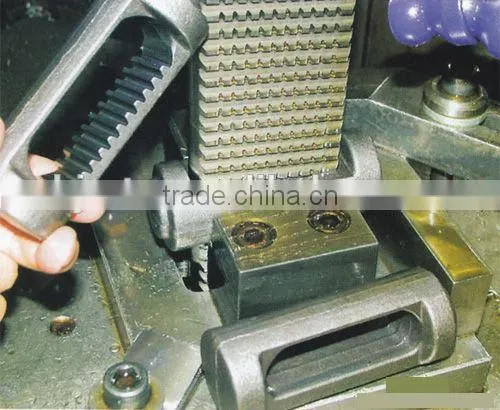

M6110 is specially developed for grinding the cutting edge of the various broaches, e.g.: round broach, flat broach, splineshaft broach and keyway broach, etc.
Features:
1. The machine can grind the front angle, rear angle and the back of an edge of various
types of broaches.
2. Customised fixture or electric magnetic chuck(extra order) is applied to grind the flat
broach.
3.Wide process range, high working accuracy, easy operation and stable performance.
4.The traverse of the rectangle working table is operated by the linear motion
guides. The flat and V-type guide ways are supported by the roller linear motion
guides.
Specifications:
Model |
M6110×1500 |
||
|
main specification
|
max. broach diameter ground |
mm |
Ø100 |
center height |
mm |
150 |
|
distance between centers |
mm |
1700 |
|
max. broach length ground |
mm |
1500 |
|
|
max. width (a flat broach ) |
mm |
160 |
|
|
working table
|
working table size
|
mm |
2400×2000 |
|
handwheel scale per graduation min. movement(low speed) |
|
0/0.2 |
|
|
Headstock
|
spindle hole taper |
|
Morse 3# |
|
spindle speed (idling)
|
r.p.m. |
60,180,310 |
|
|
wheel head
|
spindle hole taper |
|
Morse 3# |
wheel speed |
r.p.m. |
6000 |
|
max. vertical traverse |
mm |
280 |
|
travel speed(by motor) |
mm/min. |
350 |
|
min. distance of wheel center line and working table |
mm |
160 |
|
max. cross traverse |
mm |
190 |
|
swivel in horizontal |
|
±20° |
|
swivel in vertical |
|
90° |
|
|
Tailstock
|
spindle hole taper |
|
Morse 3# |
traverse of the sleeve |
mm |
32 |
|
|
motor capacity
|
wheel motor |
KW |
1.1 |
standing column motor |
KW |
0.55 |
|
headstock motor |
KW |
0.55 |
|
machine size |
L×W×H |
mm |
4470×1310×1485 |
machine weight |
Kg |
2500 |
|
Working accuracy | |||
roughness of front edge of a round broach |
8 |
||
Accessories | |||
steady rest, extended spindle, grinding wheel, leveling wedges, spanners | |||
Optional accessories (order as requested) | |||
|
e-spindle wheel head; high speed wheel head; cross feed digital readout.
| |||
Fumigated wooden seaworthy package for export
Our technical support teams provide you the professional technical consulting and necessary service before sale , in sale and post sale.
Shaanxi Hanjiang Machine Tool Co.,Ltd. is a company that had been engaged in various precious thread grinding since the year of 1969.
In the past decades, we developed various types of thread grinding machines for the customers around the world. The machines were widely accepted and re-purchased.
Customers from the world are welcomed to enjoy the high quality machine and service!
