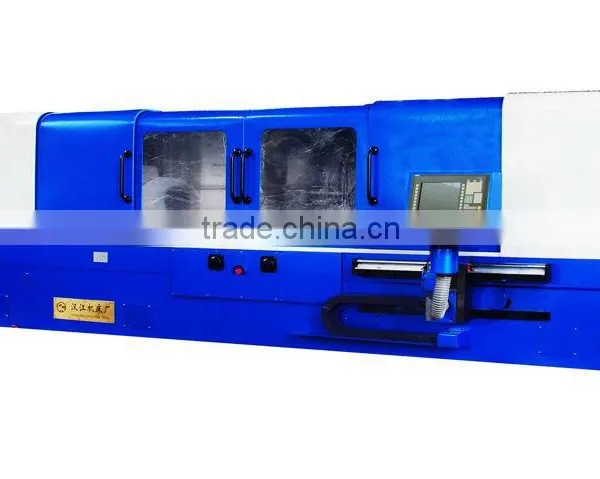

Help CenterHJMTC SK7732 Series CNC Worm Grinding Machine
Related Products
Specifications

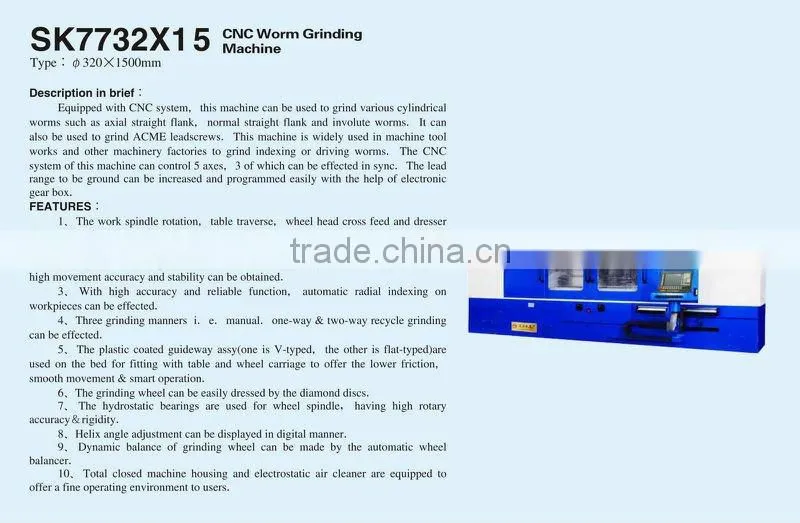

Equipped with CNC sytem,it can be used to grind worms with ZK, ZI, ZA, ZN profiles, ACME leadscrews.
Main specifications:
1. Max. diameter of workpiece: 320mm
2. Max. center distance: 1500mm
3. Center height: 180mm
4. Max. diameter ground: 200mm
5. Min. diameter ground: 10mm
6. Max. traverse of table: 1000mm
7. Pitch ground
Module: 1.5~20
Metric: 3~24mm
British: 2/1”~6/1”
8. Max. lead ground: 300mm
9. Max. helix angle ground: ±40°
10. Number of starts: 1~99 (free)
11.Work spindle speed: for indexing 4
12.Table traverse speed: 0-3m/min
13. Cross feed speed: 0-3m/min
14.Dresser feed speed: 0-1m/min
15. Resolution:
X,Y, Z axis: 0.001
C axis: 0.001°
16.Cross traverse of wheel stock: 150mm
17.Rapid approach & withdrawal of wheel stock: 50mm
18.Wheel spindle speed: 1340,1480
19.Wheel size
O.Dx I.D: 400~500mm
Width: 25, 32,40mm
20. Machine dimensions: 4390mmx2635mmx2385mm
