Sponge Cutting Machine
US$ 25,500 - 51,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, foam cutting machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Product Type
Other, foam cutting machine
Place of Origin
Zhejiang, China
Brand Name
HAIEN
Model Number
CNC-OBH
Voltage
380v
Power(W)
8~10kw
Dimension(L*W*H)
L6000*W2000*H1200mm
Weight
2800kgs
Certification
CE, UL
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

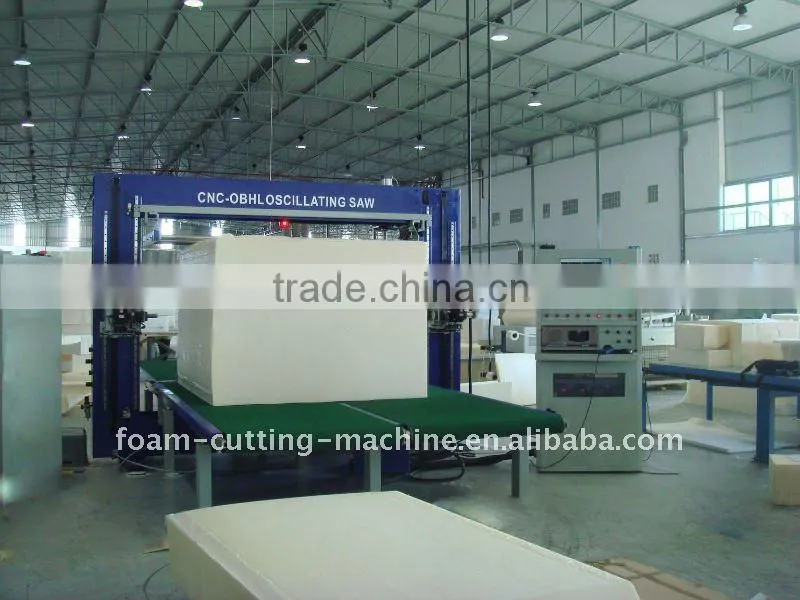

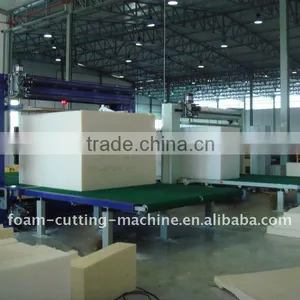

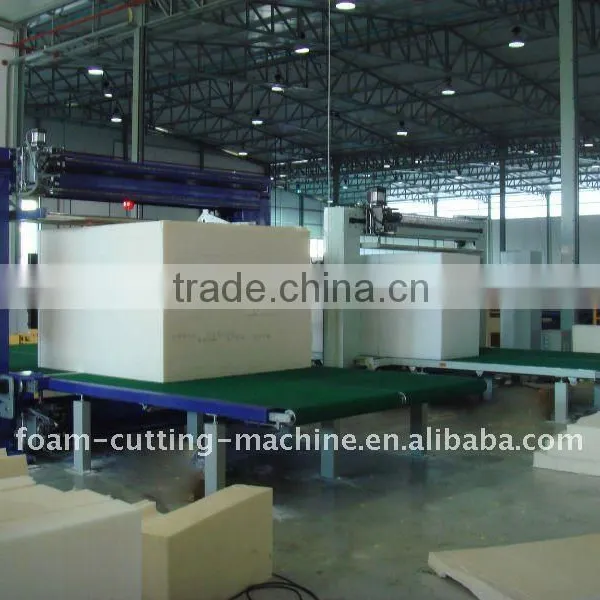

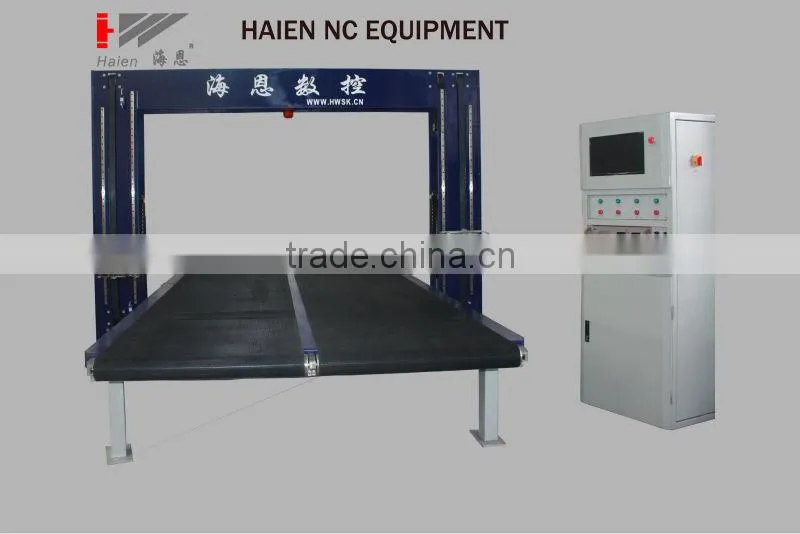

Automatic Sponge Cutting Machine
type: CNC-OBHL (horizontal series )
CNC-OBVL(vertical series)
MAIN Parameters:
| parameter/model | CNC-OBHL | CNC-OBH | CNC-OBVL |
| Cutting speed(m/min) | 0~8 | 0~8 | 0~8 |
| Speed of blade( m/min) | 0~5 | 0~5 | 0~5 |
| Cutting accuracy(mm) | 30+/-0.5 | 30+/-0.5 | 30+/-0.5 |
| Blade length(mm) | H2390,V1300 | H2390 | V1300 |
| Driving Voltage | 220V | 220V | 220V |
| Air-Pressure | ≤6MPa | ≤6MPa | ≤6MPa |
| CNC | PC/Industrial Computer | PC/Industrial Computer | PC/Industrial Computer |
| Displayer | 17" | 17" | 17" |
| Programmable Axis | X/Y-A | X/Y-A | X/Y-A |
| Computer System | windows XP or above | windows XP or above | windows XP or above |
| Power | 10KW,~380V,50HZ | 8KW,~380V,50HZ | 8KW,~380V,50HZ |
| Total Weigh(kg) | 2800 | 2350 | 2500 |
| Block Size(max mm) | 2500*2000*1200 | 2500*2000*1200 | 2500*2000*1200 |
| Dimension(mm) | 6000*3450*2600 | 6000*3450*2600 | 6000*3450*2600 |
Packing&Shipping:
Quality Certificate:
Why choose HAIEN:
Since 2002, being the leading manufacturing CNC automatic foam cutting machine in China, HAIEN offers the highest price performance foam cutting machine. Every Hison product was marked as economic, environmental and easy maintenance.
With 12 years history in the industry, HAIEN built a high reputation in South America, Eastern Europe, Southeast Asia, and Oceania regions. The HAIEN NC EQUIPMENT MANUFACURING CO.,LTD won the customers for our good service and advenced technolog.
welcome to HAIEN!
