Fast Wire Contour Foam Cutter(vertical Type)

Fast Wire Contour Foam Cutter(vertical Type) thumbnail-1
Fast Wire Contour Foam Cutter(vertical Type) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, foam cutter
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Cixi Haien NC Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, foam cutter
Place of Origin Zhejiang, China
Brand Name hwsk/Haien
Model Number HW-FM15V
Certification CE



CNC FAST WIRE VERTICAL SERIES CONTOUR FOAM CUTTER



Haien CNC fastwire vertical contour foam cutter use a high speed abrasive wire,running in excess of 80m/sec speed,Ensuring that it can processs almost all foams avaible on the fast wire moving locus is controled by precision step motor,Teamed with the powerful Haien Profile software,the Fastwire is equally at home with profiling small prototype runs to large production runs,guaranteeing improvedyield,quality and repeatability each time.



Fastwire machine can profile a wide range of rigid and flexible foams, as following:

1. Flexible and rigid polyurethane(PU)foams

2. EVA foam

3. Expanded Polystyrene(EPS)foam

4. Rockwool

5. Poly-ethylene(PE )foam

6. Rebond or chip foam

7. Phenolics foams( conditions apply)

8. PVC foam.

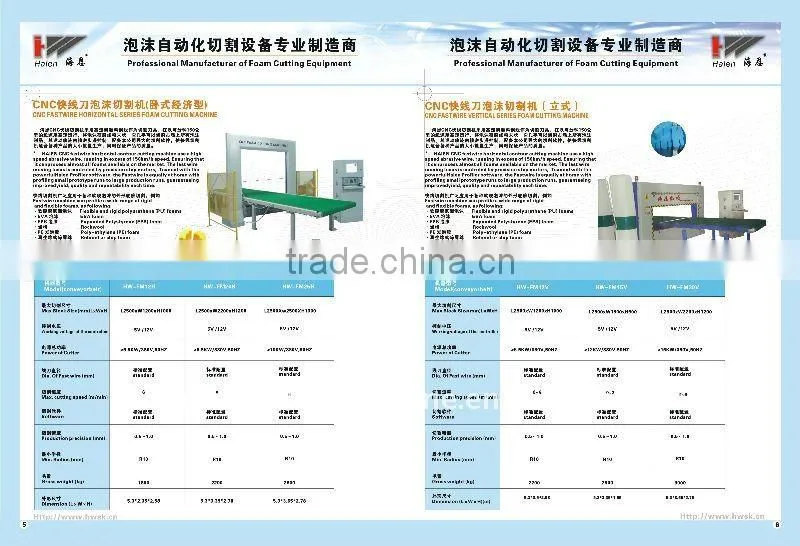

Technical Parameter For Vertical Contour Foam Cutter



Model (conveyorbelt)

HW-FM12V

HW-FM15V

HW-FM20V

Max Block size(mm)L*W*H

L2500*W1200*H1000

L2500*W1500*H500

L2500*W2500*H1200

Working voltage of the controller

5V/12V

5V/12

5V/12

Power of Cutter

<6.5KW/380W,50HZ

<8.5KW/380W,50HZ

<10KW/380W,50HZ

Dia.Of Fast wire(mm)

Standard

Standard

Standard

Max.cutting speed(m/min)

0~10

0~10

0~10

Software

Standard

Standard

Standard

Production precision(mm)

0.5~1.0

0.5~1.0

0.5~1.0

Min.Radius(mm)

R10

R10

R10

Gross weight

2200

2500

3000

Dimension(L*W*H)

5.3*3.5*2.58

5.3*3.35*1.85

5.3*3.65*2.78

fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)

fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)fast wire contour foam cutter(vertical type)

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Cixi Haien NC Equipment Manufacturing Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2005
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
