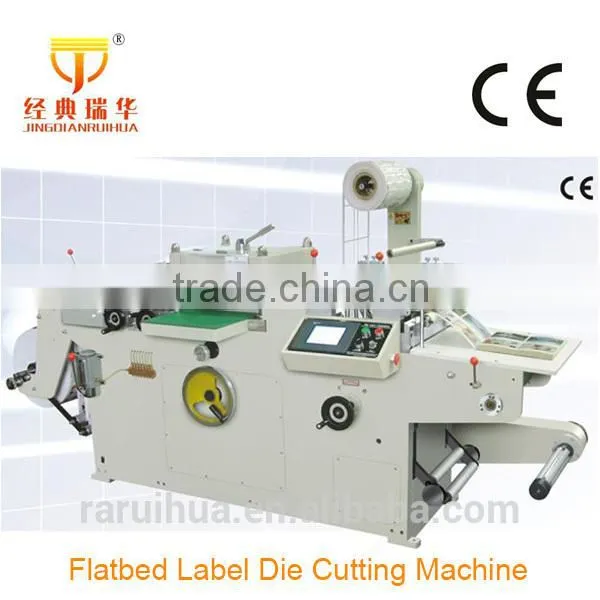

Automatic Label Die Cutting Machine
Introduction:
1. Automatic Label Die Cutting Machine is a high precision flat bed die cutter.
2. Material feeding & cutting are controlled by servo motor.
3. Two sides of printed label & longitudinal direction are positioned by three photo-electrical eyes.
4. Cutting, waste wind up, sheeting or rewinding can be completed in one pass.
5. Automatic Label Die Cutting Machine is suitable for cutting pressure sensitive label, Decron label and holographic anti-counterfeiting label.
6. Automatic Label Die Cutting Machine is an accessary equipment for fully automatic rotory letter press, flexo printing press, rotory sick screen press and roto-gravure press.
7. Tracking system-automatic die-cutting-waste wind up-automatic sheeting-automatic rewinding are finished in a line.
Main Technical Parameters: | |
Cutting speed |
20-170(cycle/min) |
Max.unwind diameter |
500mm |
Max.Web width |
320mm |
Max.die cutting width |
300mm |
Max.die cutting length |
290mm |
Positioning accuracy |
± 0.1mm |
Total power |
2.2kw |
Power Voltage |
220v ± 10% |
Machine weight |
(About)1500kg |
Overall dimensions(L*W*H) |
2800*1100*1600mm |
Our working factory:
