Specifications
TOP UP's saddle insert clip with Anchor Insert Clip of plumbing material|
TOP UP Saddle Clip with Anchor Insert clip of pipe holder |
|
Quick and easy to attach! Won't loosen! Simple one-push type!
|
|
We offer 44 items across 10 different series, all perfect for reducing construction time. |
|
|
| specification | saddle | |||||||||
| Type | comformity | Insertion | capacity | resin tubing | sheathed | combined | plastic | VVF | gas | |
| outer diameter | depth(mm) | (kg) | warm 5mm | warm10mm | pipes | ducts | flexible | (bundle) | line | |
| ESS 18 | 15-21 | over30 | 3 | × | × | 16 | 14 16 | 14 16 | 3 | 8 10 15 |
| ESS 22 | 21-26 | over30 | 3 | 10 13 | 18 22 | 16 22 | 16 | 4 | 1520 | |
| ESS 28 | 27-34 | over30 | 3 | 13 16 20 | 10 13 16 | 22 25 28 | 22 28 | 22 | 6 | 25 |
•Clip ESS
15-34mm diameter, withstands up to 3kg.Single type.
Use on covered resin tubing, VVF cable and VVF cable at Shaft room, Ceiling cable, SP, plastic flexible, and flexible gas lines
ESS type is good for cable and pipes construct of dark and narrow shaft room.
Contruct is easy to use for fook only.
Its possible to connect type ESS and EC.
Plug length / 25mm Single type Compatible
• Features
1,Easy to use requires just a 6mm bit
2,Fast Just use your finger to insert the one-push saddle
3,Won't looses
There is no need to affix a curl, anchor, or pin
* Plug can pull weights of over 20kg
4, Convenient use 2-3 sizes simultaneously
* No need for special saddles for each caliber part! Can be attached and removed at will. Reusable!
* Depending on the material, some plugs may not be changed once inserted.
• Compatible materials
Reinforced concrete/autoclaved lightweight concrete/half precast concrete/siding/extruded cement panels/Spancrete/deck plates/brick/blocks/stone/wood
* Incompatible with- steel, plasterboard, plywood
* ALC pulling weight is half the standard at 10kg
• Materials Anti-ultraviolet treated polypropylene
• Use One-push type, insert tightly up to the clip neck

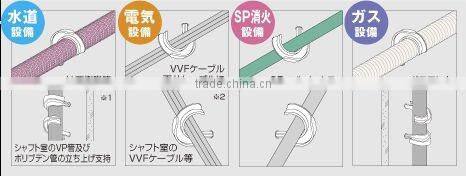

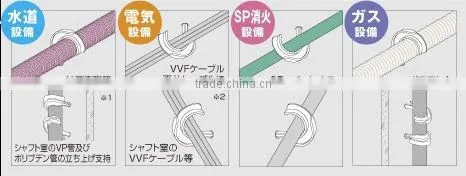

• The wide variety lets you choose the right one for the job
1) Hygienic equipment,Covered resin tubing and sheathed pipes
2) Disaster prevention, Construction objects such as resin pipes.
3) Gas lines, Flexible gas lines and sheathed pipes
4) Cables, combined ducts, and plastic flexible conduits (layered ceiling materials)
