Specifications
Air Bubble Film Maker Machine.Auto tension control
.good after sale

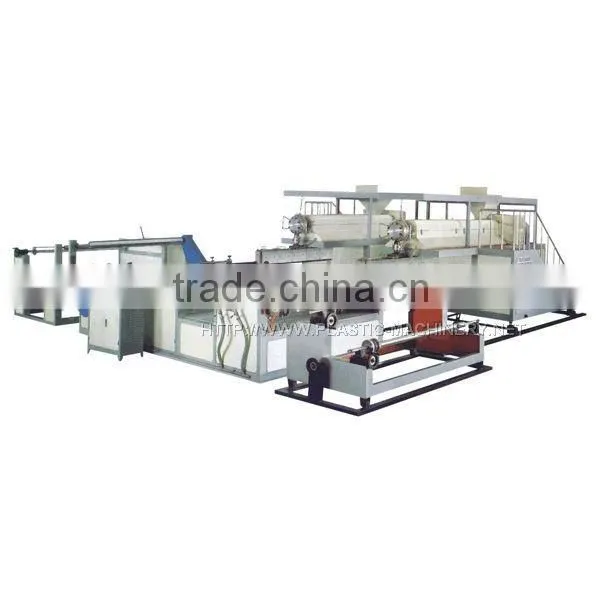

Air Bubble Film Maker Machine
NAME: Air Bubble Film Maker Machine
Feature:
1.This machine adopts once-through shaping technique,thus has high efficiency and excellent product quality.
2.This machine set has such feature as scientific and reasonable structure design,smooth and realiable running and convenient operation and maintenance.
3.Polyethylene air-cushion film(also called polyethylene bubble film),which is divided into two kind:ordinary polyethylene air-cushion film
and composite polyethylene air-cushion film,is a kind of packing material which has been widely used at present.
4.It not only has good cushioning effect,shock resistance and heat-sealing performance,but also has such advantages as good corrosion resistance and transparency,etc.
5.So it has been sidely used for packing household wares,post parcel,prcise instrument,bicycle,polyurethane furniture,etc.
Main Technical Variables:
Model |
DFPEG-1500 |
DFPEG-1200 |
DFPEG-1000 |
DFPEG-600 |
||
Main and auxiliary extruder screw diameter |
φ75mm |
φ65mm |
φ65mm |
φ55mm |
||
L/D |
28:1 |
28:1 |
28:1 |
28:1 |
||
Main and auxiliary extruder electrical power |
18.5KW |
15KW |
15KW |
11KW |
||
Width of production |
1500 mm |
1200 mm |
1000mm |
600 mm |
||
Main bubble specification(arbitrary eligibility) |
φ6×3.2mm φ10×3.4mm φ25×10mm φ30×10mm |
|||||
Output |
50-80kg/h |
30-60kg/h |
30-50kg/h |
20-40kg/h |
||
Totalinstalled capacity |
65kw |
55kw |
45kw |
40kw |
||
Overall dimension |
7.5m×2.8m×2.5m |
7.5m×2.5m×2.5m |
7.5m×2.3m×2.5m |
7.0m×2.0m×2.5m |
||
Gross weight |
5.0T |
3.8T |
3.5T |
2.8T |
||
Parts for choice . automatic feeding . electrical screen filter changer .automaticoverturn rewinder | ||||||
Send Inquiry to This Supplier
