Parameter of JQ-1325 Marble Laser Engraver
pecifications
High cutting and engraving speed
Laser power optional
working size optional
Gold process quality
Competitive price
CO2 laser machine for cutting and engraving non-metals
Machine features
1) The linear guide ensures the precise processing effect, which can make delicate
and complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc.
2) Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
3) Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.
4) Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and
stronger cutting force, greatly improving working efficiency and reducing cost.
5) Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments
manufacturing industry for years, extending the life of the laser tube.
6) This machine uses USB port to transmit data, equipped with largecapacity internal memory,
improving working speed and efficiency greatly.
Machine parameters
Model |
JQ-1325 |
Working area |
1300mm*2500mm |
Laser power |
80w/100w/150w/180w |
Laser type |
CO2 sealed laser tube,water-cooled |
Engraving speed |
0-60000mm/min (0-2362inch/min) |
Laser Output |
1-100%software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220V/50HZ , 110V/60HZ |
Operating temperature |
0 - 45°C |
Operating humidity |
5 - 95% |
Min. shaping character |
English 1.0 x 1.0mm |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system |
3 phases stepper motor |
Machine Optional parts
table:honeycomb for soft materials; up-down for thick materias, knife worktable for hard materials.
dot: makes the laser path visible
3.rotary attachment: for cylinder item like bottles process, and chuck rotary device
4.Air compressor: for materials inflammable
Machine applicable industry
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving ,
bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and
frame fabrication ,advertisement ,aviation and navigation ,construction model and so on.
Machine applicbale materials
Nonmetal materials such as double color boards, acrylic, glass, wood planks, paper, leather, rubber,
marble, granite and tiles

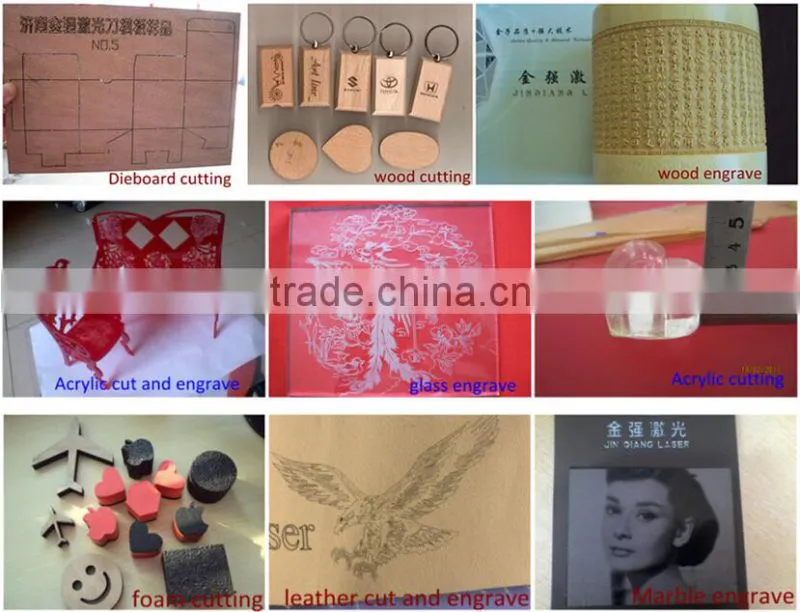

Cutting Samples
