Specifications
clock marking machineJQ-50W diode side-pump marking machine
1.small volume
2.good flexibility
3.CE/FDA
clock marking machine
JQ-50W diode side-pump marking machine
main characteristics
(1) The size of JQ diode side-pump laser marking machine is small. The volume is only 1/4 of the traditional lamp pump laser.
(2) The optical system uses the fully sealed structure to prevent the dust entering laser body and reduces the equipment failure rate.
(3) The machine is able to preview the light path and point out the focus, which are very convenient for the materials that will be processed to be located.
(4) This machine provides the precise three dimension worktable and newest outside water-cooling system. The cooling system can control the water temperature very accurately, which ensures the long time working. The machine movement noise is extremely low.
(5) The software owns intellectual property rights. It is compatible with file formats saved by CORELDRAW, AUTOCAD, PHOTOSHOP and software. It can mark auto-code, sequence number, bath number, date, bar code, etc.
products parameters
Model |
JQ-50 |
|
Laser device |
YAG, 50-watt laser power |
|
Laser Wavelength |
1064nm |
|
Cooling System |
Water cooling (water chiller) |
|
Beam Quality |
<6 |
|
Laser Repetition Frequency |
≤50KHz |
|
Marking Area |
100mm x 100mm (optional: 200mm x 200mm) |
|
Packing size |
1400mm x 1400mm x 1500mm |
|
Marking Depth |
≤0.3mm |
|
|
|
The depth is adjustable according to different materials. |
Linear Speed |
≤7000mm/s |
|
Min. Line Width |
0.02mm |
|
Min. Letter |
0.25mm |
|
Repeatable Accuracy |
±0.001mm |
|
Gross Power |
≤2.5KW |
|
Electricity Source |
220V/50Hz/15A |
|

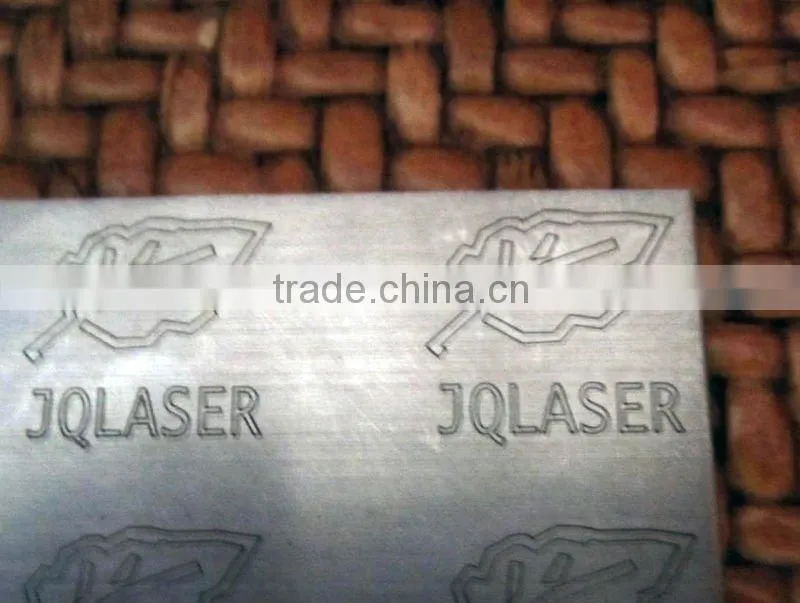

samples:
