Specifications
Mobile solar system has four 12V DC power outlets and two 220 ~ 240V AC sockets ;Factory Outlets!
good quality!
CE,ISO,TUV
Fast delivery:120w 100ah battery solar home system,
Small power station ,provide stable power source for small household appliance
Brief introduction:
1:TWO 220V AC output
2:100watt Solar panel input
3:DC power switch
4:5V USB output
5:Power meter
6:12V output
7:AC power switch
Product advantage:
1.The system uses high-performance sealed lead-acid batteries,and integrates the functionality of the solar charge controller,with overcharge ,over discharge,over-current protection and battery indicator
2. personal design, easy to carry. System itself comes with a 1 w LED lights, and another with two USB output ,Four external export 12v, and with two 220 v ac sockets
3. It can have AC output and DC output at the same time,they will not interfere with each other.
4. Supply power for some short and less electric area.
5. High-performance, practical, durable.
| optional:solar panel | power | 120W |
| cell model | A grade | |
| cell type | mono-crystalline/poly-crystalline for choice | |
| light source | LED bulb light, | |
| battery | 12V/100AH,deeply circulated lead-acid battery , maintenance free | |
| controller | intellgent light control,overcharge and disovercharge protection | |
| solar inverter | 200w pure sine wave, CPU control and fan temperature control | |
| accessories | carton,foam, 5m anti-aging wire, National standard approved | |
Operating Instructions:
1. Charging: turn on the switch “power”, place the solar penal exposed to direct sunlight, insert the plug of the solar penal into the “solar” socket on the main device. When the charging indicator light is on, charging is in process. Flashing of the charging indicator light means charging is completed. Charging from other electricity source is optional.
2. Using with load: the system has three outputs and protection from overload and short circuit. The indicator light will be off in case of overload and short circuit. The light turns on when load is disconnected. Lifting overload by lowering the actual load will resume operation of the device. When batter power is low, all outputs are turned off. Timely recharging resumes operation of the device and prolongs useful life of the battery. If possible, connect the main device to solar penal permanently.
3. USB output is 5.5V/500mA, usable for digital products including mobile phones. Due to the variety of digital products, please prepare your own USB connection cables.
4. Please recharge as soon as possible when battery is dead, so as to maintain adequate power supply. Turn on “power” switch for recharging.
5. Press “test” button to check remaining power storage at any time,The Yellow LED flashes means the Power is running low or has run out.
6. Turn off “power” switch after use.
7. AC usage Instruction: AC and DC are separately output for this machine, if you want to change to be AC Mode, please turn on “AC POWER” switch, the Green AC Indication LED will light on, AC outlet will work, then it is OK to insert AC load. Please turn off “AC POWER” switch if no need.
Our advantages:
We have patents for the essential parts of the products----controller and inverter
All our products are approved by CE and ISO9001
We can do OEM and ODM, and we have our own talented R&D teams
All our products are easy to be used and convenient in maintanence
Strong technical team is ready to work for you.

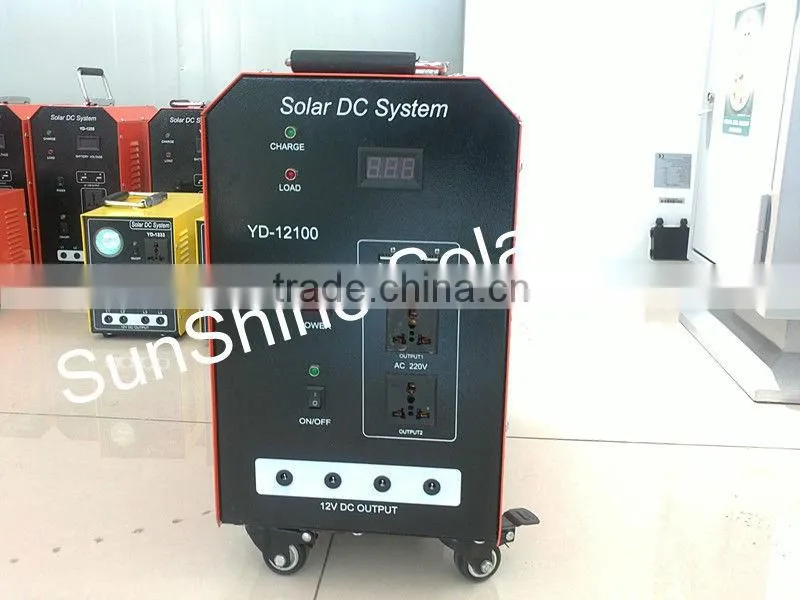

Front:

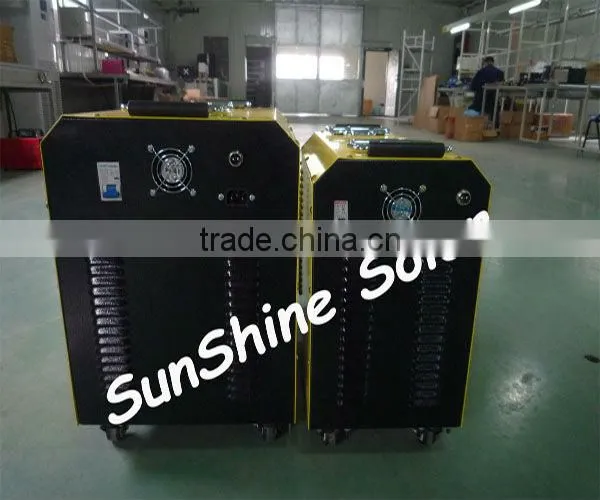

Back:
Inverter Function:To switch 12V DC to AC 220V/50Hz or 110V/60Hz.

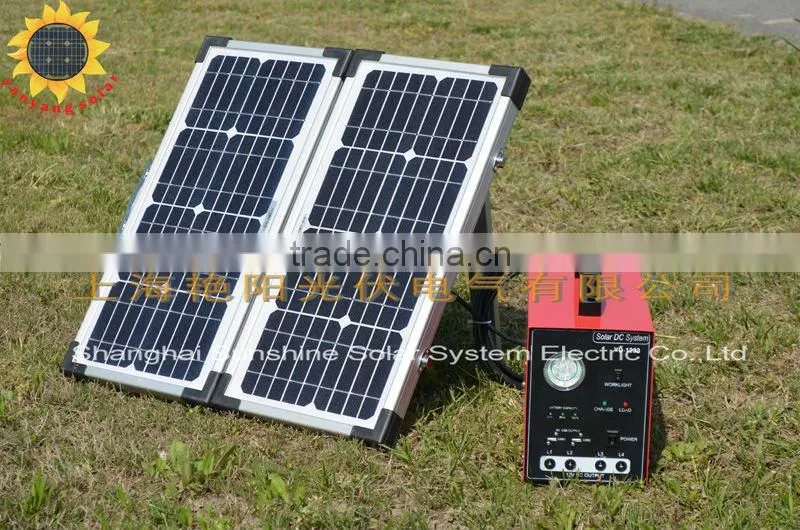

- if you are going to camping or outdoor work, folding solar panels may be a good match.
Welcome to customize other specifications of the solar power system :

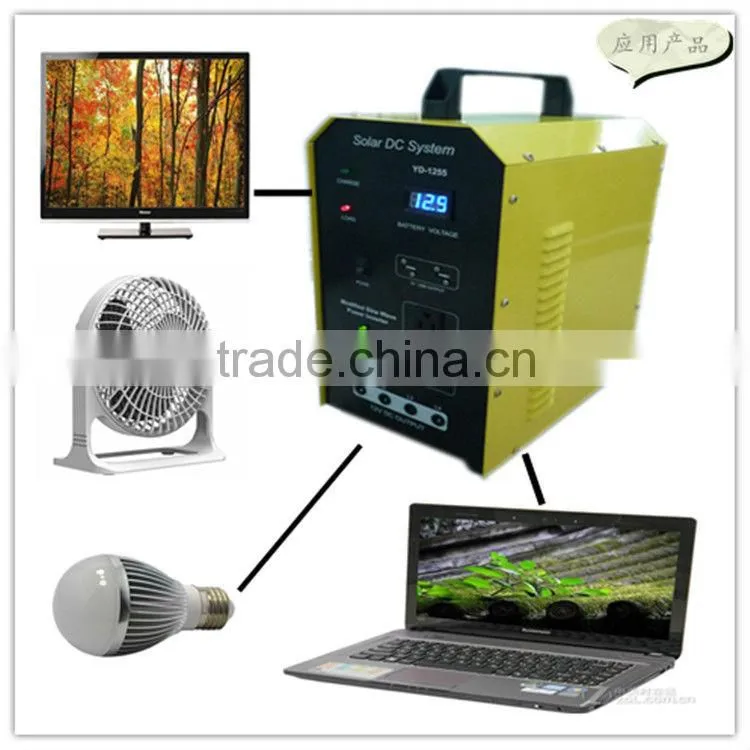

Application:
& Home lighting/ house lighting.
& Remote area, mountainous area, desert area, grassland area.
& Village, countryside area.
& Camping, outdoor activities, traveling.
& Lighting at night.
& Charge Mobiles, MP3,MP4, Camera, and so on with USB.
About OEM&ODM:
Customized Logo |
Acceptable |
Changing on Material, Color, Shape |
Acceptable |
Development on Green Science |
Acceptable |
Assistant on Solar Energy development |
Acceptable |
Package:
by wooden case.
Quality and Safety:
A).Strict quality monitoring process,100% current and voltage.
B).Tests guarantee that the modules meet the power requirement.
C).3 years for power system include battery.
D).Quality product with CE approved
We are factory specializing in the production of solar power systems.
Warmly welcome your inquiry!
Honest Is The Best Policy,We do quality &technology business.
Basic Information:
| Company Name: | Shanghai Sunshine Solar System Electric Co.,Ltd | |
|---|---|---|
| Year Established: | 2000 | |
| Business Type: | Manufacturer | |
| Main Products: | Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp; Flat Solar Panel;Solar Roof Hook | |
| Other Products/Services: | solar backpack,solar power bag,solar case,portable battery,solar inverter | |
| Operational Address: | No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland) | |
| Number of Employees: | 10-20 People View management | |
| Worker Staff: | 80-100 People | |
| No. of QA/QC Staff: | 10-15 People | |
| Management Certification: | CE & ISO 9001:2000 ISO 14001:2004 |
