HOT! Portable Solar Power System for home 220V output

Specifications

Mobile solar system has four 12V DC power outlets and two 220 ~ 240V AC sockets.A) CE&TUV& ISO&ROHS approved B) OEM services

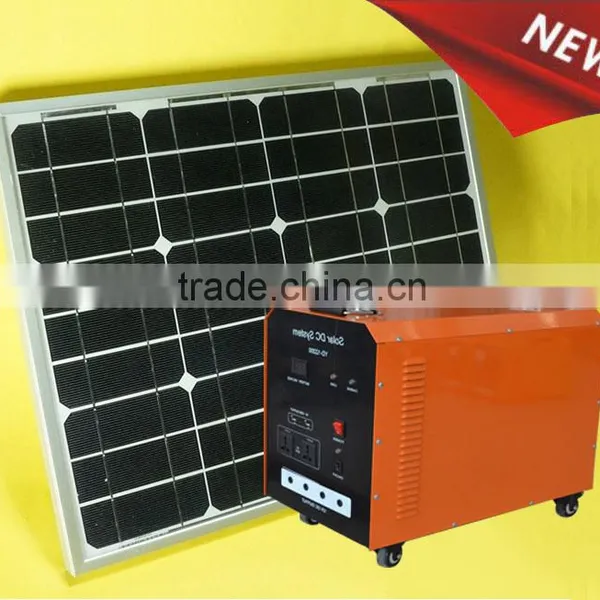

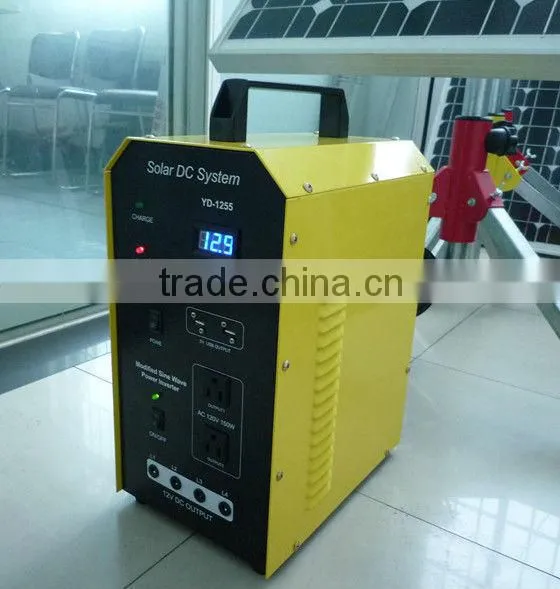

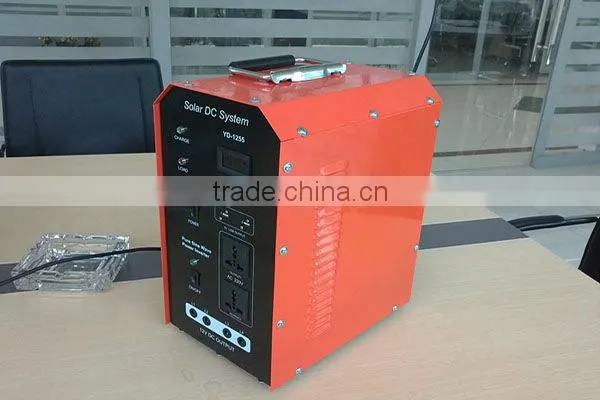

Shanghai Sunshine Portable Solar Home System



Item No: YD-1255



Solar panel 200w, 55ah battery Solar Power System,ideal for household appliances—Provide stable power source for small household appliance.





Input voltage:12V/24V DC + sunlight
Output voltage : 5v USB+12v LED+220v AC

System contains: batterys,inverters, solar controllers,sockets and other integrated as one
With 2 pcs USB port,4pcs 12v DC light socket,and with two 220 v ac socket
It can have AC output and DC output at the same time,they will not interfere with each other.
Mutual support of city grid and solar power
Charging time: About 8 hours (by 80w solar panel in sunny conditions);
Can guarantee that two consecutive rainy days of normal power supply.
Ideal for household appliances,provide stable power source for small household appliance
such as;refrigerator, computer, TV, fan, lights,etc
Regions where there are power shortages, less power supply
personal design, easy to carry
High-performance, practical, durable.





What will you get?

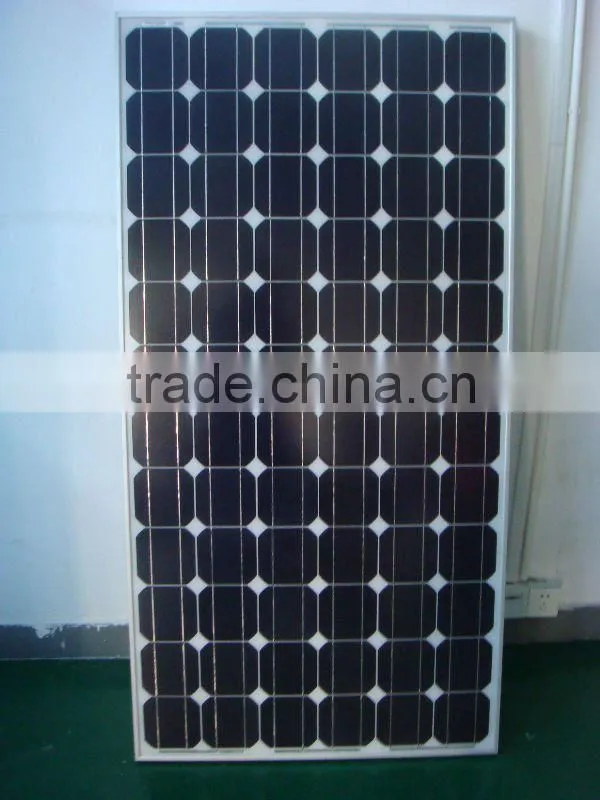

Monocrystalline Silicon flat solar panel: 80w / one-piece ( standard with, also can choose alone )

Battery: sealed lead-acid 55 Ah one-piece
Solar controller: 10A, 1 piece
Inverter (load power): 200w, 1 piece
Control box: 1 piece
Solar brackets, cables: 1 set
Working voltage: 12V
s set of LED Lamp

Charging controller: output will stop if the voltage of batteries is too high or low







Operating Instructions:

1. Charging: turn on the switch “power”, place the solar penal exposed to direct sunlight, insert the plug of the solar penal into the “solar” socket on the main device. When the charging indicator light is on, charging is in process. Flashing of the charging indicator light means charging is completed. Charging from other electricity source is optional.

2. Using with load: the system has three outputs and protection from overload and short circuit. The indicator light will be off in case of overload and short circuit. The light turns on when load is disconnected. Lifting overload by lowering the actual load will resume operation of the device. When batter power is low, all outputs are turned off. Timely recharging resumes operation of the device and prolongs useful life of the battery. If possible, connect the main device to solar penal permanently.

3. USB output is 5.5V/500mA, usable for digital products including mobile phones. Due to the variety of digital products, please prepare your own USB connection cables.

4. Please recharge as soon as possible when battery is dead, so as to maintain adequate power supply. Turn on “power” switch for recharging.

5. Press “test” button to check remaining power storage at any time,The Yellow LED flashes means the Power is running low or has run out.

6. Turn off “power” switch after use.

7. AC usage Instruction: AC and DC are separately output for this machine, if you want to change to be AC Mode, please turn on “AC POWER” switch, the Green AC Indication LED will light on, AC outlet will work, then it is OK to insert AC load. Please turn off “AC POWER” switch if no need.









System advantages:
1.Controlled by microcomputer,easy to install.
2.Built-in charger,invert,controller,battery
3.Overcharge and over discharge protection, short circuit protection.
4.It can charge for mobile,digital camera,LED bulb and other devices work on DC12V









Our advantages:

We have patents for the essential parts of the products----controller and inverter
All our products are approved by CE and ISO9001
We can do OEM and ODM, and we have our own talented R&D teams
All our products are easy to be used and convenient in maintanence
Strong technical team is ready to work for you.





A) providing lighting and phone charging

B) suitable for none or short of electricity area

C) easy to take outside.









 Welcome to customize other specifications of the solar power system:





About OEM&ODM:

Customized Logo	Acceptable
Changing on Material, Color, Shape	Acceptable
Development on Green Science	Acceptable
Assistant on Solar Energy development	Acceptable







Package:

 system from 07AH to 55AH packed by color carton; system from 100AH and 200AH packed by wooden case.



Quality and Safety:

A).Strict quality monitoring process,100% current and voltage.
B).Tests guarantee that the modules meet the power requirement.
C).3 years for power system include battery.
D).Our machine lines are CE & ISO certificate.















         more products,Please contact us.











Honest Is The Best Policy, We do quality& technical business.
