Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Grader > XCMG Motor Grader GR200

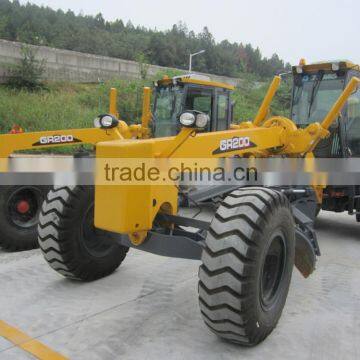

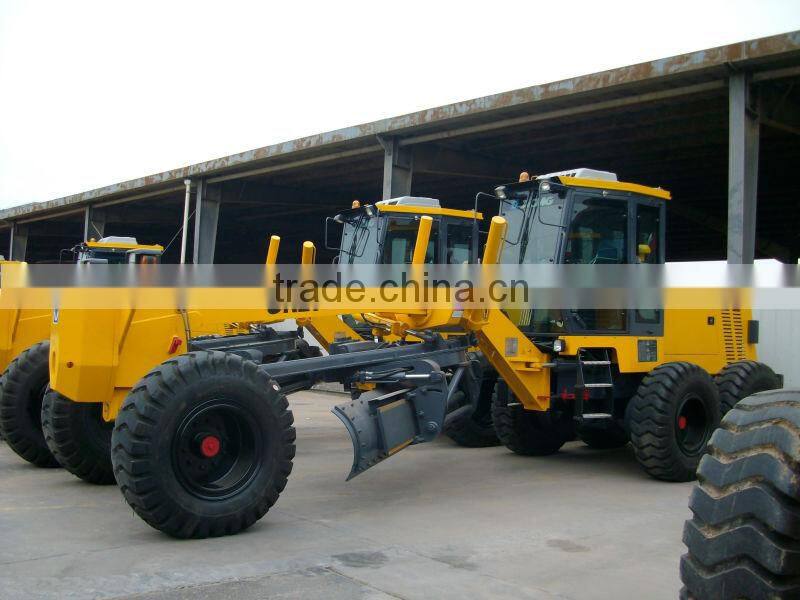

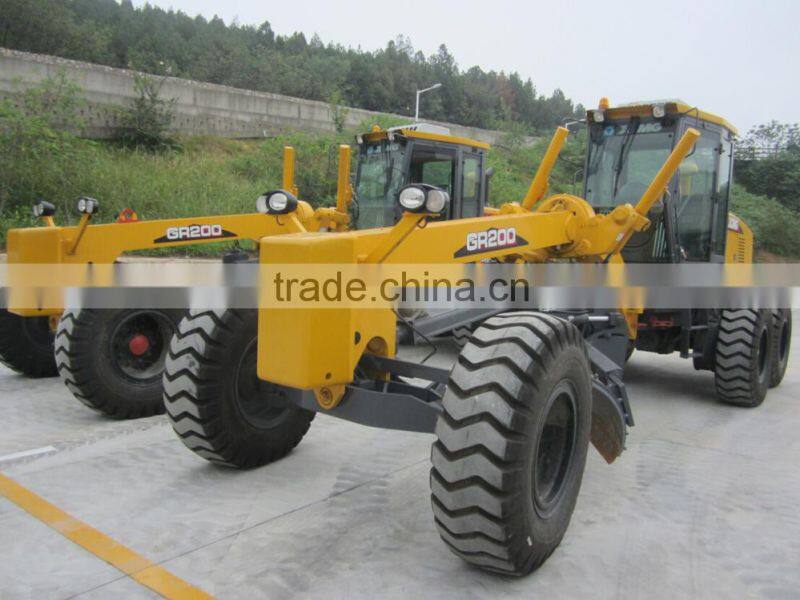

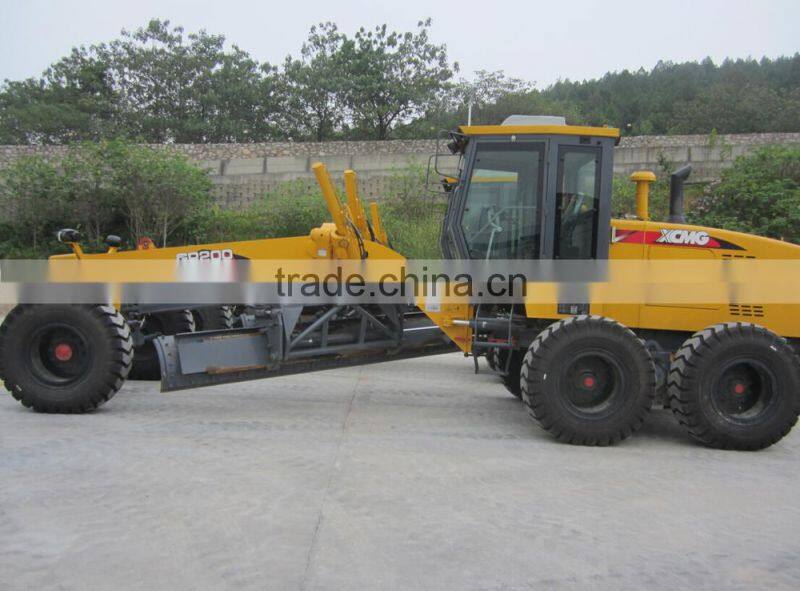

XCMG Motor Grader GR200
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Forward Speed(km/h):
38
Reverse Speed(km/h):
23
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Forward Speed(km/h)
38
Reverse Speed(km/h)
23
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
GR200
Weight
16000 kgs
Dimension(L*W*H)
8932mm*2625mm*3470mm
Certification
CE
The new appearance design.
The articulated frame, with front wheel steering, turning radius small, flexible.
| Basic specification | |
|---|---|
| Engine model | D6114 ZG14B |
| Rated power/speed | 147kW/2200rpm |
| Dimension(LxWxH) | 8932×2625×3470mm |
| Operating weight(Standard) | 16000kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
