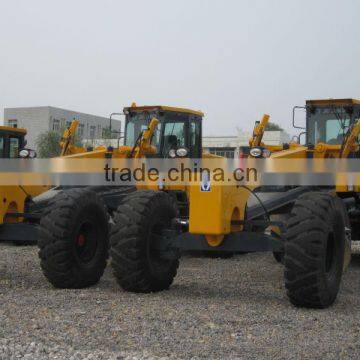

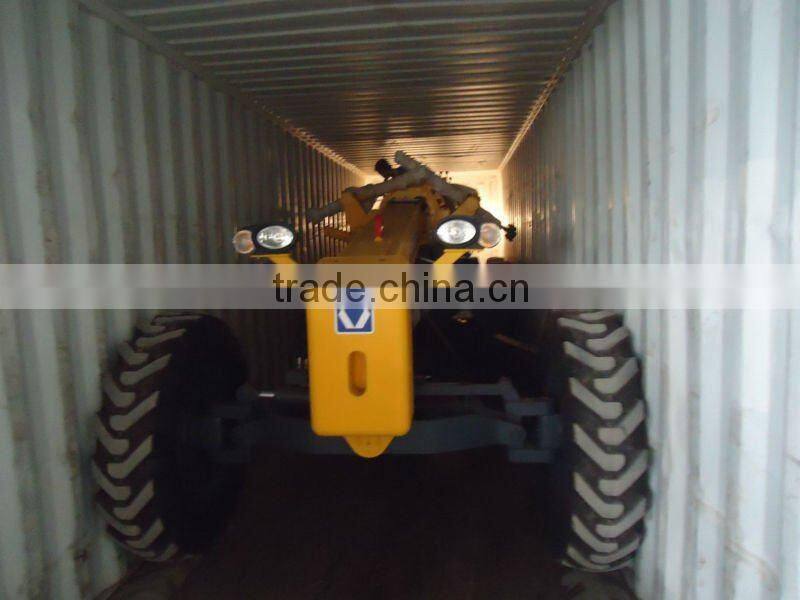

Help CenterGR135/GR165/GR180/GR215/GR260/GR300 Motor Grader
Related Products
Main components of the XCMG GRSeries Motor Grader
1.Engine: DCEC engine
2.Transission: hangzhou Advance (ZF technology)
3.Drive axle: Meriter axle
4.Imported hydraulic components
The XCMG GRSeries Motor Grader are mainly used in ground leveling ,cannlling ,scraping,earthmoving ,scarification or snow removal work on road ,airfield ,farmland,and so on .They are necessary construction machines for national defense engineering,mine construction,town and country roads building,and farmland improvement.
P erformance and characteristic:
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel,with small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shft gearbox,with 6 ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the fully hydraulically controlled.
The rear axle is the three-saction driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable.The arrangement of the msnipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is imprived.
The cab is grand and nice,with wide eyeshot and good sealing.
The front bulldozing plate,rear scarication device,front scarification harrow and automatic leveling device can added.t
Basic specification | |
Engine model |
6CTAA8.3 / D6114 |
Rated power/speed |
138kW/2200 140kW/2300rpm |
Dimension(LxWxH) |
8900×2625×3470mm |
Operating weight(Standard) |
15400kg |
Performance specification | |
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
Travelling speed ,reverse |
5,11,23 km/h |
Tractive force(f=0.75) |
79KN |
Max. gradeability |
20% |
Tire inflation pressure |
260 kPa |
Working hydraulic pressure |
16 MPa |
Transmission pressure |
1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels |
±50° |
Max. lean angle of front wheels |
±17° |
Max. oscillation angle of front axle |
±15° |
Max. oscillation angle of balance box |
15 |
Frame articulation angle |
±27° |
Min. turning radius using articulation |
7.3m |
Biade | |
Maximum lift above ground |
450mm |
Maximum depth of cutting |
500mm |
Maximum blade position angle |
90° |
Blade cutting angle |
28°—70° |
Circle reversing rotation |
360° |
Moldboard width X height |
3965×610mm |
