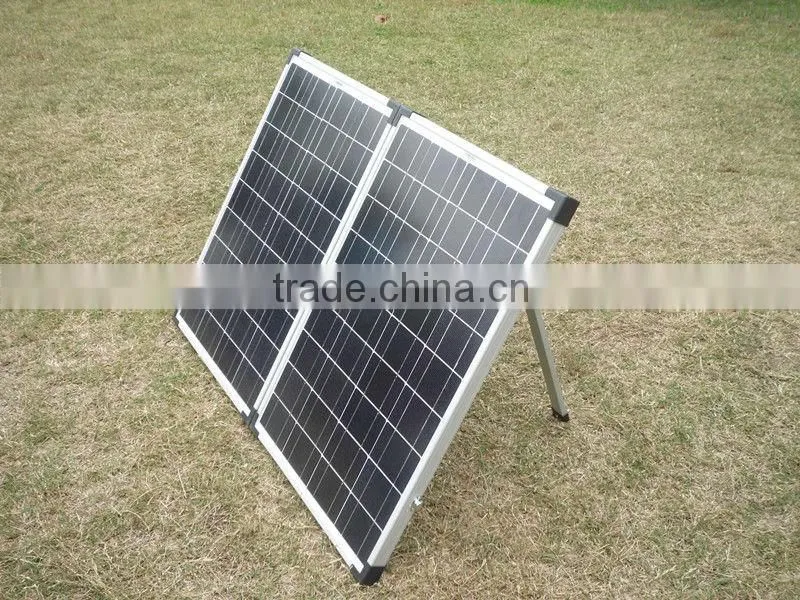

High efficiency outdoor foldable solar panel kit

Specifications

The most professional manufacturer of folding solar panel in China
Very flexible and portable; Anodized aluminium frame.

Shanghai SunShine Foldable Solar Panel Kit



Good News! Factory Direct Limited Time Offer!



2013 LATEST MODEL : 120w Foldable Solar Panel/Portable Solar Panel

Convenient, portable

1. Collapsible, waterproof, easy to carry
2.Suitable for outdoor travel, camping
3 Charge battery.

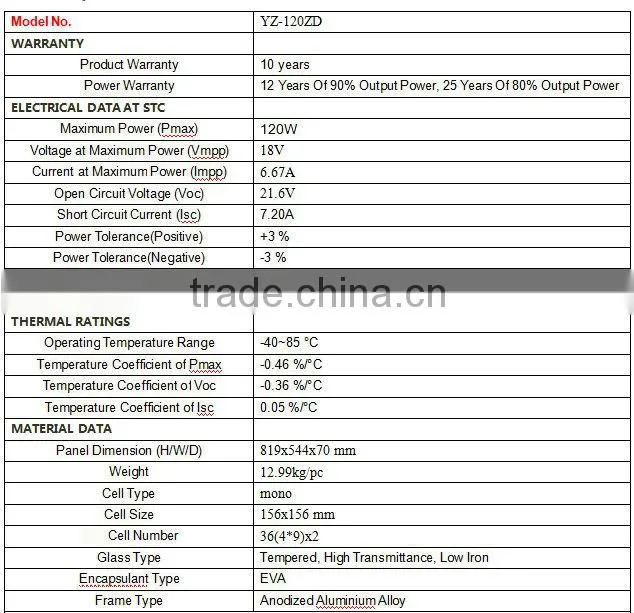

Key specification:



Introduction:

Combined by 2pcs individual high-efficient monocrystalline silicon solar panels; efficency 17.26%

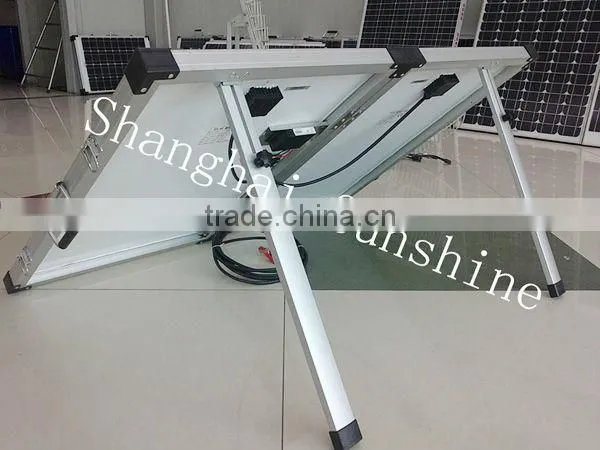

Stainless steel telescopic legs ( can freely rotate 180 degrees)

High-strength low-iron toughened glass; Anodized aluminum frame

with a charge controller with LED charge status display and electronic circuit protection

Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

With whole set of accessories :Carry bag ,Controller,Cable, Alligator Clip,junction box and Supporting Leg,

suitable for home/caravans/camper (powering lap-top, phones, lights, TV,radios, small pumps and other household electrical appliances )

Warranty: 12 months on assembly, 25 years on solar panels





Work:

Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .



This solar panel comes with controller, which has been properly connected already.

To ensure proper use, the solar panel must:
Step 1. Connect to the controller;
Step 2. Connect the controller with 12V battery;
Step 3. Connect home appliances and devices to the 12V battery for free electricity (fitted cable: ≥2x2.5 mm2, not included).



The output voltage is DC volts. If AC volts is needed, please connect it to a power inverter.





Protection Function:
The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging  automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .











It made of high quality.

The price is competitive.







Attention:
In the case of no load, do not connect the positive and negative.







About OEM&ODM:

Customized Logo	Acceptable
Changing on Material, Color, Shape	Acceptable
Development on Green Science	Acceptable
Assistant on Solar Energy development	Acceptable





Company Show :









Basic Information:

	Company Name:	Shanghai Sunshine Solar System Electric Co.,Ltd
	Year Established:	2000
	Business Type:	Manufacturer
	Main Products:	Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp; Flat Solar Panel;Solar Roof Hook
	Other Products/Services:	solar backpack,solar power bag,solar case,portable battery,solar inverter
	Operational Address:	No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland)
	Number of Employees:	10-20 People View management
	Worker Staff:	80-100 People
	No. of QA/QC Staff:	10-15 People
	Management Certification:	CE & ISO 9001:2000 ISO 14001:2004











Certification (CE&ISO approved):









Package Show:





Please try to order sample or visiting in our factory , we trust it worth to do in long term business.









feel free to contact us!
