Specifications
Folding Solar PanelSuitable for household electrical appliances
From 5w~300W
Fully CE&ROHS&ISO approved
factory outlets!

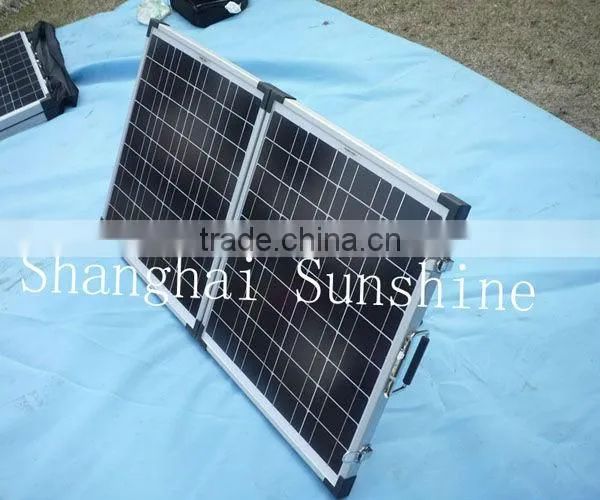

Shanghai SunShine Portable Folding Solar Panel
Good News! 2013 NEW DESIGN High efficiency 50W portable solar panel kits;solar camping kits
Warmly welcome your inquiry~
Item No. : YZ-050ZD monocrystal silicon foldable solar panel (25w*2pcs)
Features:
High efficient crystalline silicon solar cells.

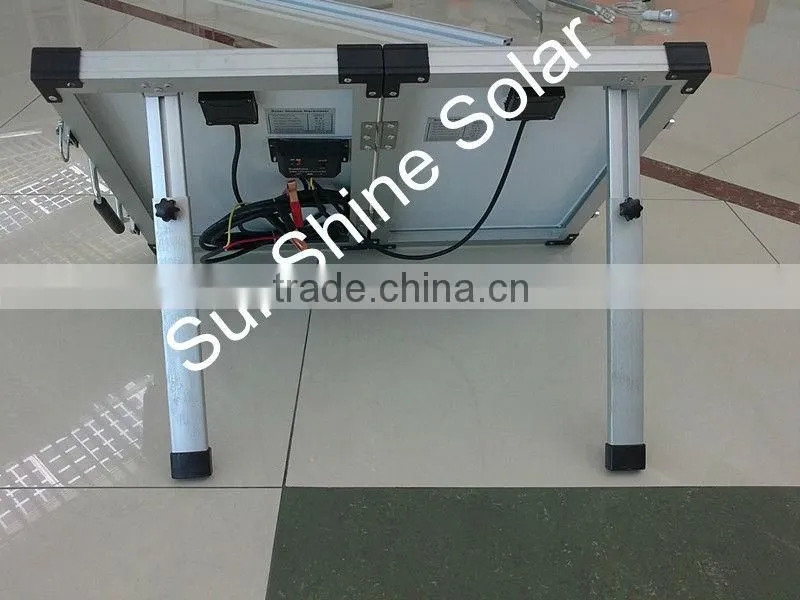

Stainless steel telescopic legs (can freely rotate 180 degrees)
High-strength low-iron toughened glass, impact resistance
Anodized aluminum frame
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

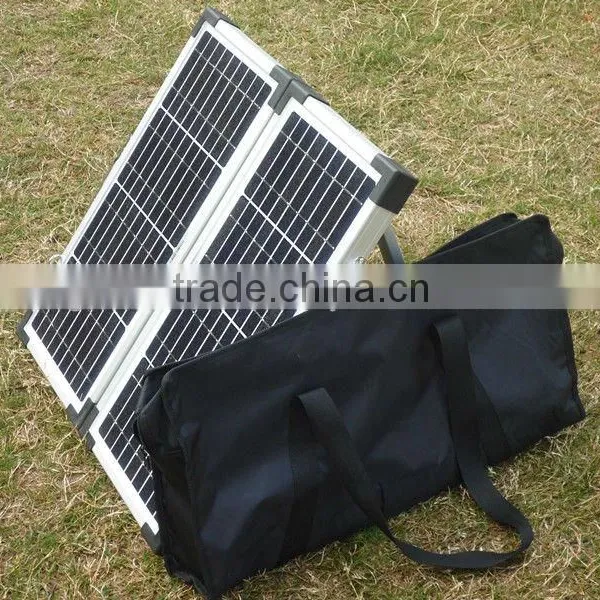

Accessories: controller(5A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
suitable for home/caravans/camper (lighting, TV,small pumps and other household electrical appliances )
12 months on assembly,25 years on solar panel.
Technical Date:
Maximum power: 50W
Power tolerance: ±3%
Optimum operation voltage: 18Vm(V)
Optimum operation current: 2.91 Im(A)
Open circuit voltage: 21.6Voc(V)
Short circuit current: 3.23 Isc(A)
Maximum system voltage: 900(VDC)
Cell efficiency: 15.9%
Module efficiency: 11.85%
Cell Qty,type,arrangement: 36pcs mono crystalline cell(4*9)
Cell size: 156mm
Bypass diade: 2pcs
Maximum fuse in series: 5 (A)
Temp. coefficient power: -0.45(%/°C)
Temp. coefficient Voc: 0.05(%/°C)
Temp. coeffieient Isc: -0.35(%/°C)
Nominal Operating cell temp.: 47±2°C
Standard test condition: 1000Wsq.m,25°C,AM1.5
Mechanical characteristics:
size:540*480*170mm
Junction box:V/VI, TUV approval
Weight:7.5kg
Glass:High transmission of light, low iron, tempred glass
Packing means:
Qty/CTN:5pcs
Ctn box size:540*480*170mm
Qty/20GP:1440 pcs by 32 pcs pallet
Pallet dimention:700*590*130mm
Absolute maximum ratings:
Dielectric isolation voltage:2000MAX(VDC)
Operating temperature:-40--+85°C
Strorage temperature:-40--+85°C
Maximum wind resistance:60(m/s)
Maximum hail diameter @80Km/h:25mm
Maximum load capacity:200(kg/m)
Why choose our solar panel?
High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours ;
Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength of solar module ;
Torsion and corrosion-resistant anodized frame ensures dependable performance, even through harsh weather conditions ;
Lightweight and pre-drilled mounting holes for easy installation ;
Water-resistant junction box ;
Designed specially to meet customer's demands for residential, commercial, and industrial use .
Quality guarantee: 5 years guarantee, output power 90%.
go out for barbecue
it can collect sunlight and convert to electric power

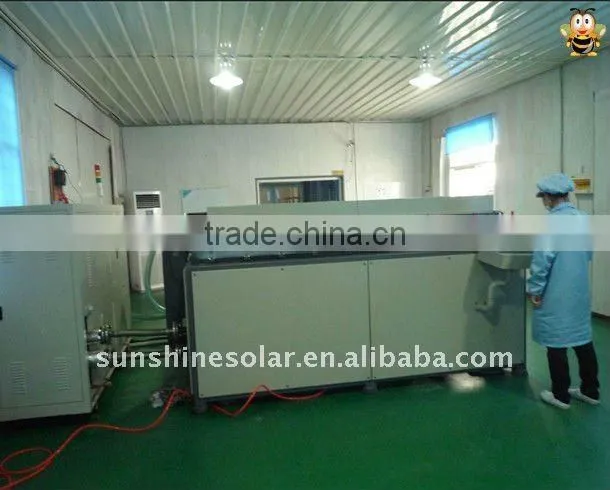

Company Show:
About OEM&ODM:
Customized Logo |
Acceptable |
Changing on Material, Color, Shape |
Acceptable |
Development on Green Science |
Acceptable |
Assistant on Solar Energy development |
Acceptable |
Certification(CE&ISO approved):
Package Show: Packing is very solid!
Warmly welcome your enquiry ! Thank you !
Honest is the best policy,We do quality & technology business.
A) Durable and cheaper
B) Massive produced
Basic Information:
| Company Name: | Shanghai Sunshine Solar System Electric Co.,Ltd | |
|---|---|---|
| Year Established: | 2000 | |
| Business Type: | Manufacturer | |
| Main Products: | Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp; Flat Solar Panel;Solar Roof Hook; Solar Inverter & Controller | |
| Other Products/Services: | solar backpack,solar power bag,solar case,portable battery | |
| Operational Address: | No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland) | |
| Number of Employees: | 10-20 People View management | |
| Worker Staff: | 80-100 People | |
| No. of QA/QC Staff: | 10-15 People | |
| Management Certification: | CE & ISO 9001:2000 ISO 14001:2004 |
