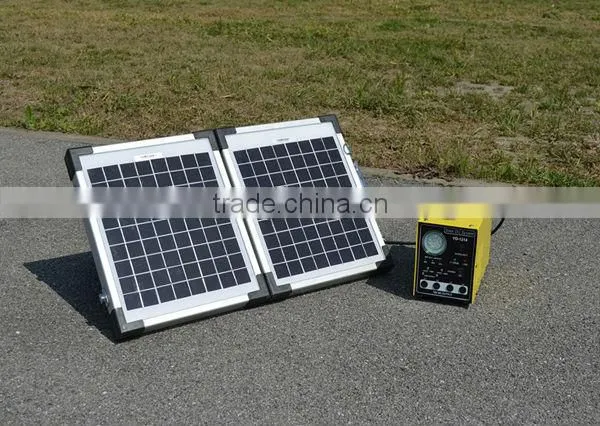

100w/120w folding solar kit/portable charge 12V battery

Specifications

Collapsible, waterproof, easy to carry
Customizable logo
Charge battery
take it go to park for camping
CE,ISO,TUV and ROHS.

Shanghai Sunshine Solar System Electric Co.,Ltd



Fast delivery+high quality+lowest price+OEM services.

ITEM:YD-120ZD (60w*2pcs)

120w Portable Solar Panel
Monocrystalline cells
High Power Output
Aluminum Frame
Bypass diodes build in
Heavy Duty Bag
25 Years warranty on output





Features:

Can charge any 12V battery with 5m cable alligator clip
Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;

Laminated with High quality toughened glass EVA TPT.

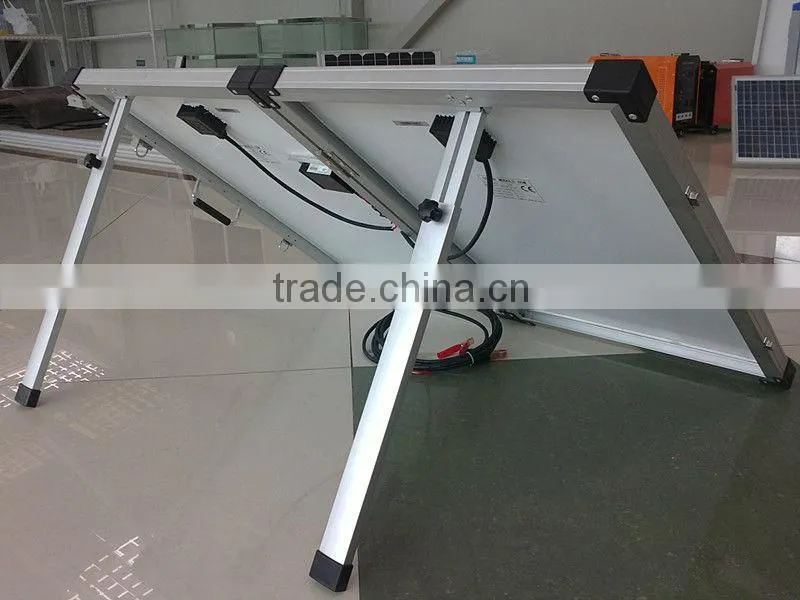

Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass
Anodized aluminum frame; Light weight,easy to carry outside
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)
Stability and high efficiency photoelectric conversion, the average conversion rate is 17%
±3% performance tolerance
Accessories: controller(10A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
Packaging: nonwoven or canvas bag with outer carton, bulk order with pallet
suitable for home/caravans/camper (powering lap-top, phones, lights, TV,radios, small pumps and other small household electrical appliances)





Work:
Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .





Protection Function:
The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging  automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .



Solar Cell	Model & Type	Pm(w)	Power Tolerance	Dimensions (mm)	Weight       (kg)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)	Accessories
MONO	YZ-020ZD	20	-1%~+3%	309*359*70 MM	4.8KG	18	1.11	21.6	1.2	Controller,Cable(5M),Alligator Clip,Connector ,Supporting Leg,Single Bag,Protection Corner
	YZ-030ZD	30	-1%~+3%	269*559*70 MM	6.5KG	18	1.67	21.6	1.8
	YZ-040ZD	40	-1%~+3%	559*359*70 MM	7.5KG	18	2.22	21.6	2.4
	YZ-050ZD	50	-1%~+3%	505*431*70 MM	8.0KG	18	2.91	21.6	3.23
	YZ-060ZD	60	-1%~+3%	615*431*70MM	8.5KG	18	3.33	21.6	3.6
	YZ-080ZD	80	-1%~+3%	606*549*70MM	11.5KG	18	4.44	21.6	4.8
	YZ-100ZD	100	-1%~+3%	759*559*70 MM	12.5KG	18	5.56	21.6	6.0
	YZ-120ZD	120	-1%~+3%	819*544*70 MM	16.0KG	18	6.67	21.6	7.2
	YZ-160ZD	160	-1%~+3%	1125*1120*70 MM	18.5KG	18	8.89	21.6	9.6
	YZ-180ZD	180	-1%~+3%	935*678*70 MM	20.0KG	18	10.46	21.6	11.58
	YZ-200ZD	200	-1%~+3%	1135*808*70 MM	24.0KG	18	11.60	21.6	12.8



Attention:
In the case of no load, do not connect the positive and negative.







About OEM&ODM:

Customized Logo	Acceptable
Changing on Material, Color, Shape	Acceptable
Development on Green Science	Acceptable
Assistant on Solar Energy development	Acceptable







Quality and Safety:

  1.Strict quality monitoring process,100% current and voltage.

  2.Tests guarantee that the modules meet the power requirement.

  3. Our machine lines are CE & TUV&ISO  certificate.

  4.12 months on assembly,25 years on solar panel

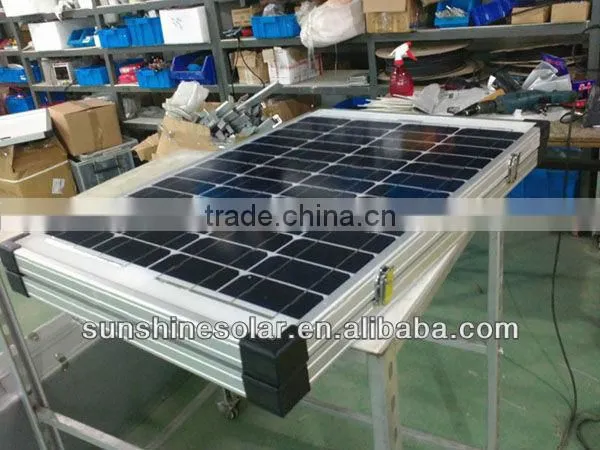

Factory Show:

Warmly welcome your inquiry! Thank you kindly!









if you need a kit:panel+generator,please indicate in the inquiry,thank you kindly.
