Specifications
High Efficiency.12V DC standard output (24v DC optional)
CE,TUV junction box
90% power 10 years
80% power 20 years
Shanghai SunShine Foldable Solar Panel
Good News! 30w solar panel,fast delivery&high quality&low price.

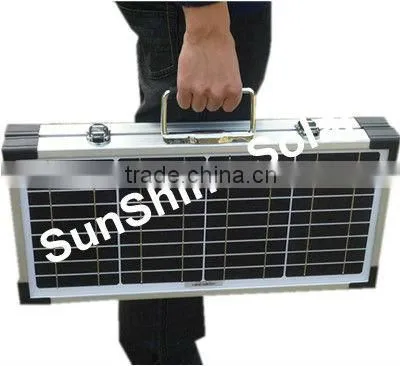

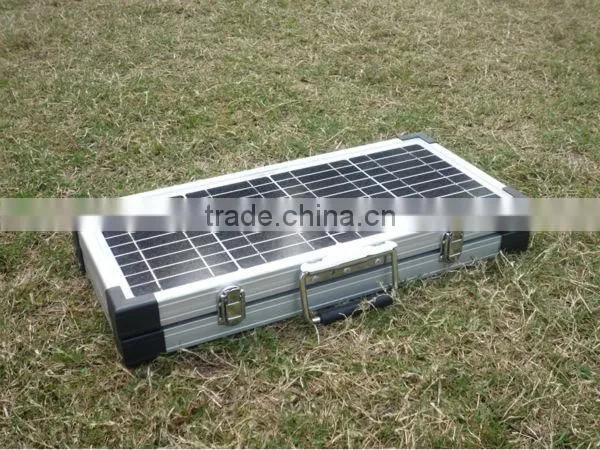

collapsible(space saving) ,waterproof and easy to carry
ITEM:30w folding solar complete kit (15w*2 pcs)
Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;
Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass; Anodized aluminum frame

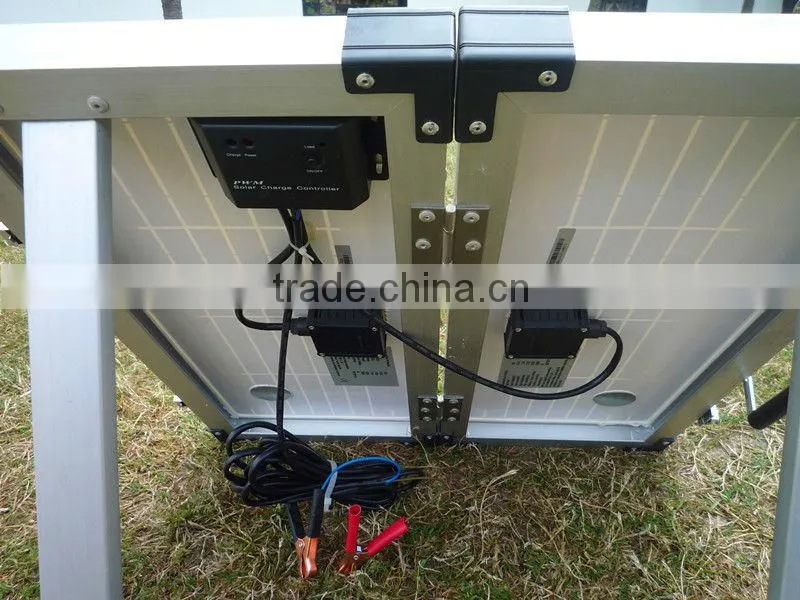

with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)

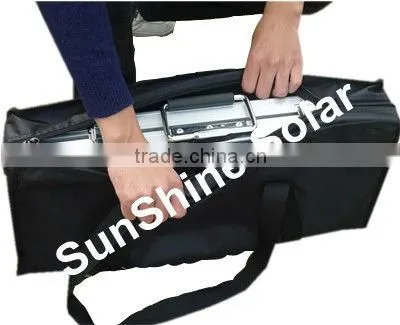

Supporting leg & a hand bag are also available for easy location & portable consideration;
Accessories: controller (5A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
suitable for home (lighting, TV,small pumps and other household electrical appliances )
Work:

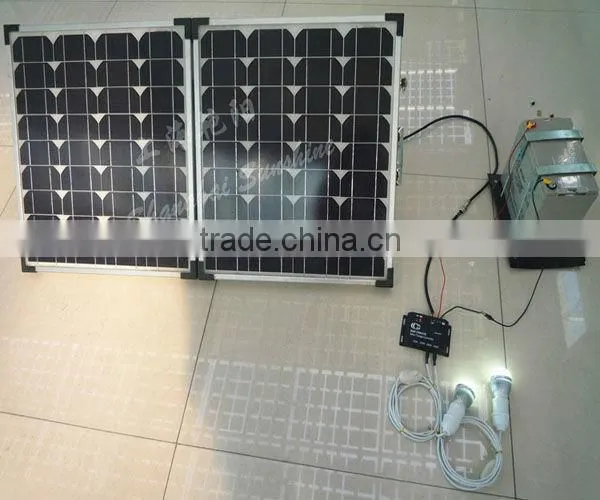

Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .
This solar panel comes with controller, which has been properly connected already.
To ensure proper use, the solar panel must:
Step 1. Connect to the controller;
Step 2. Connect the controller with 12V battery;
Step 3. Connect home appliances and devices to the 12V battery for free electricity (fitted cable: ≥2x2.5 mm2, not included).
The output voltage is DC volts. If AC volts is needed, please connect it to a power inverter.
Protection Function:
The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .
Attention:
In the case of no load, do not connect the positive and negative.
About OEM&ODM:
Customized Logo |
Acceptable |
Changing on Material, Color, Shape |
Acceptable |
Development on Green Science |
Acceptable |
Assistant on Solar Energy development |
Acceptable |
Quality and Safety:
a.Strict quality monitoring process,100% current and voltage.
b.Tests guarantee that the modules meet the power requirement.
c.Our machine lines are CE & TUV certificate.
d.12 months on assembly,25 years on solar panel
Package Show: Packing is very solid!
Factory Show:
Warmly welcome your inquiry! Thank you kindly!
feel free to contact us!
Basic Information:
| Company Name: | Shanghai Sunshine Solar System Electric Co.,Ltd | |
|---|---|---|
| Year Established: | 2000 | |
| Business Type: | Manufacturer | |
| Main Products: | Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp;Flat Solar Panel;Solar Roof Hook; Solar Inverter & Controller | |
| Other Products/Services: | solar backpack,solar power bag,solar case,portable battery | |
| Operational Address: | No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland) | |
| Number of Employees: | 10-20 People View management | |
| Worker Staff: | 80-100 People | |
| No. of QA/QC Staff: | 10-15 People | |
| Management Certification: | CE & ISO 9001:2000 ISO 14001:2004 |
