Best Selling portable 120w folding solar panel kit

Specifications

1.120W folding solar panel
2.High efficiency
3.Light and rugged, its easy to carry
4.Multifunction
5.Long life span

Shanghai Sunshine Portable Folding Solar Panel



Good News!Factory Direct Limited Time Offer!

Foldable,convenient, portable, space saving.

ITEM:YZ-120ZD



120W folding solar panel Specification:

Maximum Power	120Wp
Power Tolerance	1%~3%
Optimum operating voltage(Vmp)	18V
Optimum operating current(Imp)	6.67A
Open ciruit voltage(Voc)	21.6V
Short circuit current(Isc)	7.2A
Maximum system voltage	715V
Cell type	Monocrystalline solar cell
Dimension	505*920*70 mm
Weight	13Kg
STC	1000W/m2,AM 1.5,25ºC
Frame Material	Clear anodized aluminium frame
Operating temperature	-40°C~+85°C
Storage temperature	from-40°C~+85°C
Maximum wind resistance	60m/s
Surface maximum load capacity	200Kg/m2
Maximum hail load capacity	25mm,80km/h
Efficiency of cell	16.5~17%
Warranty	12 months on assembly,25 years on solar panel





Accessories:

DC12V or DC24V charger
5M Cable with Alligator Clip

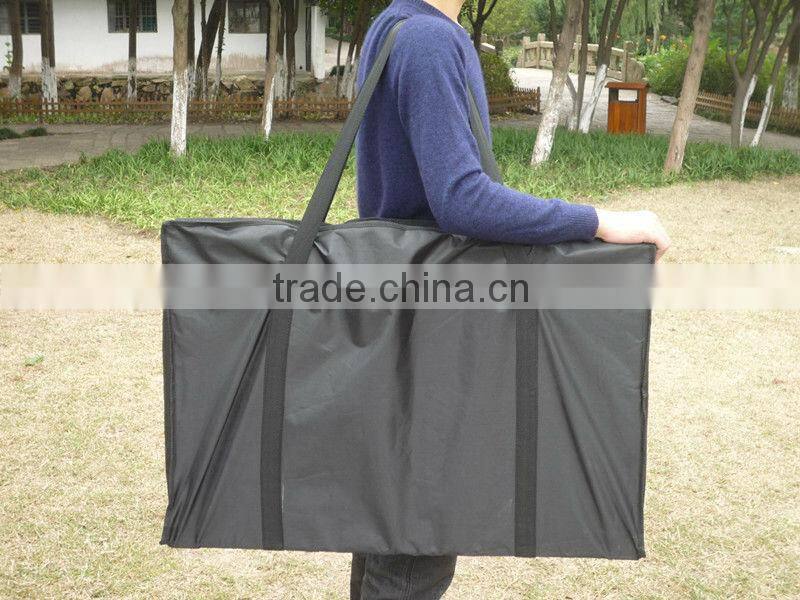

Protection carry bag





Features:

Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;
Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass; Anodized aluminum frame
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)
Supporting leg & a hand bag are also available for easy location & portable consideration;
Accessories: controller (10A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
suitable for home (lighting, TV,small pumps and other household electrical appliances )

Warranty: 12 months on assembly, 25 years on solar panels







Work:
Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .




Protection Function:
The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging  automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .





Attention:
In the case of no load, do not connect the positive and negative.





do you interest on outdoor camping barbecue during weekend leisure time?

it can collect sunlight and convert to electric power.





About OEM&ODM:

Customized Logo	Acceptable
Changing on Material, Color, Shape	Acceptable
Development on Green Science	Acceptable
Assistant on Solar Energy development	Acceptable





Certification (fully CE&ISO&TUV approved):







Company&Factory Show:









Factory Show:

It made of high quality.

The price is competitive.





Please try to order a sample or visit our factory,we trust it worth to do in long term business.









Warmly welcome your inquiry!  Thank you kindly!







Basic Information:

	Company Name:	Shanghai Sunshine Solar System Electric Co.,Ltd
	Year Established:	3500
	Business Type:	Manufacturer
	Main Products:	Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp; Car Power Inverter; Flat Solar Panel;Solar Roof Hook; solar controller&inverter
	Other Products/Services:	solar backpack,solar power bag,solar case,portable battery,
	Operational Address:	No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland)
	Number of Employees:	10-20 People View management
	Worker Staff:	80-100 People
	No. of QA/QC Staff:	10-15 People
	Management Certification:	CE & ISO 9001:2000 ISO 14001:2004
