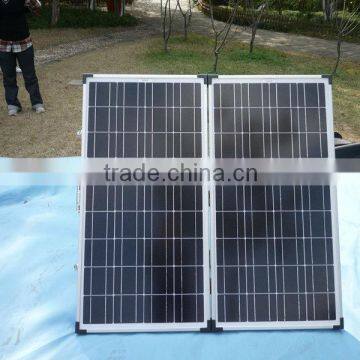

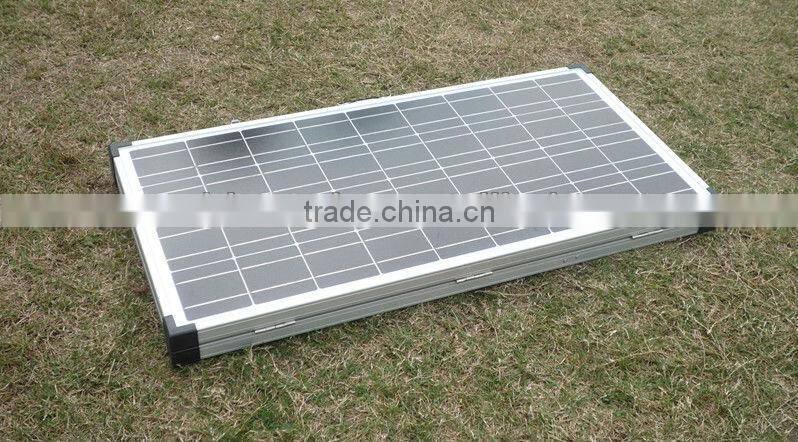

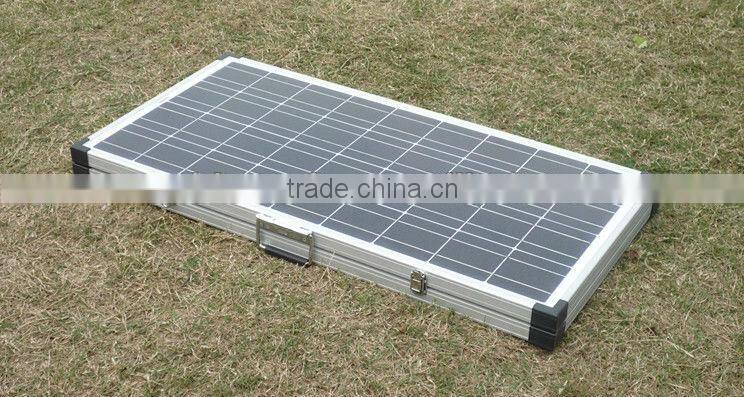

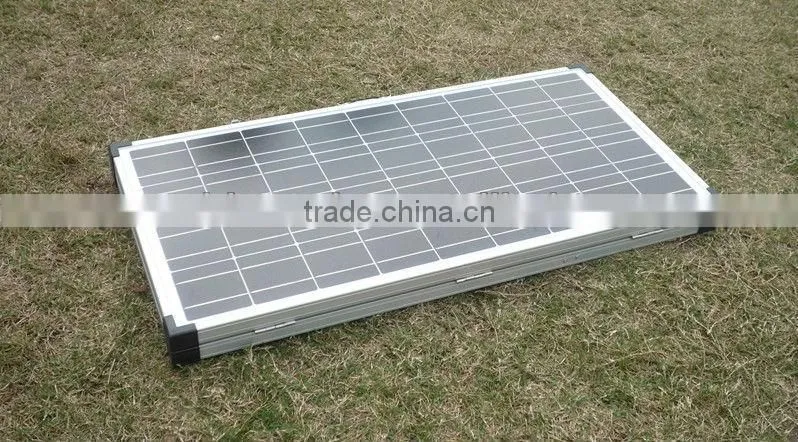

Hot Selling 160w portable folding solar panel kit

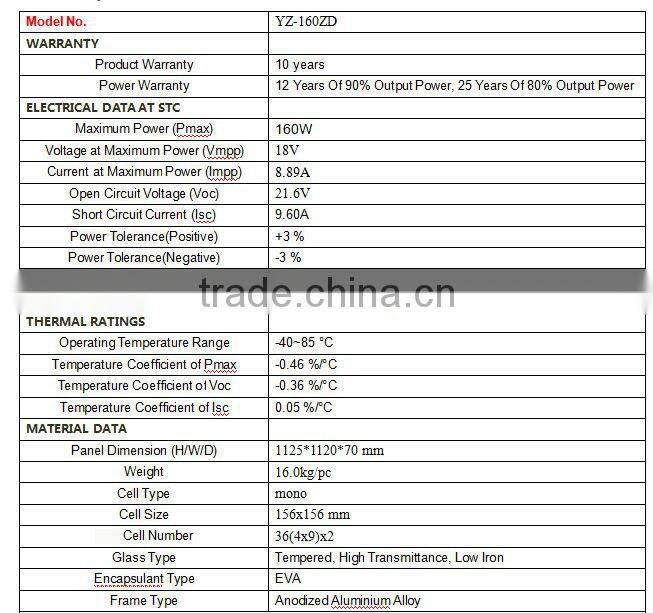

Specifications

1) Monocrystalline 160W
2)high efficiency,reliable quality
3)certifications:CE,TUV ,ISO,ROHS.
4)CE&ISO&TUV

 Shanghai Sunshine Portable Folding Solar Panel



Good News! fast delivery&low price&high quality



Features:

Power: 160W (80W x 2pcs)
Size: 809*680*70 MM

Pmax (Imp): 9.6A
Pmax (Vmp): 21.6V

efficency :17.26%
Can charge any 12V battery with 5m cable alligator clip
High efficient crystalline silicon solar cells.
Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass
Anodized aluminum frame; Light weight,easy to carry outside
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)
Stability and high efficiency photoelectric conversion, the average conversion rate is 17%
±3% performance tolerance
Accessories: controller(15A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
Packaging: nonwoven or canvas bag with outer carton, bulk order with pallet
suitable for home/caravans/camper (powering lap-top, phones, lights, TV,radios, small pumps and other small household electrical appliances)

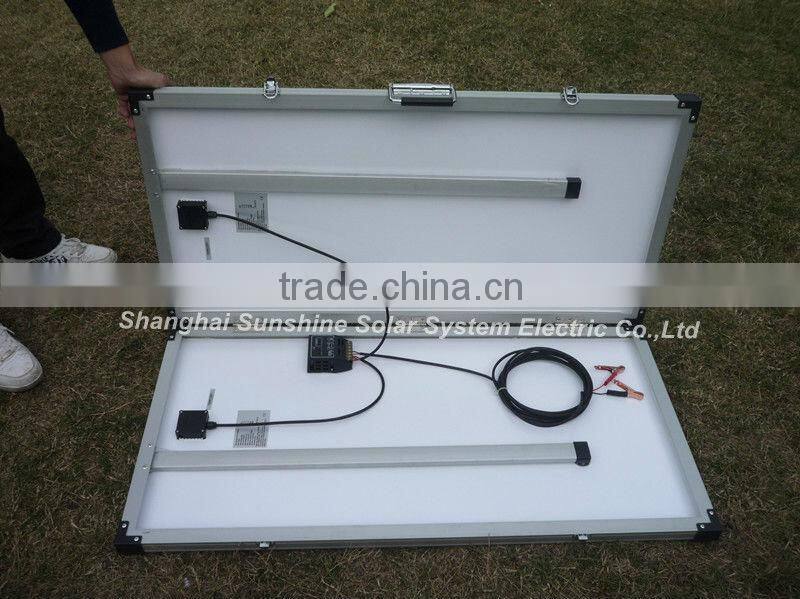

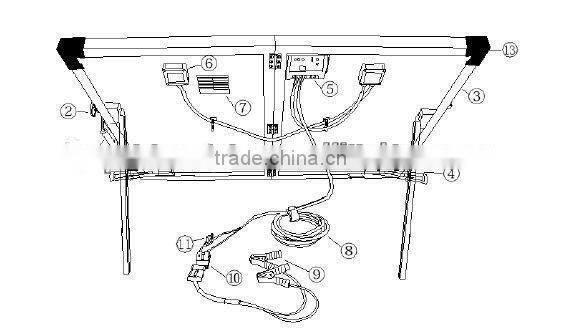

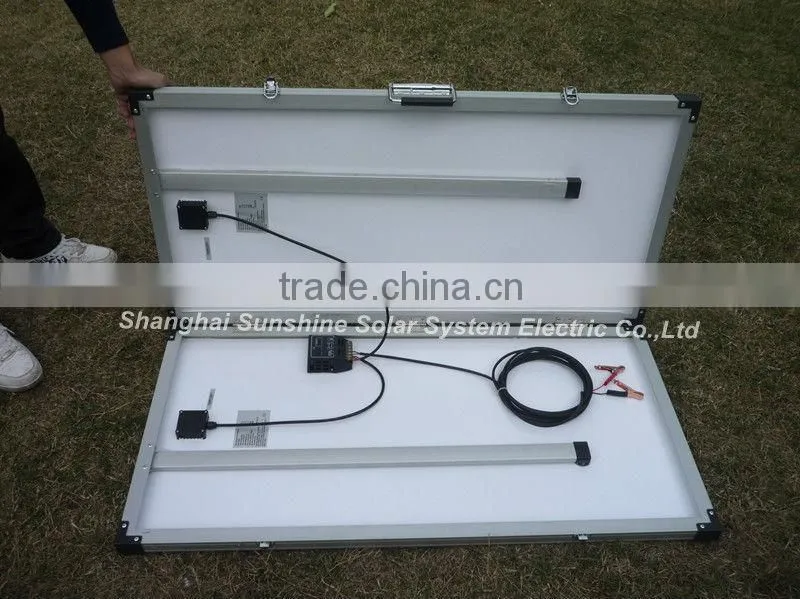

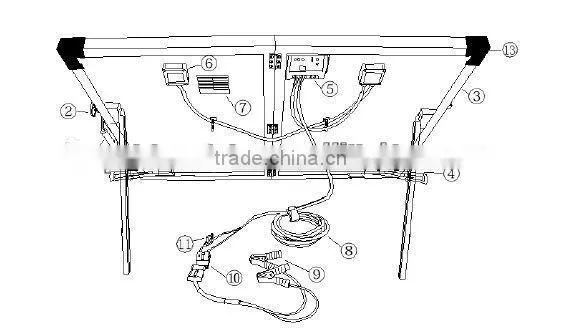

Accessories:
1. Handle
2. Latches
3. Aluminum frame
4. Aluminum support legs
5. Solar charger controller
6. Junction box
7. Label

8. Cable (5M)

9. Battery clips/Alligator clips

10. Anderson plug

11. Fuse

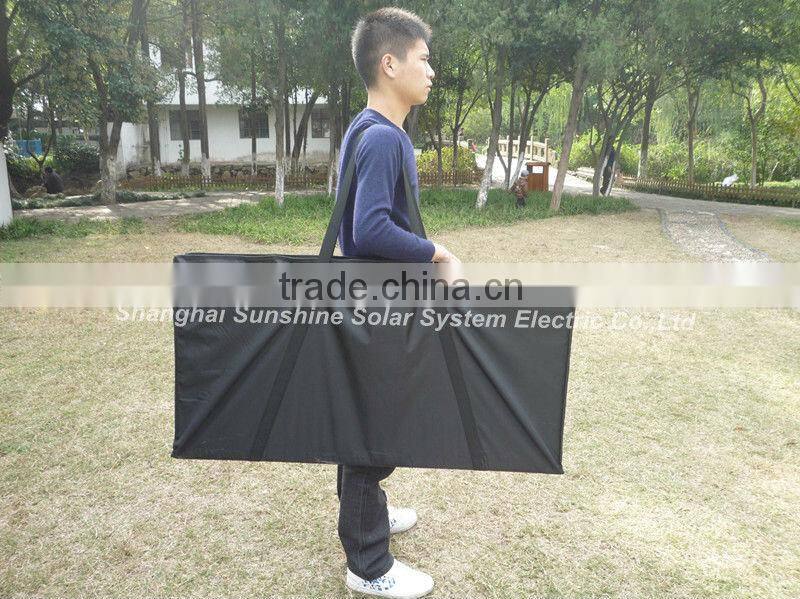

12. Storage carry bag

13. Protect corner





 Work:
Under normal lighting conditions, put the unfolded solar panel toward the sun direction, then red and black alligator clips touch positive and negative ends of the battery respectively. If the “Charge” light red and the “Load1” light green , it shows that the system is charging the battery normally . At the meantime , it can load ( 12V light or other electric appliances ) connect to the L + and L- .







Protection Function:
The solar controller have overcharge or undervoltage protection function for battery. When the charging voltage is higher than 14.4V , the controller will turn off charging  automatically ; When the battery voltage is lower than the protection voltage 10.8V , the controller turn off output automatically to protect the battery from damage . At the meantime , the digital light flash and it can’t charge .





Attention:
In the case of no load, do not connect the positive and negative.

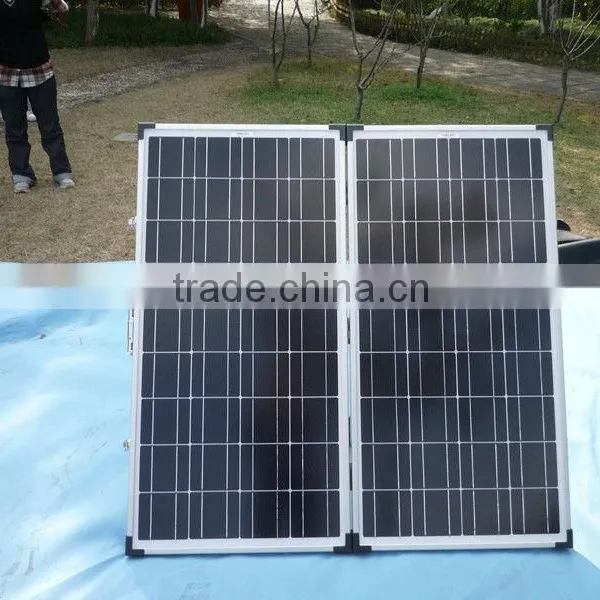

Take it out for  barbecue

it can collect sunlight and convert to electric power.







Other models:

2x10w  /  2x20w  /  2x30w  /  2x40w  /  2x50w  /  2*60w  /  2x75w  /  2*80w  /  2x100w

welcome your enquiry!







About OEM&ODM:

Customized LOGO	Acceptable
Changing on Material, Color, Shape	Acceptable
Development on Green Science	Acceptable
Assistant on Solar Energy development	Acceptable







Certification (CE&ISO approved):







Warmly welcome your inquiry!











       Please try to order sample or visiting in our factory , we trust it worth to do in long term business.
