XCMG Rotary Drilling Rig XR200

Name: XCMG Rotary Drilling Rig XR200
Brand: XCMG
SKU: 112295469
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Jiangsu, China

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XR120

Usage Ore

Specifications

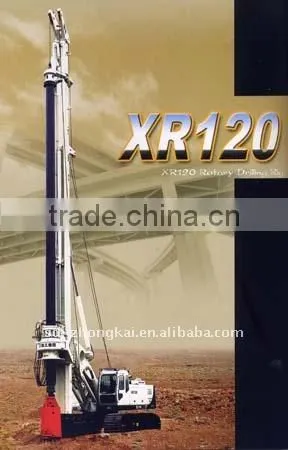

XR120 rotary drilling rig
1 Engine model: D6114ZG1B
2 Rated power: 140kW(2200 r/min)
3 Hydraulic main pump: KAWASAKI

XR120 rotary drilling rig

No.	Name		Unit	Data
1	Max. drilling diameter		mm	Æ1500
2	Max. drilling depth		m	50/5, 40/4
3	Admit safety drilling extent (arrive rotate center)		mm	2465∼3300
4	Working condition dimension		mm	7310×4000/4100×17650
5	Transportation condition dimension		mm	13200×2995/3050×3460
5	Transportation condition dimension		mm	12800×2995/3050×3200
6	Overall drilling weight		t	~40
7	Engine	Model		SHANGHAI D6114ZG1B
		Rated power / turning speed	kW	140 /2200 r/min
		Max. output torque	N.m	669 /1400 r/min
8	Hydraulic system	Main pump Max. press	Mpa	32
8	Hydraulic system	Auxiliary pump max. press	Mpa	28
9	Rotary driver	Max. torque	kN.m	120
9	Rotary driver	Max. speed	r/min	6∼24
10	Pull-down cylinder	Max. pull-down piston push	kN	114
		Max. pull-up piston push	kN	148
		Max. pull-down piston stroke	mm	3800
11	Main winch	Max. pull-down piston push	kN	135
		Max. pull-down speed	m/min	70
		Rope dia	mm	24
12	Auxiliary winch	Max. pull-down piston push	kN	60
		Max. pull-down speed	m/min	70
		Rope dia	mm	16
13	Mast	Left/right rake	°	3/ 3
		Forwards rake	°	5
		Backwards rake	°	15
	Turning platform	Turning angle	°	360
	Walk	Max. moving speed	km/h	2.0
	Walk	Max. up grade ability	%	40
	Track	Track width	mm	700/800
		Distance between tracksMin. Max.	mm	2950-3050
		Distance between two wheel center	mm	3730
