Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > XCMG XG360 Diaphragm Wall Grab Rotary Drilling Rig Piling Machinery

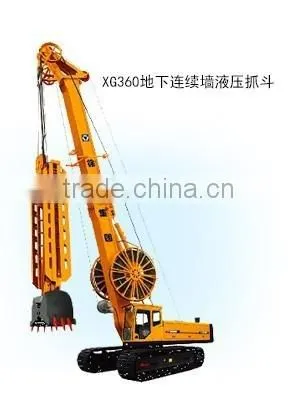

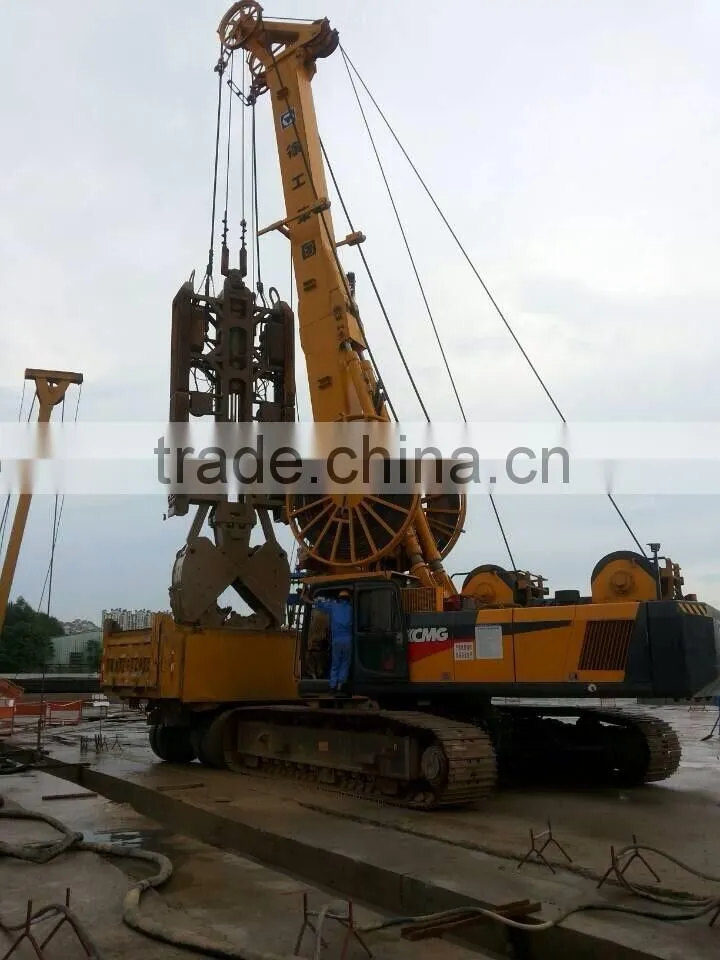

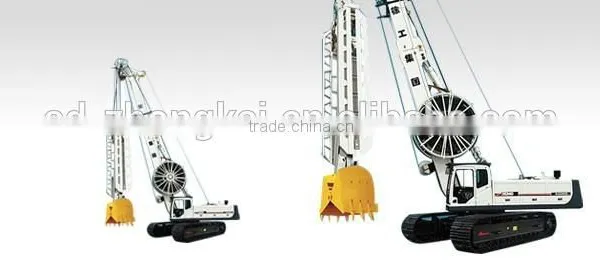

XCMG XG360 Diaphragm Wall Grab Rotary Drilling Rig Piling Machinery
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
XG360
Usage
Ore
Power(W)
242 kw
Dimension(L*W*H)
10200mm*4400mm*17097mm
Weight
58000 kgs
Warranty
one year
XCMG Diaphragm Wall Grab XG360
good quality with low price
Convenient operation
Excellent performance
XG360 | |
|---|---|
| Wall depth | 60m |
| Wall thickness | 600-1200mm |
| Max. hoisting power | 360KN |
| Max. hoisting/lowering speed | 35m/min |
| Grab opening time | 6sec |
| Grab closing time | 7sec |
| Hydraulic system pressure | 30Mpa |
| Engine | |
| Model | CUMMINSQSL9-C325 |
| Rated power | 242/2100KW/rpm |
| Undercarrige | |
| Max. traveling speed | 1.5Km/h |
| Max. grade ability | 40% |
| Min. ground clearance | 468mm |
| Track shoe width | 800mm |
| Track gauge | 3500~4400mm |
| Dimension(length,width,height) | |
| Working condition | 10200x4400x17097mm |
| Transportation condition | 12850x3500x3395mm |
| Overall Drilling weight(without grab) | 58T |
