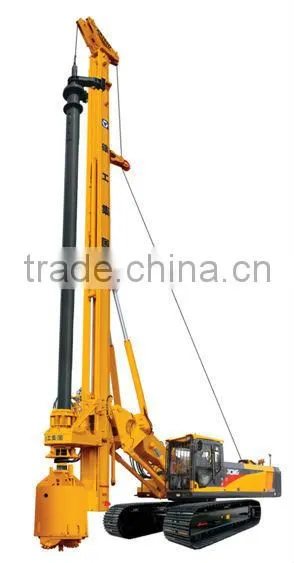

XCMG Rotary Drilling Rig XR260D
Specifications
MODEL |
XR260D |
||
Engine |
Model |
QSL-325 |
|
Rated Power |
kW |
242 |
|
Rotary drive |
Max.output torque |
kNm |
260 |
Rotary speed |
r/min |
7~22 |
|
Max.Drilling Diameter |
m |
φ2200 |
|
Max.Drilling Depth |
m |
67 |
|
80 | |||
52 | |||
Pull-Down Cylinder |
Max.pull-down piston push |
kN |
200 |
Max.pull-down piston pull |
kN |
200 |
|
Max.pull-down position stroke |
mm |
5000 |
|
Main Winch |
Max.pulling force |
kN |
260 |
Max.line speed |
m/min |
70 |
|
Auxiliary Winch |
Max.pulling force |
kN |
80 |
Max.line speed |
m/min |
60 |
|
Mast rake |
±4°/ 5°/15° |
||
Undercarrige |
Max.traveling speed |
km/h |
1.5 |
Max.grade ability |
% |
35 |
|
Min.clearance |
mm |
468 |
|
Track Shoe Width |
mm |
800 |
|
Distance between tracks |
mm |
3500~4400 |
|
Hydraulic system |
Working pressure |
Mpa |
35 |
Overall Drilling Weight |
t |
79 |
|
Dimension |
Working condition |
mm |
10465×4400×22150 |
Transportation condition |
mm |
16525×3500×3510 |
|
