Specifications

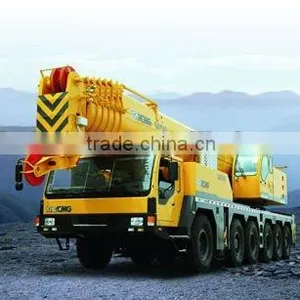

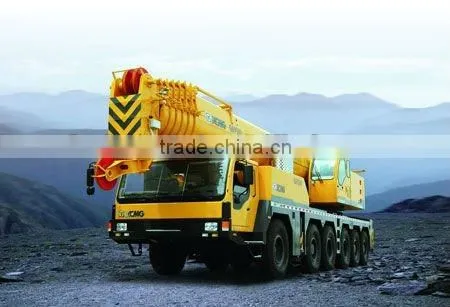

XCMG All Terrain Crane QAY2401. Max. lifting capacity: 240t
2. Max. lifting height: 85.7m
XCMG All Terrain Crane QAY240, XCMG All Terrain Crane , All Terrain Crane , 240tons crane
Based on the success of QAY130, QAY160, and QAY200 all terrain truck cranes, QAY 240 is another new all terrain product developed by our company through extensive market research and technical demonstration. It inherits the successful experience, and adopts new materials, new technologies, and the most advanced steed structure design and computer control technique. The main hydraulic parts and load bearing materials adopts international parts and components, effectively improving the product’s performance and reliability. The application of hydropneumatic suspension all terrain chassis, electronic proportional control system, limit load control variable hydraulic system, U jib technique greatly improving the performance and grade of the machine. The machine has modern design, compact and reasonable layout, and excellent travel and lifting performance. QAY240 which represented the highest design level at that time attended the 2007 Munich Bauma Exhibition. It is the first time for the Chinese high-level crane shown on the international stage, extending the domestic crane’s influence in the world.
Classification |
Item |
Unit |
QAY240 |
|
Dimension |
Overall length |
mm |
15918 |
|
Overall width |
mm |
3080 |
||
Overall height |
mm |
4000 |
||
|
Weight |
Overall weight in travel |
kg |
72000 |
|
Axle load |
Axle 1, 2 |
kg |
12000 |
|
Axle 3, 4 |
kg |
12000 |
||
Axle 5 |
kg |
12000 |
||
|
Power |
Superstructure engine |
Rated power |
kw/(r/min) |
194/2100 |
Rated torque |
N.m/(r/min) |
1050/1400 |
||
Rated speed |
r/min |
2100 |
||
Carrier engine |
Rated power |
kw/(r/min) |
420/1800 |
|
Rated torque |
N.m/(r/min) |
2700/1080 |
||
Rated speed |
r/min |
1800 |
||
Max. travel speed |
km/h |
71 |
||
Min. turning diameter |
m |
24 |
||
Min. ground clearance |
mm |
280 |
||
Approach angle |
° |
25 |
||
Departure angle |
° |
18 |
||
Braking distance (at 30km/h) |
m |
≤10 |
||
Max. grade ability |
% |
48 |
||
Fuel consumption for 100km |
l |
90 |
||
Classification |
Item |
Unit |
QAY240 |
||
Main performance |
Max. rated total lifting capacity |
t |
240 |
||
Min. rated working radius |
m |
3 |
|||
Turning radius at turntable tail (counterweight) |
mm |
480 |
|||
Max. lifting torque |
Base boom |
kN.m |
7797 |
||
Fully extended boom |
kN.m |
2940 |
|||
Outrigger span |
Longitudinal/lateral |
m |
9.625/8.7(6.5) |
||
Lifting height |
Base boom |
m |
12.6 |
||
Fully extended boom |
m |
65.6 |
|||
Fully extended boom+ jib |
m |
85.7 |
|||
Boom length |
Base boom |
m |
13.2 |
||
Fully extended boom |
m |
67 |
|||
Fully extended boom+ jib |
m |
87 |
|||
Working speed |
Boom luffing |
Boom raising |
m |
65 |
|
Boom extension/retraction |
Full extension/full retraction |
m |
650 |
||
Max. swing speed |
r/min |
1.6 |
|||
Outrigger telescoping time |
Outrigger beam |
Extension |
S |
50 |
|
Retraction |
S |
40 |
|||
Outrigger jack |
Extension |
S |
50 |
||
Retraction |
S |
45 |
|||
Lifting speed (single rope, layer 4) |
Main winch |
No load |
m/min |
115 |
|
Aux. winch |
No load |
m/min |
118 |
||
It's a good quality machine, made by XCMG.
We exported it everywhere of the world.
Contact me to get the most detailed specification of this truck crane.
Truck Crane,Crawler Crane,Concrete Pump,Aerial Platform Fire Truck,Wheel
Loader,Compactor,Asphalt Concrete Paver, Soil stabilizer mixing plant,
Excavator, Motor Grader, Rotary Drilling Rig, Compact Wheel Loader
Thank you!
