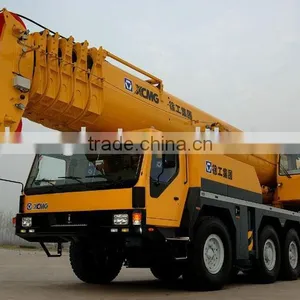

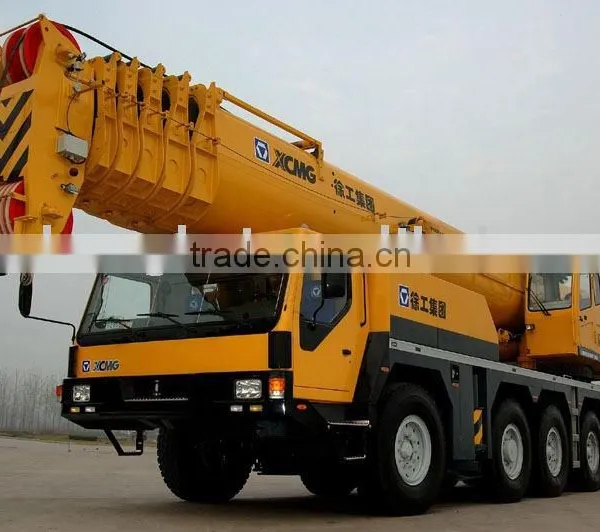

Help CenterQAY200 All Terrain Crane
Related Products
Specifications
QAY200 All Terrain Crane is adoption of 6-axle all terrain crane chassis, automatic mechanical transmission.
QAY200 All Terrain Crane is adoption of 6-axle all terrain crane chassis, automatic mechanical transmission, hydro-pneumatic suspension, full-width drivers cab, fully-covered decking plate, 6-section boom with oval profile, 2-section side-mounted jib, single cylinder for front elevation, high-positioned turntable tail, low-suspended combined counterweight, independent engine for superstructure, inner-mounted double independent winches, outside- meshed slewing ring, double two-stage H-shaped outriggers, 360°full swing, constant output variable displacement system, electro-hydraulic pilot proportional control. The crane has power lifting capacity, strong drive, good passing ability, wide application and reliable operation.
QAY200 All Terrain Crane Main Specifications
No. |
Item |
Unit |
Parameter |
1 |
Total mass in travel state |
kg |
72000 |
2 |
Overall length for travel |
mm |
16200 |
3 |
Overall width for travel |
mm |
≤3000 |
4 |
Overall height for travel |
mm |
≤4000 |
5 |
Chassis length |
mm |
14240 |
6 |
Max. travel speed |
km/h |
71 |
7 |
Min. stable travel speed |
km/h |
2 |
8 |
Drive type |
|
12×6 |
9 |
Steering type |
|
12×10 |
10 |
Approach angle |
° |
≥25 |
11 |
Departure angle |
° |
≥17.8 (24) |
12 |
Max. grade-ability |
% |
≥55 |
13 |
Carrier engine rated output |
kw/rpm |
380/1800 |
14 |
Superstructure engine rated output |
kw/rpm |
162/2100 |
15 |
Outrigger type |
|
HDouble H |
16 |
Outrigger span(longitudinal×lateral ) |
mm |
9625×8700 |
17 |
Min. turning diameter |
mm |
≤23000 |
18 |
Max. rated lifting capacity |
kg |
200000 |
19 |
Jib max. lifting capacity |
kg |
12000 |
20 |
Min. rated working radius |
m |
3 |
21 |
Max. load moment |
kN .m |
6350(9m×72t) |
22 |
Boom elevation |
° |
0∼82 |
23 |
Boom length |
m |
13.8 |
24 |
Fully extended boom length |
m |
61 |
25 |
Base boom lifting height |
m |
14.5 |
26 |
Fully extended boom lifting height |
m |
59.5 |
27 |
Jib length |
m |
11.55 20 |
28 |
Swing speed |
r/min |
0∼2 |
29 |
Single rope hoist speed |
m/min |
0∼120 |
