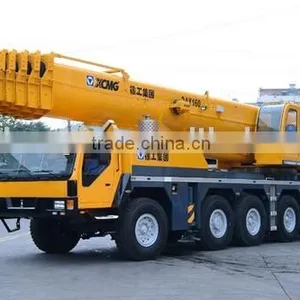

Help CenterQAY160 All Terrain Crane
Related Products
Specifications

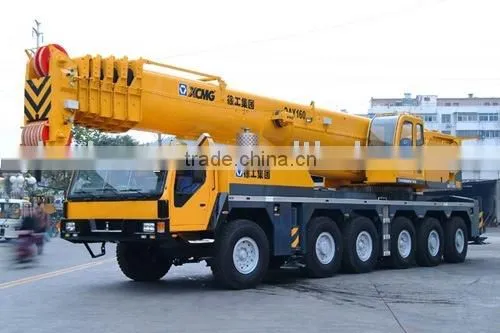

QAY160 All Terrain Crane is adoption of 6-axle all terrain crane chassis, automatic mechanical transmission.
QAY160 All Terrain Crane is adoption of 6-axle all terrain crane chassis, automatic mechanical transmission, hydro-pneumatic suspension, full-width drivers cab, fully-covered decking plate, 6-section boom with oval profile, 2-section side-mounted jib, single cylinder for front elevation, high-positioned turntable tail, low-suspended combined counterweight, independent engine for superstructure, double inner-mounted independent winches, outside- meshed slewing ring, double two-stage H-shaped outriggers, 360°full swing, total output variable displacement system, electro-hydraulic pilot proportional control. The crane has power lifting capacity, strong drive, good passing ability, wide application and reliable operation.
QAY160 All Terrain Crane Main Specifications
1Technical Data in Travel State
Classificatory |
Item |
Unit |
Parameter |
|
Dimension |
Overall length |
mm |
15900 |
|
Overall width |
mm |
3000 |
||
Overall height |
mm |
4000 |
||
Wheel base |
Axle 1, Axle 2 |
mm |
2750 |
|
Axle 2,Axle 3,Axle 4,Axle 5, Axle 6 |
mm |
1650 |
||
Axle 3, axle 4 |
mm |
2000 |
||
Track |
mm |
2590 |
||
|
Mass |
Total mass in travel state |
kg |
70900 |
|
Axle load |
Axle 1, Axle 2 |
kg |
11635 |
|
Axle 3, Axle 4 |
kg |
11815 |
||
Axle 5, Axle 6 |
kg |
12000 |
||
Power |
Crane superstructure engine |
Rated power |
kW/(r/min) |
162/2100 |
Rated torque |
N.m/(r/min) |
854/1400 |
||
Rated speed |
r/min |
2100 |
||
Crane carrier engine |
Rated power |
kW/(r/min) |
380/1800 |
|
Rated torque |
N.m/(r/min) |
2400/1200 |
||
Rated speed |
r/min |
2000 |
||
Travel performance |
Travel speed |
Max. travel speed |
km/h |
71 |
Min. stable travel speed |
km/h |
2.1 |
||
Min. turning diameter |
m |
24 |
||
Min. ground clearance |
mm |
278 |
||
Approach angle |
° |
25 |
||
Departure angle |
° |
20 |
||
Braking distance (at 30km/h with full load) |
m |
≤ 10 |
||
Max. grade-ability |
% |
48 |
||
Fuel consumption for 100km |
l |
80 |
||
