XCMG All Terrain Crane QAY180, XCMG All Terrain Crane , All Terrain Crane , 180tons Crane

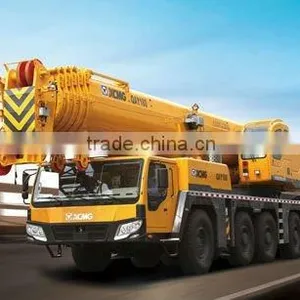

XCMG All Terrain Crane QAY180, XCMG All Terrain Crane , All Terrain Crane , 180tons Crane thumbnail-1

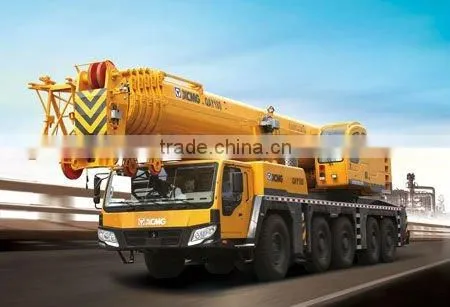

XCMG All Terrain Crane QAY180, XCMG All Terrain Crane , All Terrain Crane , 180tons Crane photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
construction
Rated Loading Capacity:
180tons
Contact Supplier Request Quote Chat Now
Shandong Zhongkai Machinery & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application construction
Rated Loading Capacity 180tons
Rated Lifting Moment 5420
Max. Lifting Load 180tons, 180 ton
Max. Lifting Height 70m
Span 7.5m
Place of Origin Jiangsu, China
Brand Name XCMG, XCMG
Model Number QAY180, QAY180

Specifications

XCMG All Terrain Crane QAY180
1. Max. lifting capacity: 180t
2. Max. lifting height: 79m



XCMG All Terrain Crane QAY180, XCMG All Terrain Crane , All Terrain Crane , 180tons crane



•QAY180 new terrain crane integrates 222 patent techniques, adopts 38 new patents techniques, and shows 8 technical highlights.
•The overall length in travel is only 15.77m, the weight is 60t, the chassis length is 13.77m, and the minimum turning radius is 10m. The whole configuration includes 6-segment boom with the length of 62m and 3-segment jib with the length of 28m. 6 counterweight combinations can finish nearly 30000 working conditions.
•Adopt the imported Benz EFI engine with strong power system and imported 12-gear automatic control transmission. The 2nd, 4th, and 5th axles are the drive axle. The steering form is 10x10 full-axle steering.
•Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
•The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
•The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
•The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
•The comfortable cabs and outrigger operation completely show the humanity design concept.
•Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.







Dimension

Unit

QAY180

Overall length

mm

15770

Overall width

mm



Overall height

mm

4000

Weight



Overall weight in transport

kg

60000

Front axle load

kg



Rear axle load

kg



Power



Engine model



TAD720VE    OM460LA.E3A/1

Engine rated power

kW/(r/min)

162/2100   360/1800

Engine rated torque

N.m/(r/min)

2200/1100

Travel



Max. travel speed

km/h

80

Min. turning diameter

m

20

Min. ground clearance

mm



Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

50

Fuel consumption for 100km

L



Main performance



Max. rated total lifting capacity

t

180

Min. rated working radius

mm



Turning radius at turntable tail

m



Max. lifting torque

kN.m

5420

Base boom

m



Fully extended boom

m

62

Fully extended boom+ jib

m



Longitudinal outrigger span

m

8.3

Lateral outrigger span

m

8.9

Working speed



Boom luffing time

s



Boom full extension time

s



Max. swing speed

r/min



Max. speed of main winch (single rope) (no load)

m/min



Max. speed of aux. winch (single rope) (no load)

m/min







It's a good quality machine, made by XCMG.

We exported it everywhere of the world.



Contact me to get the most detailed specification of this truck crane.

Truck Crane,Crawler Crane,Concrete Pump,Aerial Platform Fire Truck,Wheel

Loader,Compactor,Asphalt Concrete Paver, Soil stabilizer mixing plant,

Excavator, Motor Grader, Rotary Drilling Rig, Compact Wheel Loader



Thank you!
