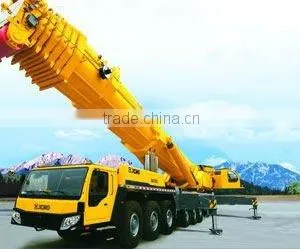

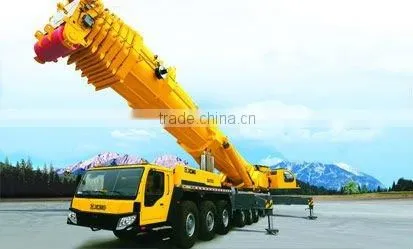

XCMG All Terrain Crane QAY200

Name: XCMG All Terrain Crane QAY200
Brand: XCMG
SKU: 112293705
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

construction

Rated Lifting Moment:

6350kn.m

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction

Rated Lifting Moment 6350kn.m

Max. Lifting Load 200T

Max. Lifting Height 81m

Span 9.625m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QAY200

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XCMG All Terrain Crane QAY200
1. Max. rated lifting capacity: 200ton
2. Competitive price
3. Reliable quality

XCMG All Terrain Crane QAY200

Item	Unit	Parameter
Total mass in travel state	kg	72000
Overall length for travel	mm	16200
Overall width for travel	mm	≤3000
Overall height for travel	mm	≤4000
Chassis length	mm	14240
Max. travel speed	km/h	71
Min. stable travel speed	km/h	2
Drive type		12×6
Steering type		12×10
Approach angle	°	≥25
Departure angle	°	≥17.8 (24)
Max. grade-ability	%	≥55
Carrier engine rated output	kw/rpm	380/1800
Superstructure engine rated output	kw/rpm	162/2100
Outrigger type		Double H
Outrigger span(longitudinal×lateral )	mm	9625×8700
Min. turning diameter	mm	≤23000
Max. rated lifting capacity	kg	200000
Jib max. lifting capacity	kg	12000
Min. rated working radius	m	3
Max. load moment	kN.m	6350(9m×72t)
Boom elevation	°	0~82
Boom length	m	13.8
Fully extended boom length	m	61
Base boom lifting height	m	14.5
Fully extended boom lifting height	m	59.5
Jib length	m	11.55, 20
Swing speed	r/min	0~2
Single rope hoist speed	m/min	0~120
