Specifications

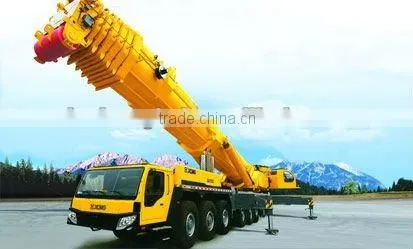

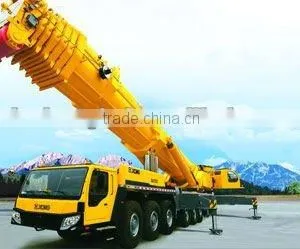

XCMG All Terrain Crane QAY1601. Max. lifting capacity: 160t
2. Max. lifting height: 79m
XCMG All Terrain Crane QAY160, XCMG All Terrain Crane , All Terrain Crane , 160tons crane
Classificatory |
Item |
Unit |
Parameter |
|
|---|---|---|---|---|
Dimension |
Overall length |
mm |
15900 |
|
Overall width |
mm |
3000 |
||
Overall height |
mm |
4000 |
||
Wheel base |
Axle 1, Axle 2 |
mm |
2750 |
|
Axle 2,Axle 3,Axle 4,Axle 5, Axle 6 |
mm |
1650 |
||
Axle 3, axle 4 |
mm |
2000 |
||
Track |
mm |
2590 |
||
|
Mass |
Total mass in travel state |
kg |
70900 |
|
Axle load |
Axle 1, Axle 2 |
kg |
11635 |
|
Axle 3, Axle 4 |
kg |
11815 |
||
Axle 5, Axle 6 |
kg |
12000 |
||
Power |
Crane superstructure engine |
Rated power |
kW/(r/min) |
162/2100 |
Rated torque |
N.m/(r/min) |
854/1400 |
||
Rated speed |
r/min |
2100 |
||
Crane carrier engine |
Rated power |
kW/(r/min) |
380/1800 |
|
Rated torque |
N.m/(r/min) |
2400/1200 |
||
Rated speed |
r/min |
2000 |
||
Travel performance |
Travel speed |
Max. travel speed |
km/h |
71 |
Min. stable travel speed |
km/h |
2.1 |
||
Min. turning diameter |
m |
24 |
||
Min. ground clearance |
mm |
278 |
||
Approach angle |
° |
25 |
||
Departure angle |
° |
20 |
||
Braking distance (at 30km/h with full load) |
m |
≤ 10 |
||
Max. grade-ability |
% |
48 |
||
Fuel consumption for 100km |
l |
80 |
||
Technical Data for Lifting Operation
Classificatory |
Item |
Unit |
Parameter |
|||
|---|---|---|---|---|---|---|
|
Main performance |
Max. total rated lifting capacity |
t |
160 |
|||
Min. rated working radius |
m |
3 |
||||
Turning radius at turntable tail |
mm |
4850 |
||||
Max. load moment |
Base boom |
kN.m |
5282 |
|||
Fully extended boom |
kN.m |
2140 |
||||
Outrigger span |
Longitudinal |
m |
9.625 |
|||
Lateral |
m |
8.7(6.5) |
||||
Lifting height |
Base boom |
m |
14.3 |
|||
Fully extended boom |
m |
56.3 |
||||
Fully extended boom + Jib |
m |
79 |
||||
Boom length |
Base boom |
m |
13.6 |
|||
Fully extended boom |
m |
60 |
||||
Fully extended boom + Jib |
m |
80 |
||||
Jib offset |
° |
0,15,30 |
||||
|
Working speed |
Boom elevating time |
Boom raising |
s |
90 |
||
Boom telescoping time |
Boom full extension |
s |
600 |
|||
Boom full retraction |
s |
600 |
||||
Max. swing speed |
r/min |
2 |
||||
Hoist speed (single rope at 4th layer) |
Main winch |
No load |
m/min |
120 |
||
Aux. winch |
No load |
m/min |
110 |
|||
Crane exterior noise |
db(A) |
≤118 |
||||
At seated position |
db(A) |
≤90 |
||||
It's a good quality machine, made by XCMG.
We exported it everywhere of the world.
Contact me to get the most detailed specification of this truck crane.
Truck Crane,Crawler Crane,Concrete Pump,Aerial Platform Fire Truck,Wheel
Loader,Compactor,Asphalt Concrete Paver, Soil stabilizer mixing plant,
Excavator, Motor Grader, Rotary Drilling Rig, Compact Wheel Loader
Thank you!
