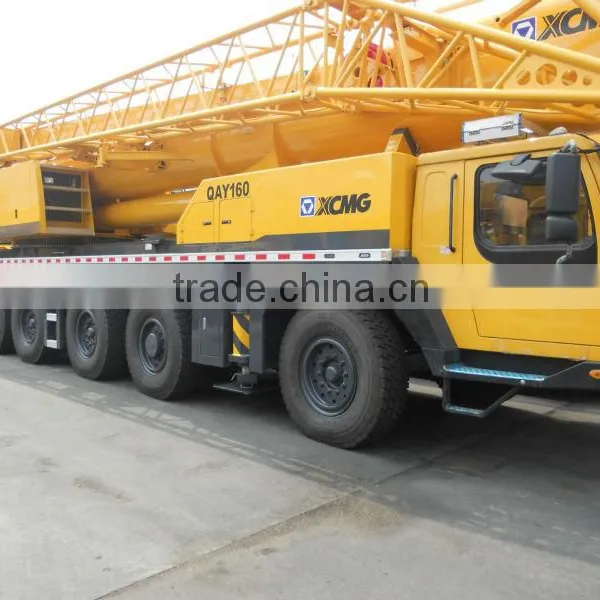

XCMG Truck Crane All Terrain Crane QAY160

Name: XCMG Truck Crane All Terrain Crane QAY160
Brand: XCMG
SKU: 112293635
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Rated Loading Capacity:

160t

Rated Lifting Moment:

5282KN.m

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 160t

Rated Lifting Moment 5282KN.m

Max. Lifting Load 160t

Max. Lifting Height 79m

Span 9.625m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QAY160

Specifications

XCMG Truck Crane All Terrain Crane QAY160
1. Max. rated lifting capacity: 160ton
2. Max. lifting height:79m

160ton XCMG Truck Crane All Terrain Crane QAY160

Parameter

Classificatory	Item		Unit	Parameter
Dimension	Overall length		mm	15900
	Overall width		mm	3000
	Overall height		mm	4000
	Wheel base	Axle 1, Axle 2	mm	2750
		Axle 2,Axle 3,Axle 4,Axle 5, Axle 6	mm	1650
		Axle 3, axle 4	mm	2000
	Track		mm	2590
Mass	Total mass in travel state		kg	70900
	Axle load	Axle 1, Axle 2	kg	11635
		Axle 3, Axle 4	kg	11815
		Axle 5, Axle 6	kg	12000
Power	Crane superstructure Engine	Rated power	kW/(r/min)	162/2100
		Rated torque	N.m/(r/min)	854/1400
		Rated speed	r/min	2100
	Crane carrier engine	Rated power	kW/(r/min)	380/1800
		Rated torque	N.m/(r/min)	2400/1200
		Rated speed	r/min	2000
Travel performance	Travel speed	Max. travel speed	km/h	71
	Travel speed	Min. stable travel speed	km/h	2.1
	Min. turning diameter		m	24
	Min. ground clearance		mm	278
	Approach angle		°	25
	Departure angle		°	20
	Braking distance (at 30km/h with full load)		m	≤ 10
	Max. grade-ability		%	48
	Fuel consumption for 100km		l	80

Technical Data for Lifting Operation
	Item				Unit	Parameter
Main Performace	Max. total rated lifting capacity				t	160
	Min. rated working radius				m	3
	Turning radius at turntable tail				mm	4850
	Max. load moment	Base boom			kN.m	5282
		Fully extended boom			kN.m	2140
	Outrigger span	Longitudinal			m	9.625
		Lateral			m	8.7(6.5)
	Lifting height	Base boom			m	14.3
		Fully extended boom			m	56.3
		Fully extended boom + Jib			m	79
	Boom length	Base boom			m	13.6
		Fully extended boom			m	60
		Fully extended boom + Jib			m	80
	Jib offset				°	0,15,30
Working speed	Boom elevating time		Boom raising		s	90
	Boom telescoping time		Boom full extension		s	600
			Boom full retraction		s	600
	Max. swing speed				r/min	2
	Hoist speed (single rope at 4th layer)		Main winch	No load	m/min	120
			Aux. winch	No load	m/min	110
	Crane exterior noise				db(A)	≤118
	At seated position				db(A)	≤90
