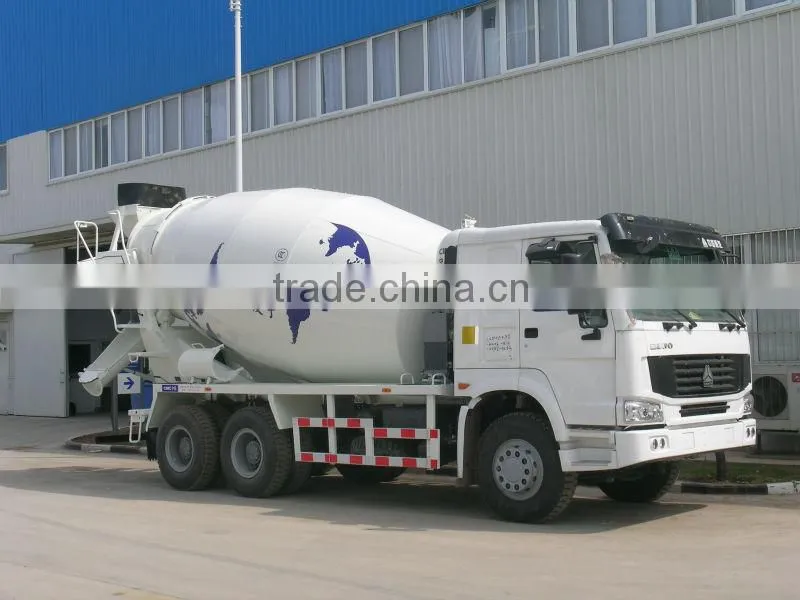

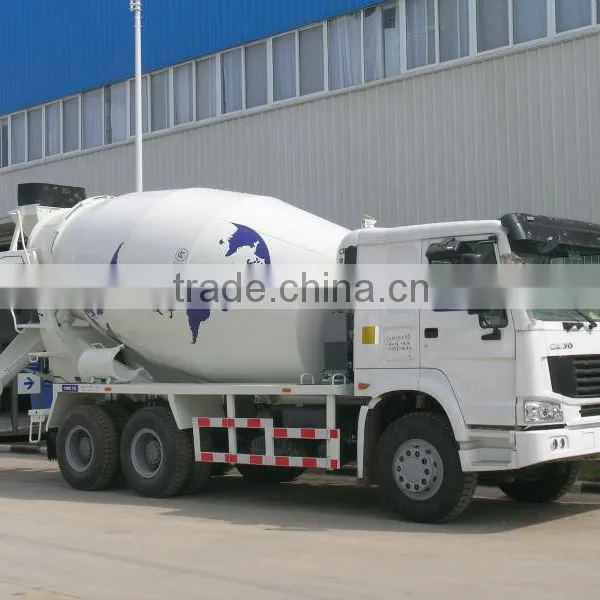

CIMC 6x4 Concrete Mixer Truck CLY5257GJB5

Name: CIMC 6x4 Concrete Mixer Truck CLY5257GJB5
Brand: CIMC
SKU: 112283891
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

CIMC

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name CIMC

Model Number CLY5257GJB5

Weight 13870kg

Dimension(L*W*H) 9130x2500x3850mm

Power(W) 246kw

Certification IS09001, CCC, ISO/TS16949

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CIMC 6x4Concrete Mixer Truck CLY5257GJB5
1.Brand: CIMC
2.Mixing Volume: 9 cbm
3.Chassis Brand: CLY5257GJB5

CIMC 6x4Concrete Mixer Truck CLY5257GJB5

System	Item	Parameter	Item	Parameter
Overall dimension parameter	Total length(mm)	9130	Engine model	WD615.95E
	Total width(mm)	2500	Engine type
	Total height(mm)	3850
	Tank body dimension	4990×2300	Displacement (L)	9.726
	Wheel base(mm)	3625+1350
	Tread F/R(mm)	2022,2041/1830	Rated power(kw/ps)	247/2200
	F/R overhang(mm)	1500/2655,2630,2625	Max.torque(N.m/rpm)	1350/(1300-1600)
	Min. Ground clearance(mm)	270	Fuel type	diesel
	Angle of approach /departure(°)	16/26
Performance parameter	Chassis manufacturer	SINO TRUK	Max. speed	90
	Chassis type	ZZ1257N3847C	Max.gradability	45
	Slipping distance (initial speed 50km/h)	897	Min.turning diameter	21
	Braking distance(m)	≤9.0	Max.braking gradient	≥30
	Fuel consumption	50	Max. rated total mass(kg)	25000
	(demarcated situation)(L/100km)
	Kerb mass (kg)	13450	F/R axle(rated)	7000/18000
	F/R axle(kg)	4832/8618	Rated load mass	11420
Tank body Parameter	Mixing capacity /tank volume(m3)	8	Tank lean(°)	13/12
	Feeding speed(m3/min)	≥3	Top feed hopper Dimension(mm)	≥650
	Unloading speed(m3/min)	≥2	Ground clearance of top feed hopper(m)	3.8
	Discharge residue rate(%)	≤0.5

Item		Standard configuration	Optional
Chassis configuration	Engine	WD615.95E	WD615.95(247KW)
	Clutch	GF420J type, F420mm, single disc, dry type
	Transmission	HW18709 type, 9 speeds	HW18710 10 speeds

	Rear axle	ST16 strengthened wheel reduction axle, final reduction ratio: 5.73
	Front axle	Integral fist type driven axle, load capacity: 7500Kg
	Suspension	Leaf spring, front 10 discs, with double-way shock absorber, rear 12 discs,
	System
	Tyre	11.00-20 bias type, 10 pieces
	Air -condition	SINO TRUK special air condition
	Cab type	HW76 type , all mental hydraulic tiltig type
Special configuration	High pressureoil Pump	Eaton ACA542337R0B00MA	ACA542337R0B00MA
			A4VTG90HW-R
			A4VTG90HW-R
			PV089MHR20DBC13N
	Hydraulic motor	Eaton HHD543321BB1B1K1K	HHD543321BB1B1K1K
			ZF,PLM-9
			AA2FM80
			(D)MF089V20CBN113535
	Reducer	ZF P4300	(A)577L
			(B)PLM-9
			(C)ZF P4300
			(C)ZF P5300
			(D)TOP P68
	Wash rack		Top wash rack
		Tool box	Extended wheel cover
