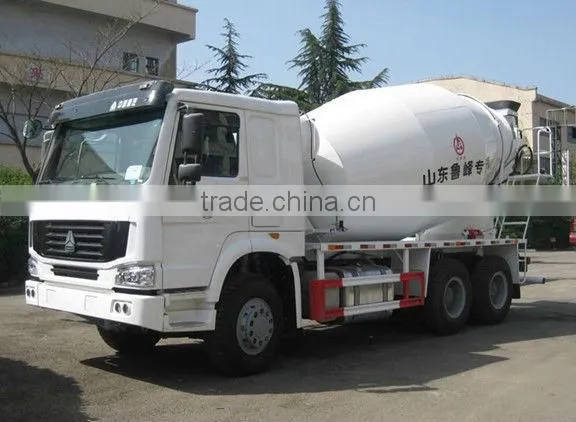

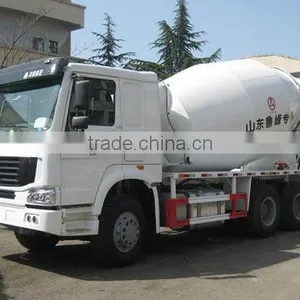

HOWO 6x4 Concrete Mixer Truck

Name: HOWO 6x4 Concrete Mixer Truck
Brand: Lufeng
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	Lufeng
Model Number:	9cbm Concrete Mixer Truck	Weight:	13870kg	Dimension(LWH):	9125x2495x3790mm
Power(W):	247000	After-sales Service Provided:	Engineers available to service machinery overseas

HOWO 6x4Concrete Mixer Truck
1.Brand: Lufeng
2.Mixing Volume: 9cbm
3.Chassis Brand: SINOTRUK HOWO

HOWO 6x4 Concrete Mixer Truck

MAIN DESCRIPTION
Overall Dimensions	9125mm2495mm3790mm(LWH)
Tare Weight	13870kg	Payload	22500kg
Front Overhang	1500mm	Rear Overhang	2650mm
Wheelbase	3625mm+1350mm	Track (F/R)	2022mm/1830mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1257N3641W, driving type 6x4
Cab	HW76, left hand drive, air-conditioner, one sleeper
Engine	SINOTRUK WD615.69, 336hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Gear Box	HW9, torque 1800Nm, No. of speeds: 9 forward & 1 reverse
Traversing Mechanism	German ZF8098, turning system pressure 18MPa
Clutch	GF420J, Single-plate dry clutch
Rear Axle	ST16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	9cbm
Water Tank Volume	400L
Hydraulic Pump	Brand: ARK, Italy
Motor	Brand: ARK, Italy
Speed Reducer	Brand: TOP, Italy
Mixing Drum	Body steel plate thickness 6mm, Front end thickness 8mm.

Thank you for your inquiry!

Shandong Zhongkai Machinery & Trade Co., Ltd.: Contact namejunxia yan; Phone0086-538-6625919; AddressNorth Head Of Xiwang Road, Qingchun Entrepreneurship Development Zone, Taishan
