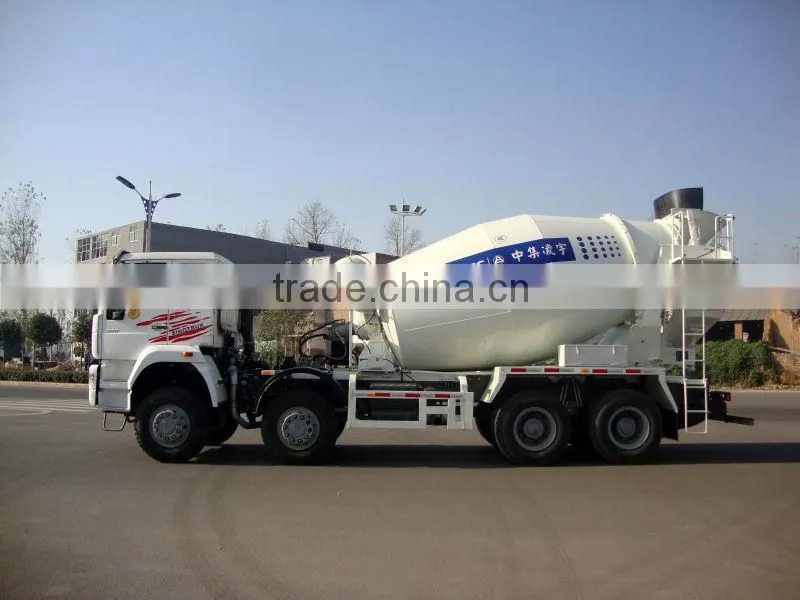

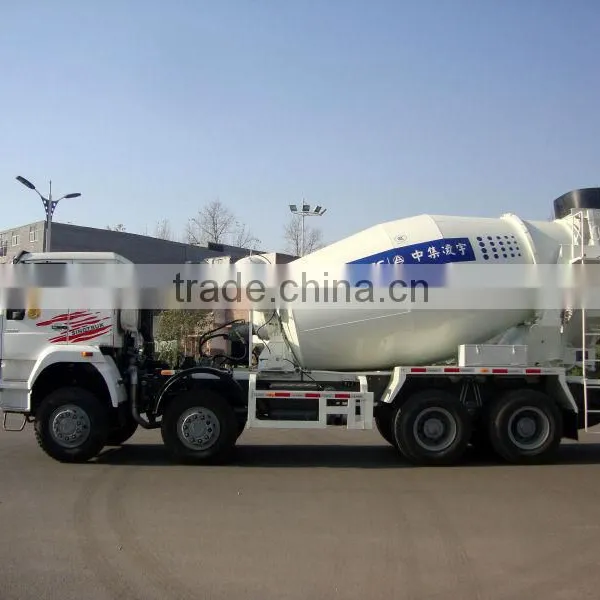

CIMC 6x4 Concrete Mixer Truck CLY5257GJB3

Name: CIMC 6x4 Concrete Mixer Truck CLY5257GJB3
Brand: CIMC
SKU: 112283909
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

CIMC

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name CIMC

Model Number CLY5257GJB3

Weight 13870kg

Dimension(L*W*H) 9810x2496x3950mm

Power(W) 336hp

Certification IS09001, CCC, ISO/TS16949

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CIMC 6x4Concrete Mixer Truck CLY5257GJB3
1.Brand: CIMC
2.Mixing Volume: 12 cbm
3.Model: CLY5257GJB3

CIMC 6x4Concrete Mixer Truck CLY5257GJB3

Model: CLY5257GJB3
Overall size (mm)	9810 (L)2496(W)3950 (H)
Tank body dimension(mm)	5370*2300
Wheel base (mm)	4025+1350
Tread f/r (mm)	2022/1830
Max. Speed (km/h)	97
Chassis
Manufacturer	SINO Motors. Ltd
Model	ZZ1257N4048W
Steering system	Imported ZF 8098 hydraulic power steering.
Transmission	Manual
Brake system	Dual circuit air-pressure braking system
High pressure oil pump	ARK pump, Italy
Hydraulic motor	ARK motor, Italy
Reducer	PMB7asp, Italy
Water supply system	Water supply by air pressure (450L water tank), homemade sprinkler.
Air-condition	SINO TRUK special air condition
Engine
Model	WD615.95E
Max. Power (hp)	336
Engine type	L6 , water cooling, supercharge, inter-cooler diesel engine
Fuel type	Diesel oil
Tank body parameter
Mixing volume(m³)	12
Feeding speed(m³/min)	More than or equal to 3
Unloading speed (m³/min)	More than or equal to 2
Discharge residue rate (%)	Less than 0.5
