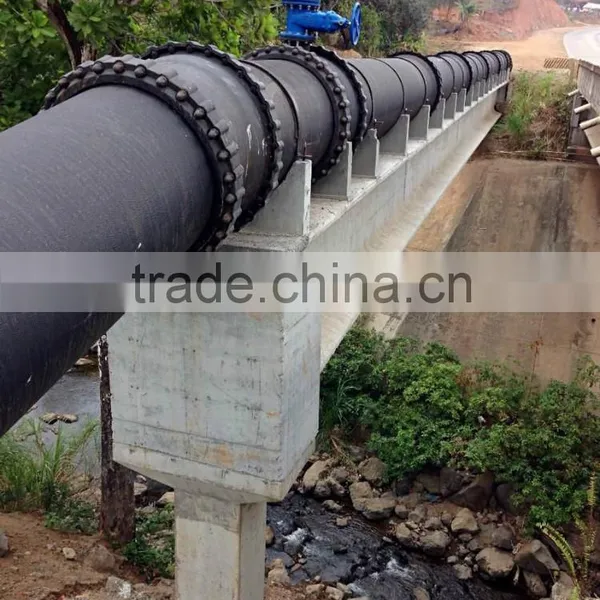

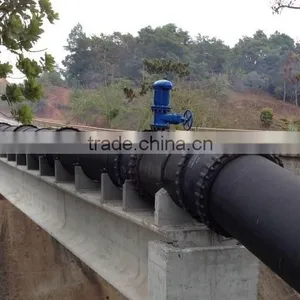

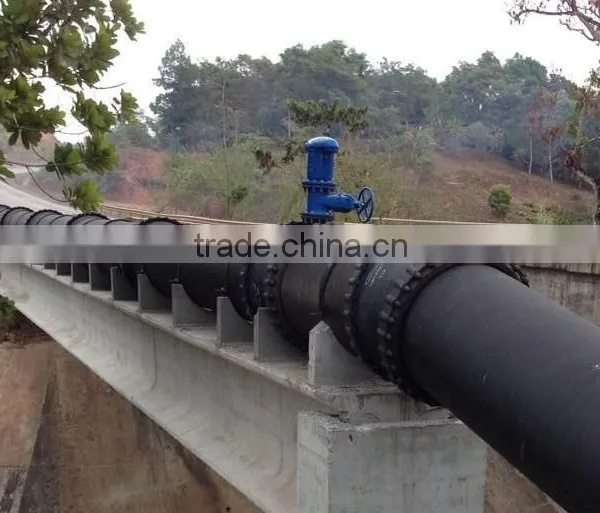

Help CenterSelf Anchored Ductile Iron Pipe
Related Products
Specifications
TF Type Self anchored Joint dutile iron Pipe,1)ISO2531 EN598 ductile iron pipe ,self-anchoring joint
2)DN80-DN2000
Brief Introduction
for TF Type Self-anchored Joint Pipe
1. TF Type Self-anchored joint
1.1 Principle
The principle of joint anchoring consist in transmitting the axial forces from one pipeline component to the following one, thus ensuring that the joint does not come apart.
Self-anchored joints allow the axial thrusts arising at particular points ( bends, tapers, tees, blank flanges) to be distributed over one or more ipes, thus avoiding installation of concrete anchor blocks.
1.2 Description
The Seal is provided by a T type socket
The axial force transmission is through a mechanical arrangement independent of that providing the seal , comprising:
- works applied weld bead on the pipe spigot
- a one-piece anchoring locking ring, with a curved external profile, whick abuts against the weld bead
- a special gland, which blocks the locking ring.
- iron bolts
2. Assembly – TF type self-anchored joint
Assembly of TF type self-anchored joint is achieved by pushing a spigot into a T type socket, then holding it in position with an anchoring system comprising a locking ring and bolted gland.
If a pipes is cut on site, the spigot has to be chamfered and anchor bead has to welded on.
