Specifications

     LED Control Box RGB Controller 5m 5050 wireless IR Remote 24Key

Packaging & Delivery


Packaging Detail:      standard package: carton

Delivery Detail:          3 -5days

Feature:

1. Working temperature:-20 -60 °C Supply Voltage: DC12V (DC5V&DC24 are available)

2. Product Size:L63*W35*H 22mm Package Size: L105*W65*H 40mm

3. Net weight: 50g Gross weight: 70g

4.Connecting mode: Common anode

5. Max output power: 30W (5V),72W(12V),144W(24V)

6. With speed and brightness adjustment function

7. Color selection with the specified function, a control lock function

8. A remote control can handle MORE THAN ONE RGB Lamp

9. Easy connection, simplicity usage

Controller:
Working temperature:           -20-60°C
Input voltage:                      DC 12-24V
Connection mode:                Common anode
Output current:<6A
Static power consumption:    <1W
Controller size:                    L61 Χ W35 Χ H22 mm
Packing size:                        L90ΧW60ΧH40mm
Net weight:                          49g
Gross weight:                       57g

Remote control:
Working temperature:           -20-60°C
power supply mode:button battery

Direction for using :

1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2.Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.

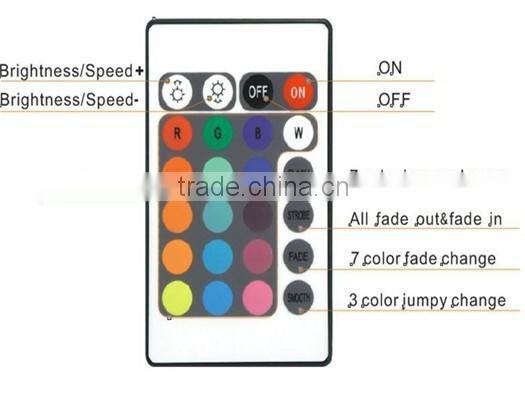

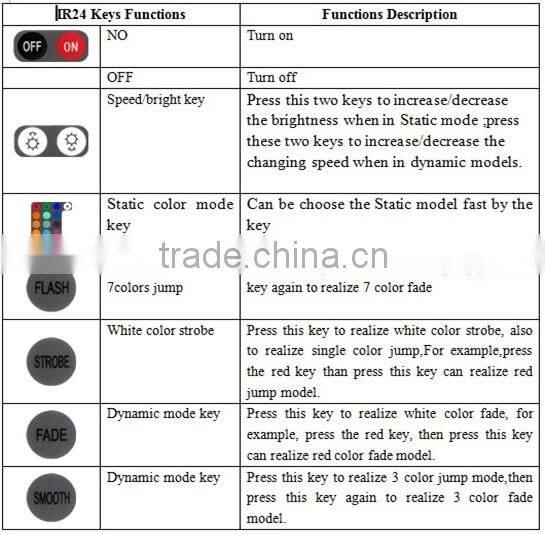

3.The key-press functions are shown in the table as below (in accordance with the key position order)

Common problem and solution method:

Warn

1.Never connect two wire directly in case of short circuit.

2.Lead wire should be connected correctly according to colors that connecting diagram offers

3.Warranty of this product is one year. During this period, we guarantee replacement or repair

4.with no charge But exclude the artificial situation of damaged of overload working.
