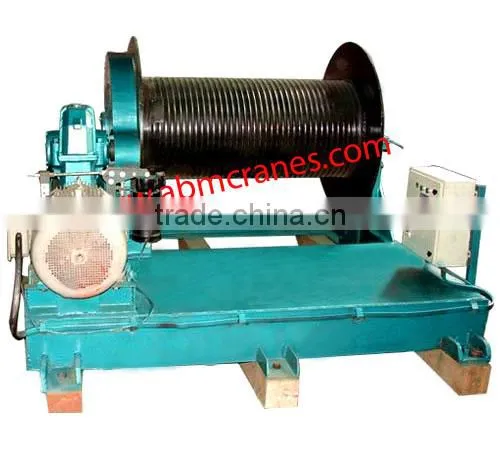

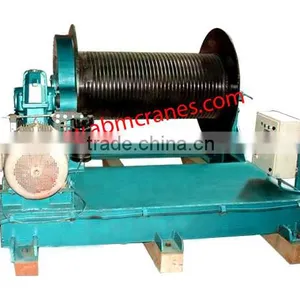

we are manufacturing & exporting Power Operated Winch Machine since 1976SALIENT FEATURES
"ABM" Power Driven Winch Machines are designed as per IS : 9507 - 1979 and are suitable for Heavy Duty applications.
Speeds other then given in Technical Data can also be available.
Generally, Winches with Right Hand Operation are manufactured, however the same can be supplied with outer side operation also as per requirement
BASE FRAME
Fabricated with Rolled Steel Sections / Plates properly ribbed, floored with Chequered plate for working area, Lifting lugs, Anchoring Holes for foundation, provided.
REDUCER
1st stage reduction with Worm Reduction Gear Box of reputed make & other reduction with open Spur Gears & Pinions.
ROPE DRUM
Steel Fabricated Drum duly machined, with flanges at both ends, winding capacity 100 mtr. of Wire Rope.
Drums with larger winding capacity is also available.
WIRE ROPE
6 x 19, IWRC construction, best plough steel confirming to IS - 2266 is supplied with Winch machine at extra cost.
MOTORS
High Starting Torque, class 'B' Insulation, 150 Starts / Hr, 415 V, 50 Hz, 3 Phase, A.C. Insulation, Squirrel Cage / Slipring Motors confirming to IS-325 of reputed make like NGEF / AEI / SIMENS etc.
CONTROL & CONTROL PANEL
The winch is operated by Push Button Station / controller at 110 V, fixed on machine.
The Control equipments like Tripple Pole Reversible Contactors, H.R.C. fuses, Pilot Lamp etc. of reputed make like EE / BCH / LT are housed in dust & Vermin Proof Steel Sheet Panel Box.
One step down transformer is also provided for safety of operating Personnel.
Overload Relay with single Phasing protection is provided at extra cost.
BRAKE
Electromagnetic / Electro Hydraulic Thruster, DOuble Shoe Type Brake and / or Hand Operated brake provided as per requirement.
LIMIT SWITCH
Rotary Gear Type Switch is provided to prevent over Hoisting / Traveling at extra cost, if required.
TEST
All machines are tested at 25% overload.
SPECIFICATION
| Item Code No. | Rope Tension in Kg. Capacity |
Rope Speed in Mtr / Min |
Rope Dia. in mm |
Motor Power in H.P. |
| ABM-FM-6220 | 1000 | 7 | 10 | 3 |
| ABM-FM-6221 | 1000 | 10 | 10 | 5 |
| ABM-FM-6222 | 2000 | 7 | 13 | 5 |
| ABM-FM-6223 | 2000 | 10 | 13 | 7.5 |
| ABM-FM-6224 | 3000 | 7 | 16 | 7.5 |
| ABM-FM-6225 | 3000 | 10 | 16 | 10 |
| ABM-FM-6226 | 5000 | 6 | 22 | 10 |
| ABM-FM-6227 | 5000 | 9 | 22 | 15 |
| ABM-FM-6228 | 8000 | 7 | 28 | 15 |
| ABM-FM-6229 | 8000 | 7.5 | 28 | 20 |
| ABM-FM-6230 | 10000 | 4.5 | 32 | 15 |
| ABM-FM-6231 | 10000 | 6 | 32 | 20 |
| ABM-FM-6232 | 12500 | 3.6 | 36 | 15 |
| ABM-FM-6233 | 12500 | 6 | 36 | 25 |
| ABM-FM-6234 | 15000 | 4 | 40 | 20 |
| ABM-FM-6235 | 15000 | 6 | 40 | 30 |
| ABM-FM-6236 | 20000 | 3 | 50 | 30 |
| ABM-FM-6237 | 20000 | 7.5 | 50 | 50 |
