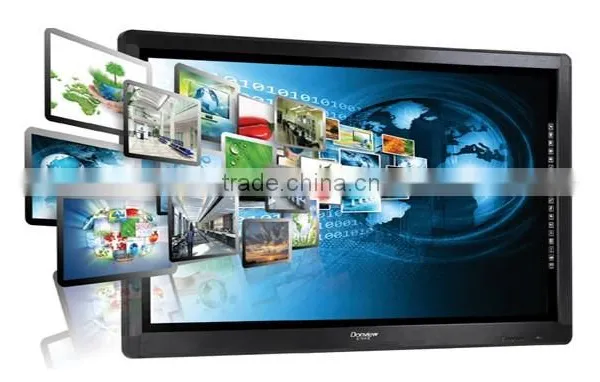

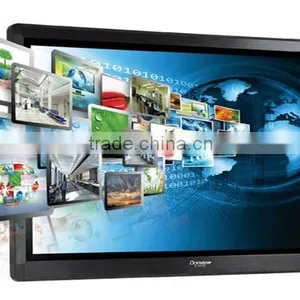

Original Donview LED interactive flat panel 65''

Model

DS-65WD-L01

Size

65inch

Screen Parameters

Screen Type

LED

Aspect Ratio

16:9

Backlight

LED

Max Resolution

1920(horizontal)×1080(vertical)

Luminance

350-400NIT

Contrast Ratio

4000-3200

Visual Angle

178°

Total Number of Colors

1.07B colors(10 )

Reliability of the whole machine

Above 30000H

TV System

Input Interface

USB input*2, HDMI input*3, VGA input*1, Y input*1, PB input*1,PR input*1, YPBPR*1, AV input*1, TV input*1, AV Audio L input*1, AV Audio R input*1.

Output Interface

Spdif output*1, AV output*1

Voice Output Power

2*8W @8Ω

Color System

PAL /SECAM/NTSC

Audio System

D/K, B/G, I, M

Audio Preset Mode

Standard,movie, sports, music, user

Input format of YPbPr supported signal

Support 480P/I, 576P/I, 720P, 1080P/I

VGA Compatibility format

VGA, SVGA, XGA, WXGA, SXGA

Power supply

A.C.:100~240v 60/50 Hz

Operating Temp/Humidity

0°~40°C;20%~80%

Power Consumption (Average)

245W

Standby Power

Within 1W

Touch Function

Touch Feature

multi touch

Operating Way

single click, double-click, right-click and drag

Writing, drawing lines, annotation

Support

Touch Correction

Support

No need to drive the driver software

Support

Connecting Mode

USB

Touch Durability

60,000,000 times

Touch Ways

Fingers, pens, or other opaque objects

Touch Feature Index

Response Time

Single touch: less than7ms, dual touch: less than 12ms.

Drifting

Without drifting

Writing and Drawing

Writing fluently, without breaking and serrate

Resistance to Light Interference

Can work normally under 30,000 illumination

Normal Work Scope

Work normally in effective range of the display screen, without blind zone

Touch Precision

4096 X 4096

Touch parameter

Calibration Precision

2mm

Mouse speed

100 Points/Second

Light Transmittance

100%

Minimum Touch Object

Above 5mm

Touch Technology

Infrared technology

Touch surface frame

Front maintenance, removable  design

Wireless interactive display (Optional)

Online music, Pictures can easily be appreciated on the laptop. Video can be wirelessly transmitted to display terminal, or be controled interactively between the two sides.

Power consumption(W)

within 2.5W,work under USB 5V voltage,electric current less than 500mA

Touch frame feature

Free from driving and correction. Waterproof, dustproof, ultra-thin light

Safely Protection

Screen protection

AG toughened glass (anti-glare) to reduce reflected light from  the glass.Reflectance less than 1%

Overall dimensions (length * width * thickness(mm)

1608*1000*75

Weight

Net weight

75KG

gross weight

98KG

Installation

Standard accessories:wall-mounted stand. All-in-one touche screen stand can be bought and upgraded to mobile one.

Warranty Period

Whole board and PC equipment warranty period: 1 year Warranty period for other accessories: 3 years

Quality certification

CCC,FCC,CE,ROHS,ISO9001,14000 Energy saving certification,Environmental protection logo,Mandatory product certification
