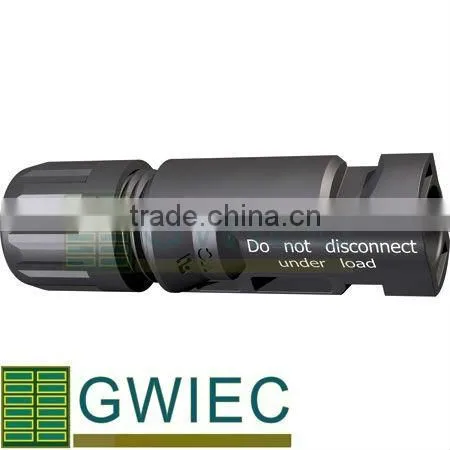

MC4 Solar Cable Female Connector
US$ 1 - 1.5
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
GWIEC
Model Number:
GEC4
Type:
Adapter
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TNS AUTOMATIC THREE-PHASE AC VOLTAGE STABILIZERUS$ 0.01 - 50MOQ: 120 Pieces -
TSD HANGING AUTOMATIC AC SINGLE PHASE VOLTAGE REGULATORUS$ 0.01 - 50MOQ: 120 Pieces
-
SVC Servo Automatic Voltage Regulators / Estabilizador / StabilizersUS$ 15.7 - 15.7MOQ: 500 Units
-
SVC 5000va Servo Automatic Voltage RegulatorUS$ 17.1 - 17.1MOQ: 100 Units
-
New LC1 D / CJX2 Telemecanique ContactorNegotiableMOQ: 500 Pieces
Brand Name
GWIEC
Model Number
GEC4
Type
Adapter
Application
Power
Gender
Female
Specifications
1. MC3 to MC4 Connector2. High quality
3. UV Resistant
4. Easy Installation
5. CE/TUV
Description:
MC4/MC3 connector is used to solar cable repid and easy installation, and it is made by PPO plastic which is UV resistant, and its contact is made by copper which has good conduction performance.
Specification:
| Rated current: 30A | Degree of protection: IP65 |
| Rated voltage: 1000V(TUV) 600(UL) | Flame class: UL94-V0 |
| Test Voltage: 6000V | Safety Class: II |
| Pin Diameter: Φ3.0mm | Suitable class: 2.5-6 mm² AWG 14/12/10 |
| Contact resistance of plug connector: 0.4mΩ | Insertion force/withdrawal force: ≤50N/≥50N |
| Contact material: Copper,Tin Plated | Connecting System: Crimp connection |
| Insulation material : TPE | Temperature range: -40~+90 centigrade |
