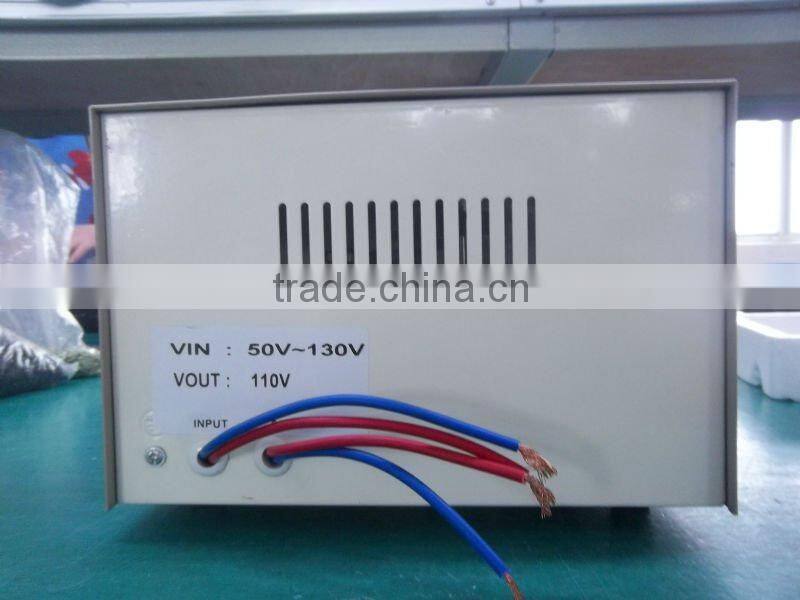

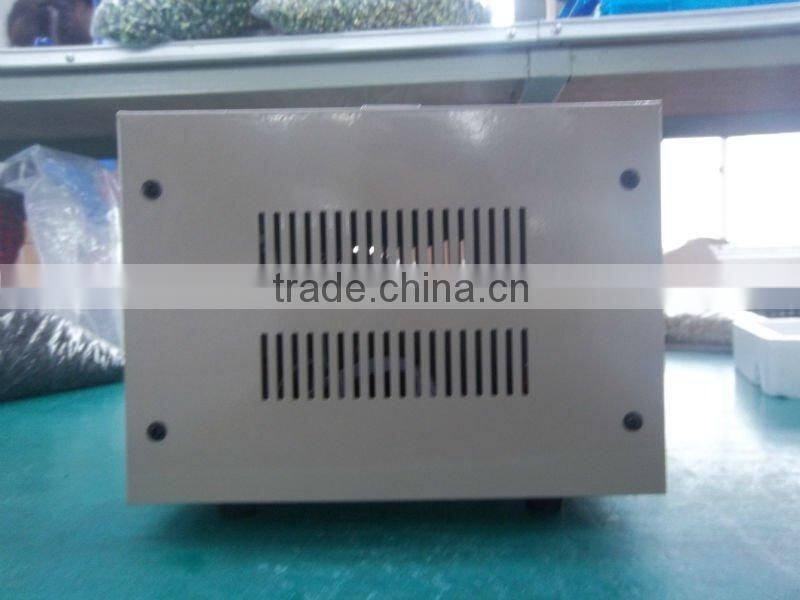

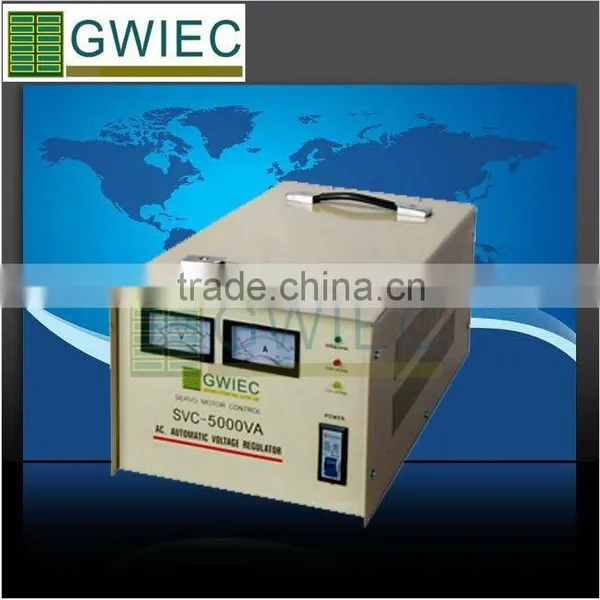

SVC 5000va Servo Automatic Voltage Regulator
US$ 17.1 - 17.1
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
SVC 5000va automatic voltage regulator
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New LC1 D / CJX2 Telemecanique ContactorNegotiableMOQ: 500 Pieces -
JR28-25 Thermal Overload Relay Hot 0.16~25.0A LR2-D13US$ 1 - 20MOQ: 100 Pieces
-
JR36-32 Thermal Overload RelayUS$ 1 - 50MOQ: 100 Pieces
-
JR36-160 Thermal Overload RelayUS$ 1 - 50MOQ: 100 Pieces
-
3UA-50 GKJRS2 Thermal Overload RelayUS$ 1 - 20MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
GWIEC
Model Number
SVC 5000va automatic voltage regulator
Usage
SVC
Phase
Single Phase
Current Type
AC
SVC servo automatic voltage regulator 5000va
Description:

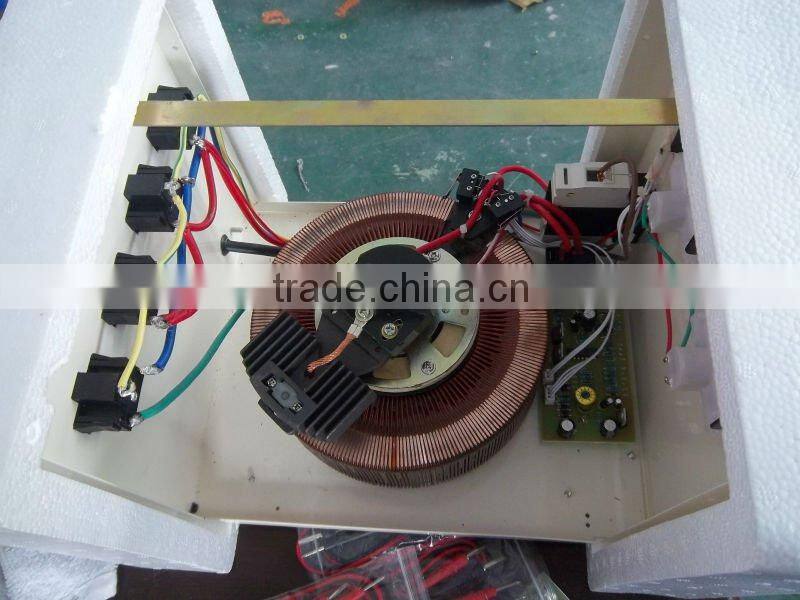

SVC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and
servomotor as well. It has excellent features, such as small waveform distortion, high efficiency,
high power factor, free from the effect or frequency variation of supply. It can be widely used in most
situations where the voltage stabilization is required.
Specification:
| Input voltage | 150V-250V |
| Output voltage | 220V±3%, 110V±3% |
| Frequency | 50/60Hz |
| Response time | < 1sec. (against 10% input voltage deviation) |
| Efficiency | > 90% |
| Ambient temperature | -10~±40°C |
| Relative humidity | < 90% |
| Waveform distortion | Non-lack fidelity waveform |
| Power factor cosφ | 0.8 |
| Insulation resistance | > 5MΩ |

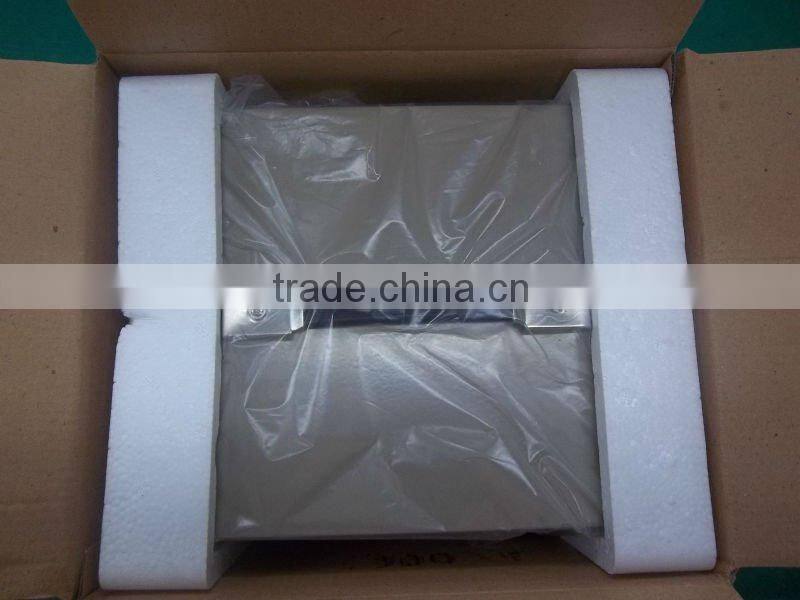

Outline and Package:
| Type | Outline (cm) | Weight (kg) | Qty/CTN | ||
| L | W | H | |||
| SVC-500VA | 18.5 | 15 | 12.5 | 3.8 | 4PCS |
| SVC-1000VA | 21 | 18 | 14.5 | 6 | 4PCS |

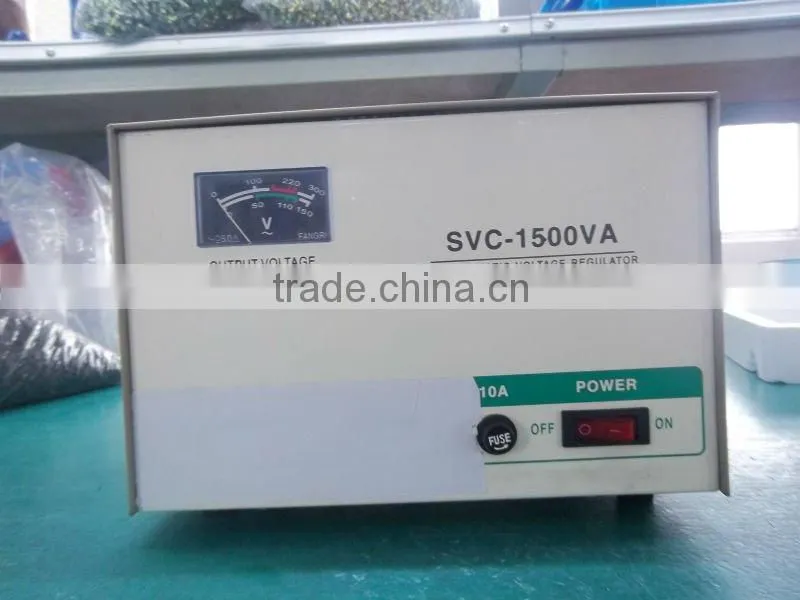

| SVC-1500VA | 21 | 18 | 14.5 | 6.5 | 4PCS |
| SVC-2000VA | 27.5 | 23.5 | 18.5 | 9.5 | 1PC |
| SVC-3000VA | 29 | 23 | 22 | 13 | 1PC |
| SVC-5000VA | 45 | 24 | 18.5 | 19 | 1PC |
| SVC-7500VA | 47 | 26 | 22 | 35 | 1PC |
| SVC-10000VA | 47 | 26 | 22 | 37 | 1PC |
| SVC-15000VA | 42 | 38 | 73 | 69 | 1PC |
| SVC-20000VA | 42 | 38 | 73 | 72 | 1PC |
| SVC-30000VA | 42 | 38 | 83 | 90 | 1PC |
| SVC-5kVA | 28 | 30 | 46 | 20 | 1PC (Cabinet) |
| SVC-10kVA | 44 | 32 | 56 | 30 | 1PC (Cabinet) |
