SVC servo Automatic Voltage Regulators / estabilizador / Stabilizers
USD $15.7 - $15.7
/ Unit
500 Units(Min.Order)
- 5000 Unit / Units per Month
- Ningbo Port
- T/T
You May Like
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | GIE | Model Number: | SVC 500va automatic voltage stabilizer |
| Usage: | SVC | Phase: | Single Phase | Current Type: | AC |
Product Description
servo typle automatic voltage stabilizer
Description:

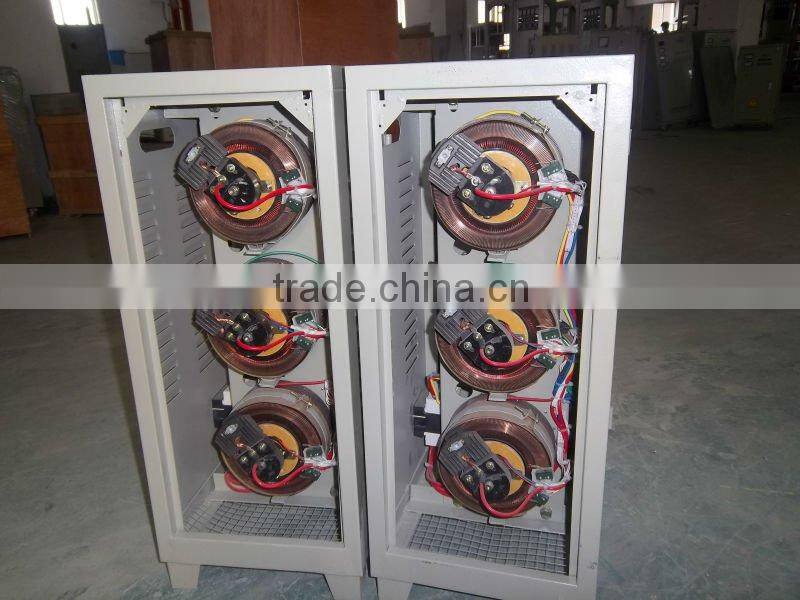

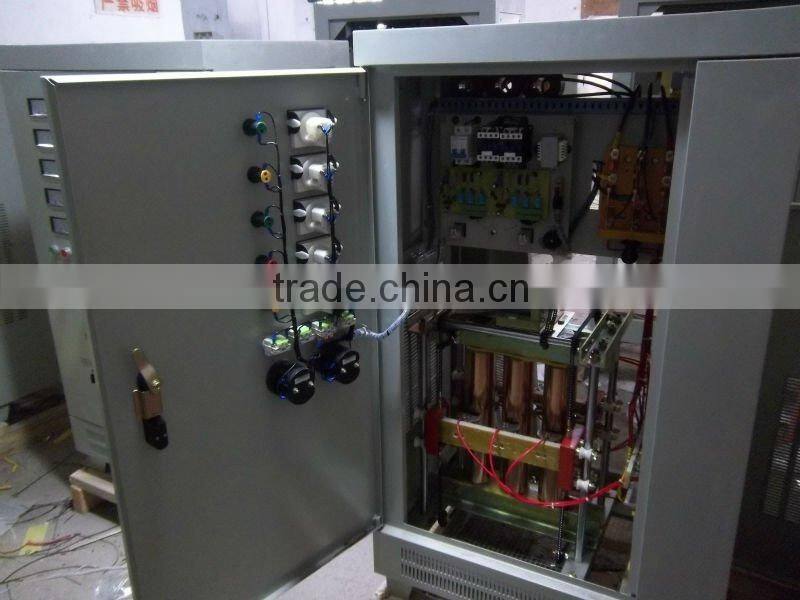

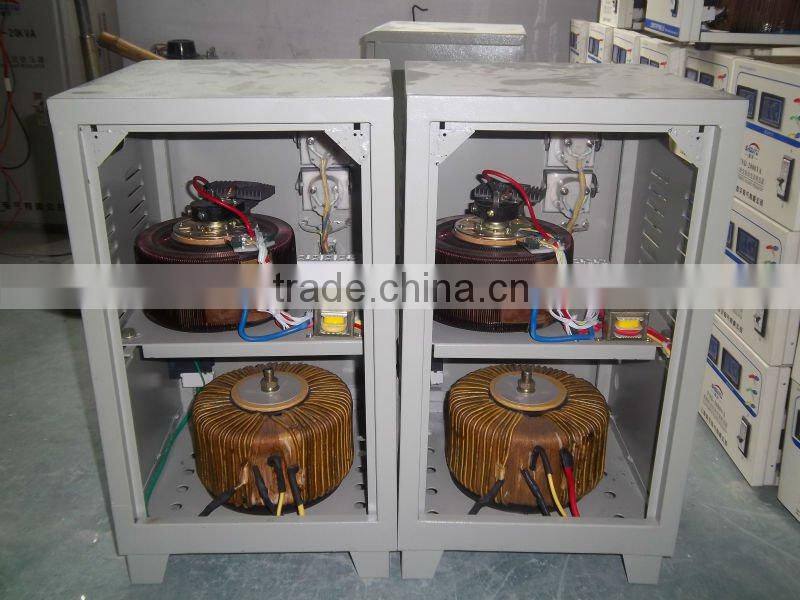

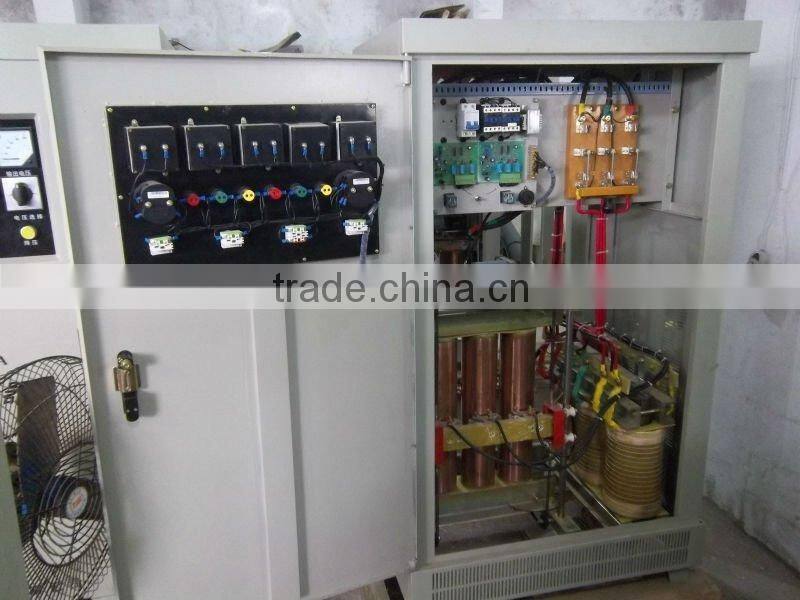

SVC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and
servomotor as well. It has excellent features, such as small waveform distortion, high efficiency,
high power factor, free from the effect or frequency variation of supply. It can be widely used in most
situations where the voltage stabilization is required.
Specification:
| Input voltage | 150V-250V |
| Output voltage | 220V±3%, 110V±3% |
| Frequency | 50/60Hz |
| Response time | < 1sec. (against 10% input voltage deviation) |
| Efficiency | > 90% |
| Ambient temperature | -10~±40°C |
| Relative humidity | < 90% |
| Waveform distortion | Non-lack fidelity waveform |
| Power factor cosφ | 0.8 |
| Insulation resistance | > 5MΩ |
Outline and Package:
| Type | Outline (cm) | Weight (kg) | Qty/CTN | ||
| L | W | H | |||
| SVC-500VA | 18.5 | 15 | 12.5 | 3.8 | 4PCS |
| SVC-1000VA | 21 | 18 | 14.5 | 6 | 4PCS |
| SVC-1500VA | 21 | 18 | 14.5 | 6.5 | 4PCS |
| SVC-2000VA | 27.5 | 23.5 | 18.5 | 9.5 | 1PC |
| SVC-3000VA | 29 | 23 | 22 | 13 | 1PC |
| SVC-5000VA | 45 | 24 | 18.5 | 19 | 1PC |
| SVC-7500VA | 47 | 26 | 22 | 35 | 1PC |
| SVC-10000VA | 47 | 26 | 22 | 37 | 1PC |
| SVC-15000VA | 42 | 38 | 73 | 69 | 1PC |
| SVC-20000VA | 42 | 38 | 73 | 72 | 1PC |
| SVC-30000VA | 42 | 38 | 83 | 90 | 1PC |
| SVC-5kVA | 28 | 30 | 46 | 20 | 1PC (Cabinet) |
| SVC-10kVA | 44 | 32 | 56 | 30 | 1PC (Cabinet) |
