NEMA17 Hybrid Stepping Motor Frame Size 42mm

FOB Price

USD $3 - $5 / Piece

50 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Ningbo/Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Get lowest price Inquiry Basket

You May Like

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	GWIEC	Model Number:	J-4218HB1401
Usage:	Home Appliance, Other	Type:	Other, Gear Motor, Hybrid Step Motor	Torque:	0.31 N.m
Commutation:	Brushless	Continuous Current(A):	0.83

Product Description

Features:

1. High Torque

2. Low Noise

3. Customized Motor

4. Long life span

Specifications:

Step Angle	1.8° (±5%@ full step, no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	≤80K
Ambient Temperature	-20°C to 50°C
Shaft Radial Play	≤0.02mm @ 450g-load
Shaft Axial Play	≤0.02mm @ 450g-load
Max Radial Force	28N @ 20mm from flange
Max Axial Force	10N
Dielectric Strength	500V for one minute
Insulation Resistance	≥100MΩ, 500VDC

Product Description

Model	Holding Torque		Rated Current	Resistance	Inductance	Lead Wire	Rotor Inertia		Weight	Height
	N·m	oz-in	A/Phase	Ω/Phase	mH/Phase	PINS	g.cm2	oz-in2	kg(lb)	mm(inch)
J-4218HB1401	0.31	44	0.83	5.7	5.1	4	36	0.2	0.22(0.49)	33.5(1.32)
J-4218HB1402			0.58	11.6	10.5
J-4218HB1403			0.47	18	16.3
J-4218HB1404			1.28	3	5
J-4218HB2401	0.46	65	0.83	5.7	5.1		55	0.3	0.28(0.62)	39.5(1.56)
J-4218HB2402			0.58	11.6	10.5
J-4218HB2403			0.47	18	16.3
J-4218HB2404			1.28	3	5
J-4218HB3401	0.6	85	0.83	5.7	5.1		73	0.4	0.36(0.77)	47.5(1.87)
J-4218HB3402			0.58	11.6	10.5
J-4218HB3403			0.47	18	16.3
J-4218HB3404			1.28	3	5
J-4218HB4401	0.89	126	0.83	5.7	5.1		110	0.6	0.47(1.04)	59.5(2.34)
J-4218HB4402			0.58	11.6	10.5
J-4218HB4403			0.47	18	16.3
J-4218HB4404			1.28	3	5

Wiring: Connector / PIN

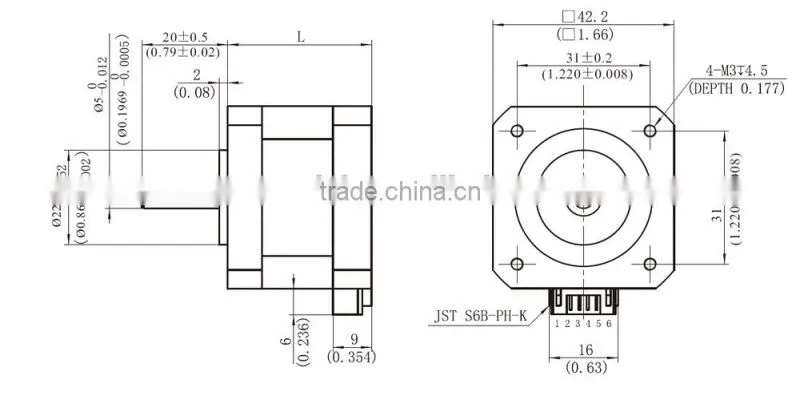

Exterior Diagram

Shaft Type
