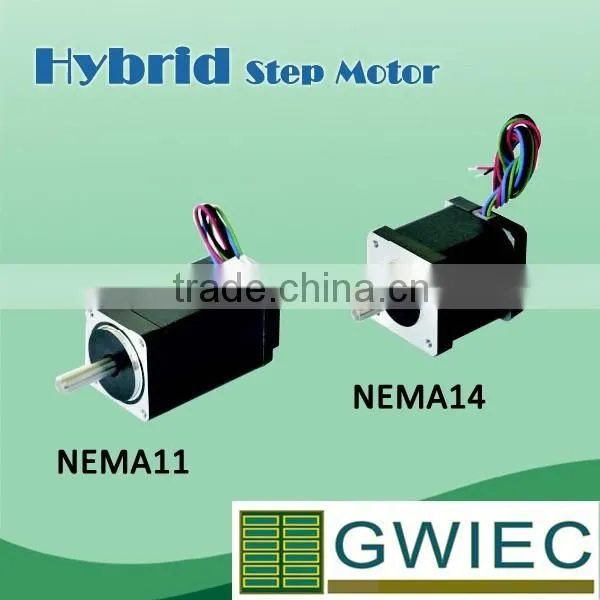

NEMA14 Hybrid Step Motor Frame Size 35mm
USD $3 - $5
/ Piece
50 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
- High speed Micro 385 Brush DC Motor for Electric Appliance Tools 3.7V 24V
- DC motor from Haiyan Long Bo factory for Hydraulic equipments
- traction motor GE761,D77/78,GE752,D29
- Maxon motor
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GWIEC | Model Number: | J-3518HB2403 |
Usage: | Home Appliance, Other | Type: | Other, Gear Motor, Hybrid Step Motor | Torque: | 0.2 N.m |
Commutation: | Brushless | Continuous Current(A): | 0.71 |
Product Description
Features:
1. High Torque
2. Low Noise
3. Customized Motor
4. Long life span
Specifications:
Step Angle | 1.8° (±5%@ full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | ≤80K |
Ambient Temperature | -20°C to 50°C |
Shaft Radial Play | ≤0.02mm @ 450g-load |
Shaft Axial Play | ≤0.02mm @ 450g-load |
Max Radial Force | 28N @ 20mm from flange |
Max Axial Force | 10N |
Dielectric Strength | 500V for one minute |
Insulation Resistance | ≥100MΩ, 500VDC |
Product Description
Model | Holding Torque | Rated Current | Resistance | Inductance | Lead Wire | Rotor Inertia | Weight | Height | ||
N·m | oz-in | A/Phase | Ω/Phase | mH/Phase | PINS | g.cm2 | oz-in2 | kg(lb) | mm(inch) | |
J-3518HB1401 | 0.1 | 14 | 0.83 | 5.7 | 5.1 | 4 | 12 | 0.07 | 0.16(0.35) | 26.5(1.04) |
J-3518HB1402 | 0.58 | 11.6 | 10.5 | |||||||
J-3518HB1403 | 0.47 | 18 | 16.3 | |||||||
J-3518HB2401 | 0.2 | 28 | 1.28 | 3 | 5 | 20 | 0.11 | 0.2(0.44) | 36.5(1.44) | |
J-3518HB2402 | 0.9 | 6.1 | 10 | |||||||
J-3518HB2403 | 0.71 | 9.9 | 16 |
Wiring: Connector / PIN
Exterior Diagram
Shaft Type
