NEMA17 Hybrid Stepper Motor Frame Size 42mm

NEMA17 Hybrid Stepper Motor Frame Size 42mm thumbnail-1
NEMA17 Hybrid Stepper Motor Frame Size 42mm thumbnail-2
NEMA17 Hybrid Stepper Motor Frame Size 42mm photo-1

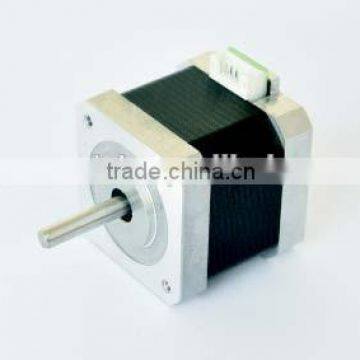

NEMA17 Hybrid Stepper Motor Frame Size 42mm photo-2
US$ 3 - 8 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GWIEC
Model Number:
J-4218HB3401
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GWIEC
Model Number J-4218HB3401
Usage Home Appliance, Other
Type Other, Gear Motor, Hybrid Step Motor
Torque 0.6 N.m
Commutation Brushless
Continuous Current(A) 0.83

Features:



1. High Torque

2. Low Noise

3. Customized Motor

4. Long life span



Specifications:



Step Angle 1.8° (±5%@ full step, no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise ≤80K
Ambient Temperature -20°C to 50°C
Shaft Radial Play ≤0.02mm @ 450g-load
Shaft Axial Play ≤0.02mm @ 450g-load
Max Radial Force 28N @ 20mm from flange
Max Axial Force 10N
Dielectric Strength 500V for one minute
Insulation Resistance ≥100MΩ, 500VDC





Product Description



Model Holding Torque Rated Current Resistance Inductance Lead Wire Rotor Inertia   Weight Height
  N·m oz-in A/Phase Ω/Phase mH/Phase PINS g.cm2 oz-in2 kg(lb) mm(inch)
J-4218HB1401 0.31 44 0.83 5.7 5.1 4 36 0.2 0.22(0.49) 33.5(1.32)
J-4218HB1402 0.58 11.6 10.5
J-4218HB1403 0.47 18 16.3
J-4218HB1404 1.28 3 5
J-4218HB2401 0.46 65 0.83 5.7 5.1 55 0.3 0.28(0.62) 39.5(1.56)
J-4218HB2402 0.58 11.6 10.5
J-4218HB2403 0.47 18 16.3
J-4218HB2404 1.28 3 5
J-4218HB3401 0.6 85 0.83 5.7 5.1 73 0.4 0.36(0.77) 47.5(1.87)
J-4218HB3402 0.58 11.6 10.5
J-4218HB3403 0.47 18 16.3
J-4218HB3404 1.28 3 5
J-4218HB4401 0.89 126 0.83 5.7 5.1 110 0.6 0.47(1.04) 59.5(2.34)
J-4218HB4402 0.58 11.6 10.5
J-4218HB4403 0.47 18 16.3
J-4218HB4404 1.28 3 5





 Wiring: Connector / PIN



Exterior Diagram

NEMA17 Hybrid Stepper Motor Frame Size 42mm



Shaft Type



NEMA17 Hybrid Stepper Motor Frame Size 42mm
