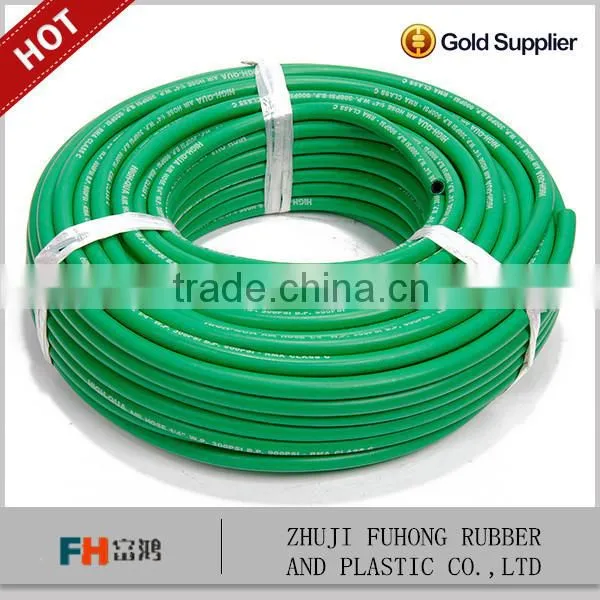

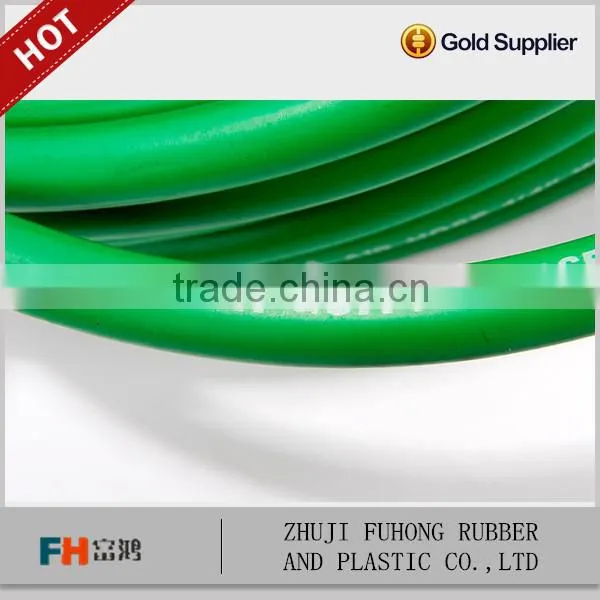

High Pressure Air Hose
- 100000 Meter / Meters per Month
- ningbo or shanghai port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FUHONG | |
| Model Number | 1/4", 5/16", 3/8",1/2",5/8",3/4",1" |
Product Description
Product name: air rubber hose/rubber air hose
1.Material:SBR Natural rubber
2.Size: 1/4", 5/16", 3/8",1/2",5/8",3/4",1"
3.Color: Red, blue, black, green, yellow, same price for different colors
4.Logo: company logo can be imprinted on the rubber hose
5.Working pressure: 300PSI(20Bar)
6.Bursting pressure: 900PSI(60Bar)
7.Structure: Inside bond layer + reinforcing layer ( second reinforcing layer for1/2",5/8",3/4",1")
8.outside bond layer; outside surface is mill finish, reinforcing layer is braid fiber with high
9.retractility,weather and ozone,abrasion resistant
10.Application: wide rang service in general industrial service,pneumatic tools,and mobils shop
11.Temperature:-40`C~+90`C
high pressure air rubber hose/air hose
| size | I.D | O.D | line layer | W.P | B.P | Standard length | net weight | measure-ment |
| inch | mm | mm | bar | bar | m/roll | kg/roll | m3/roll | |
| 1/4 | 6 | 13 | 1 | 20 | 60 | 100 | 18 | 0.032 |
| 5/16 | 8 | 15 | 1 | 20 | 60 | 100 | 22 | 0.035 |
| 3/8 | 10 | 17 | 1 | 20 | 60 | 100 | 24 | 0.043 |
| 1/2 | 12.5 | 21 | 2 | 20 | 60 | 100 | 43 | 0.085 |
| 5/8 | 16 | 25 | 2 | 20 | 60 | 100 | 48 | 0.150 |
| 3/4 | 19 | 28 | 2 | 20 | 60 | 100 | 58 | 0.170 |
| 1 | 25 | 35 | 2 | 20 | 60 | 50 | 42 | 0.1 |
packing:can use pvc film, paper card,nylon bag,shrink wrapped ,carton box, or as your requirement
Please feel free to contact us for more details
Trademanager:cn204109000
Tel:0575-87061613
Fax:0575-87618766
